System Specifications

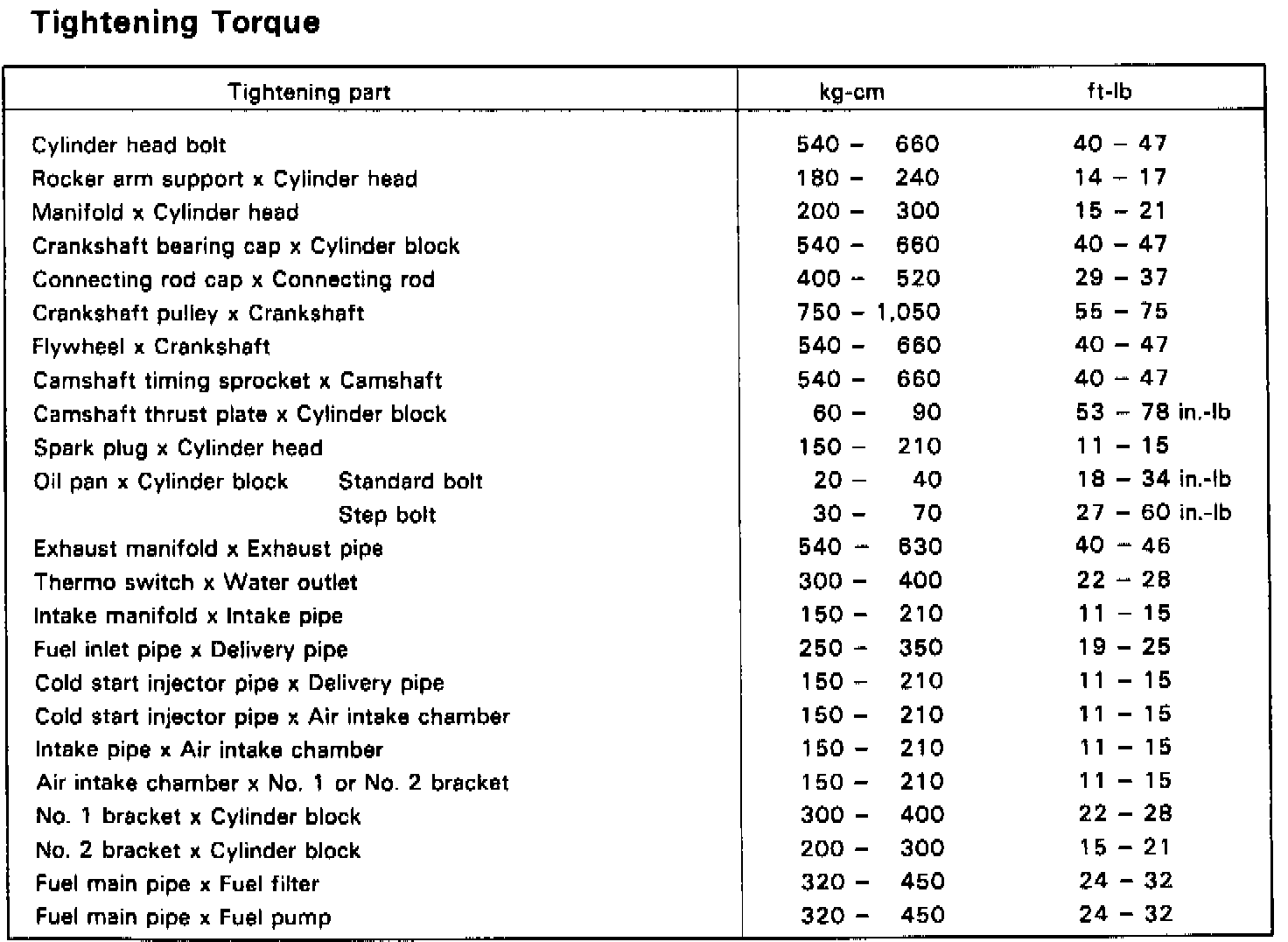

Torque Chart:

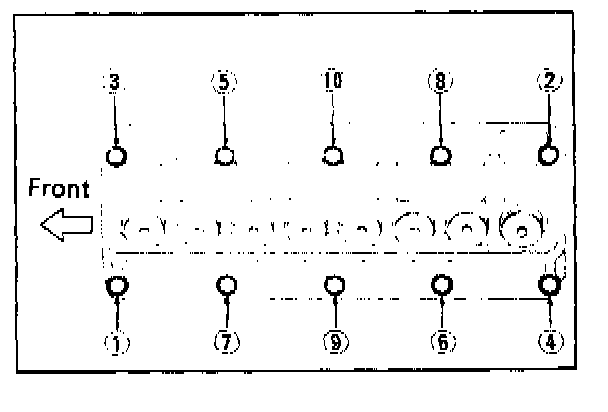

Head Loosening Sequence:

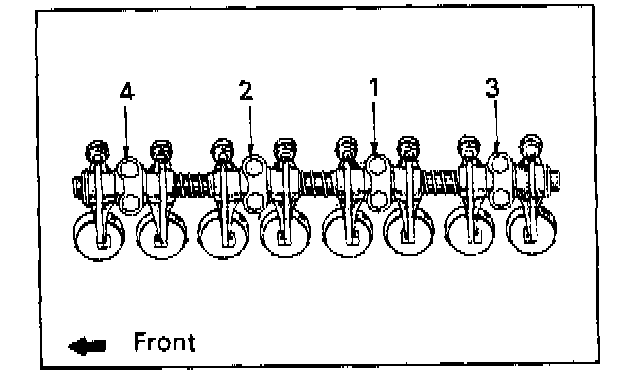

Rocker Arm Tightening Sequence:

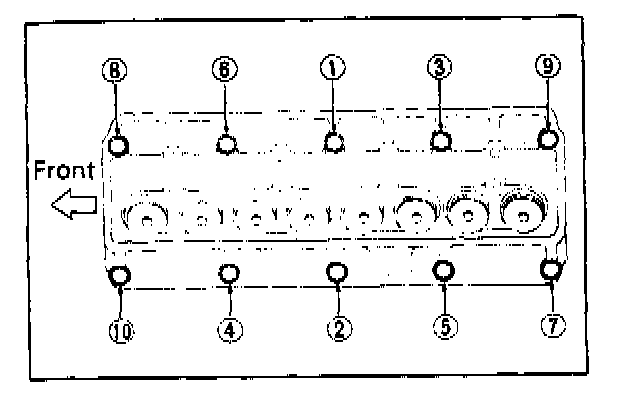

Head Tightening Sequence:






Main Bearing Torque Sequence:

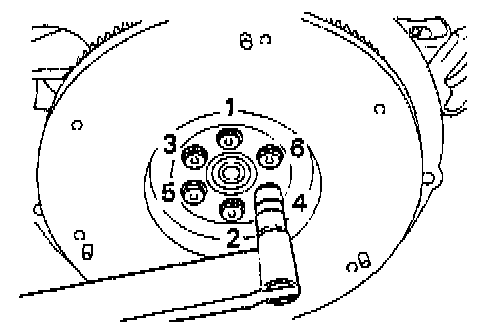

Flywheel Torque Sequence - Tighten To Specified Torque In 2 Or 3 Passes:
