M/T Technical Data

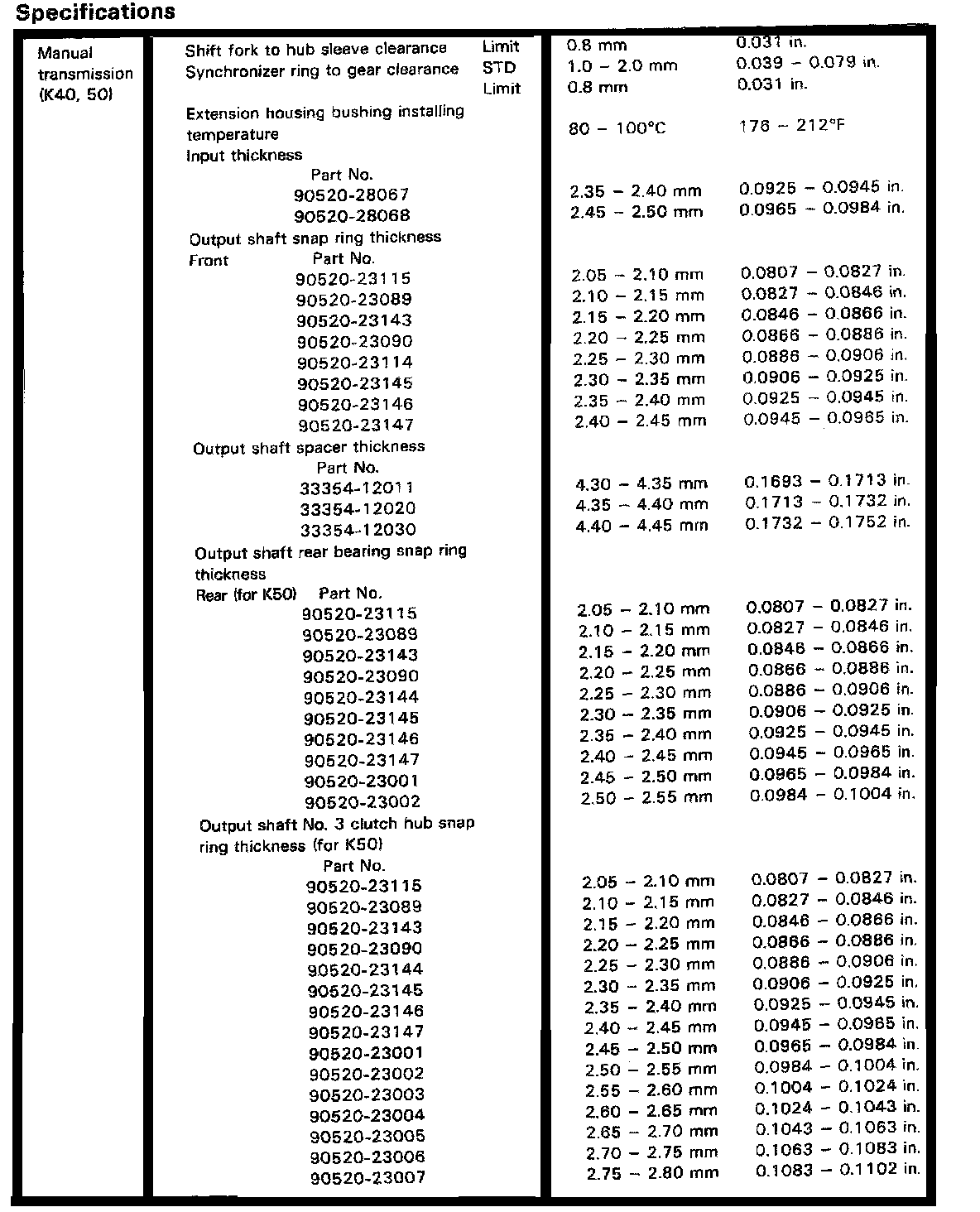

K40 4-spd/K50 5-spd M/T, Clutch Clearance:

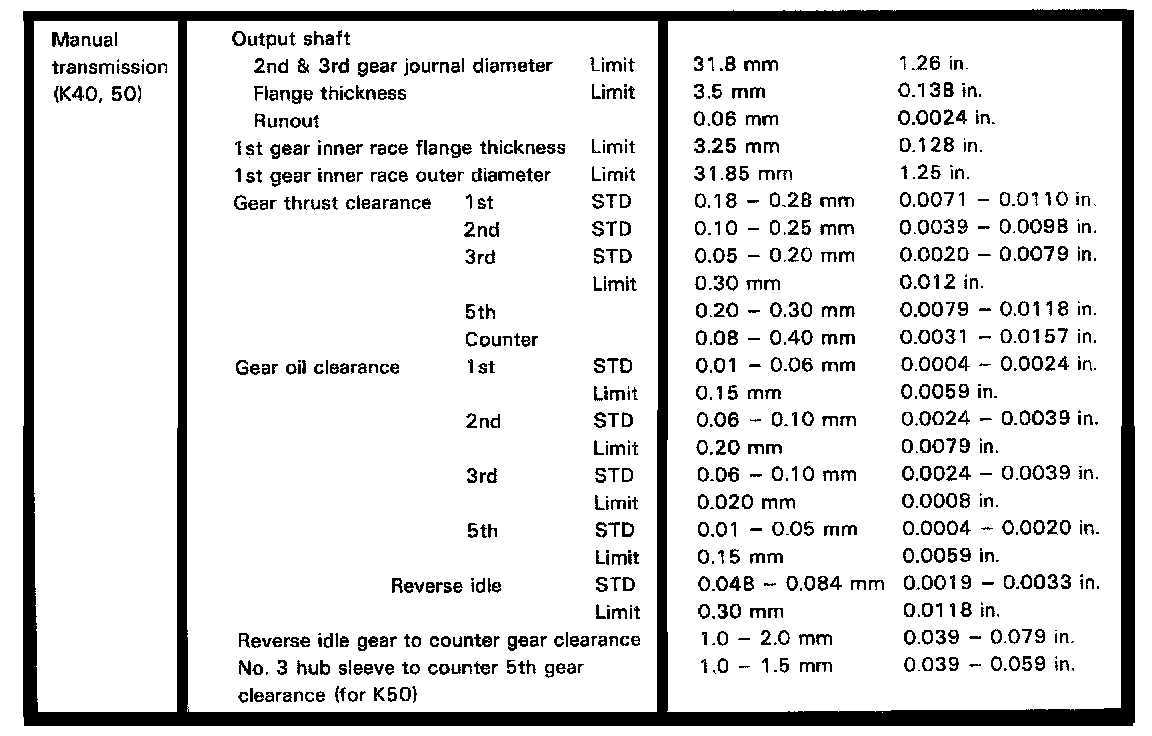

K40 4-spd/K50 5-spd M/T, Transmission Clearances:





K40 4-spd/K50 5-spd M/T, Transmission Clearances:





K40 4-spd/K50 5-spd M/T, Counter Shaft Thickness:
