Control Module HVAC: Locations

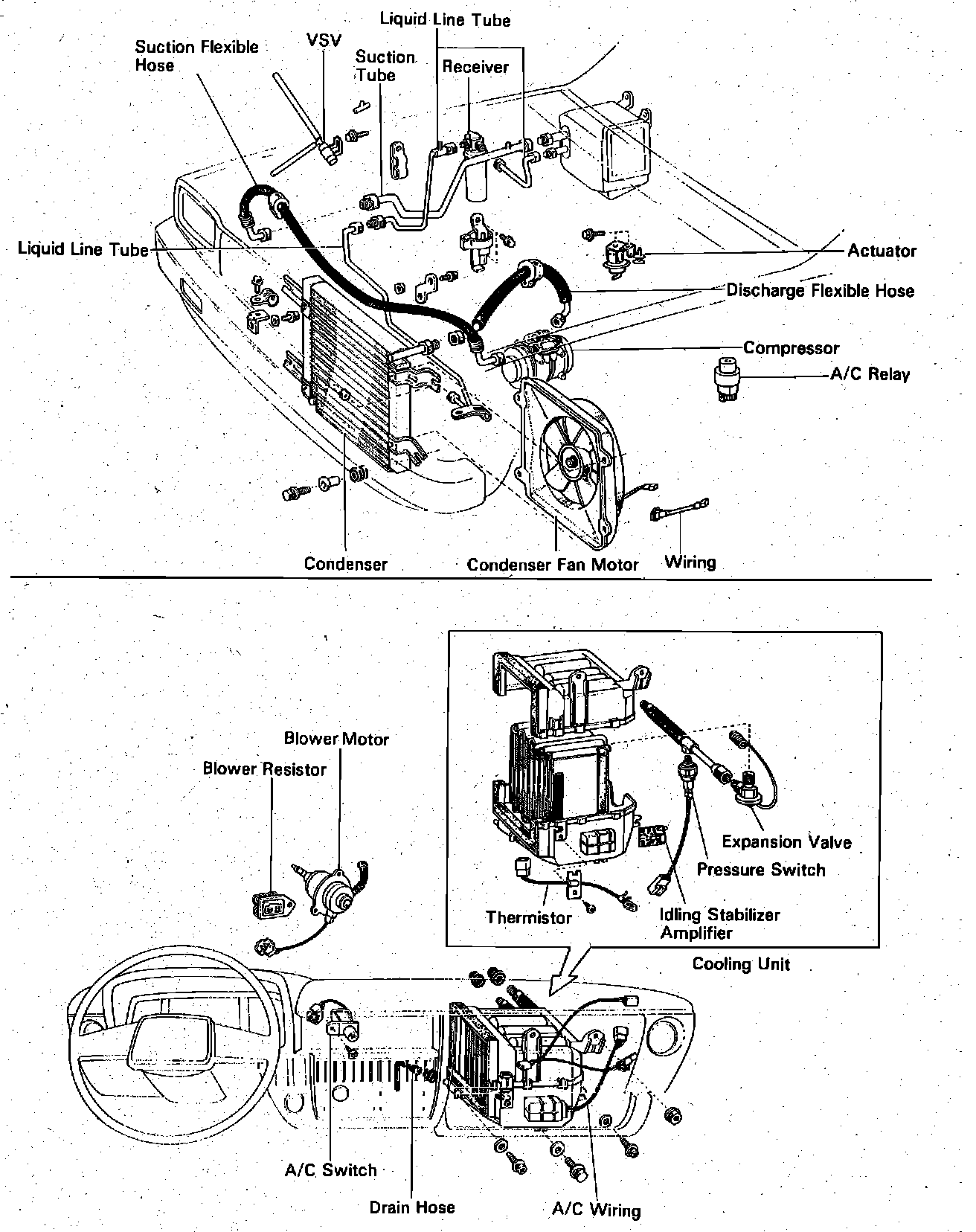

A/C System Component Locations.:

Behind RH Side Of I/P, At Cooling Unit

Applicable to: 1981-82 Models
