A55 3-SPD A/T

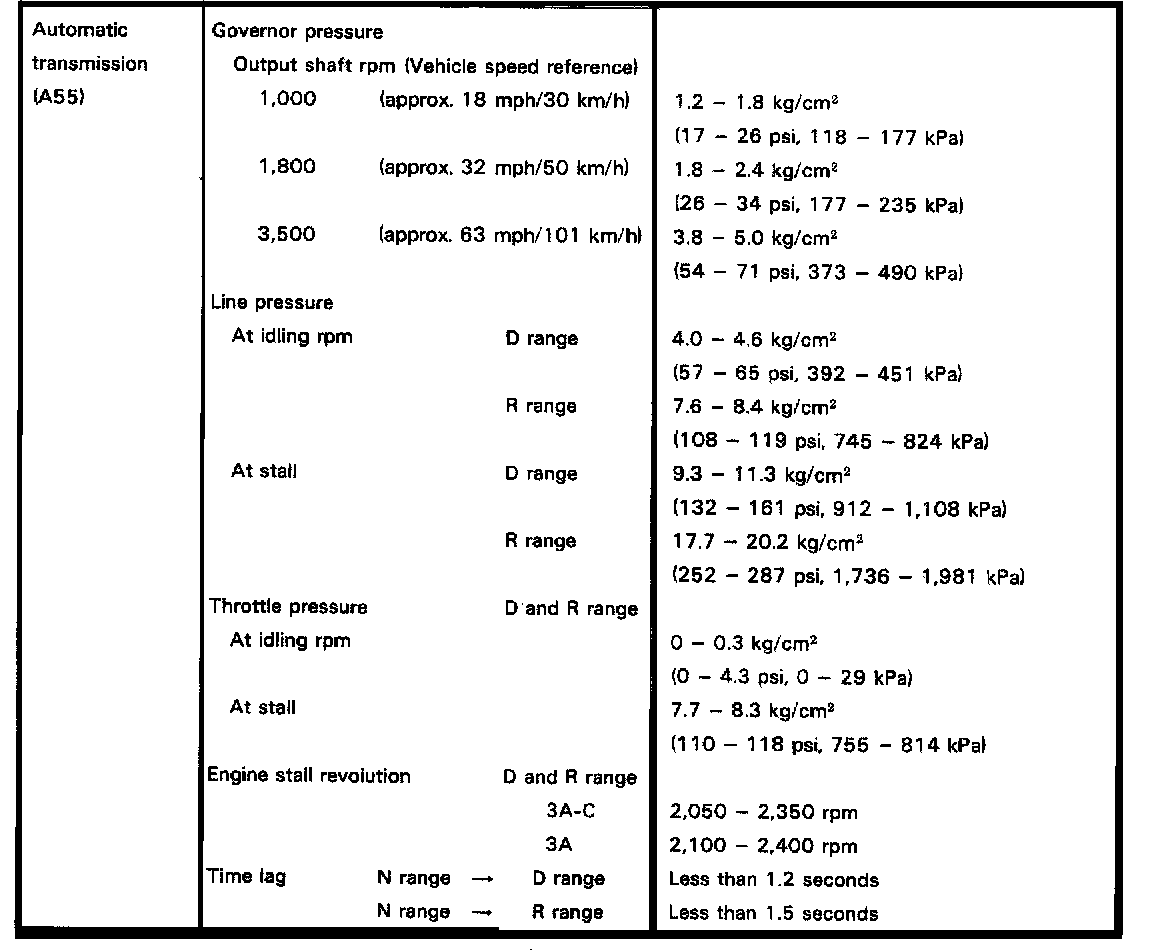

A55 3-spd A/T, Line Pressure:

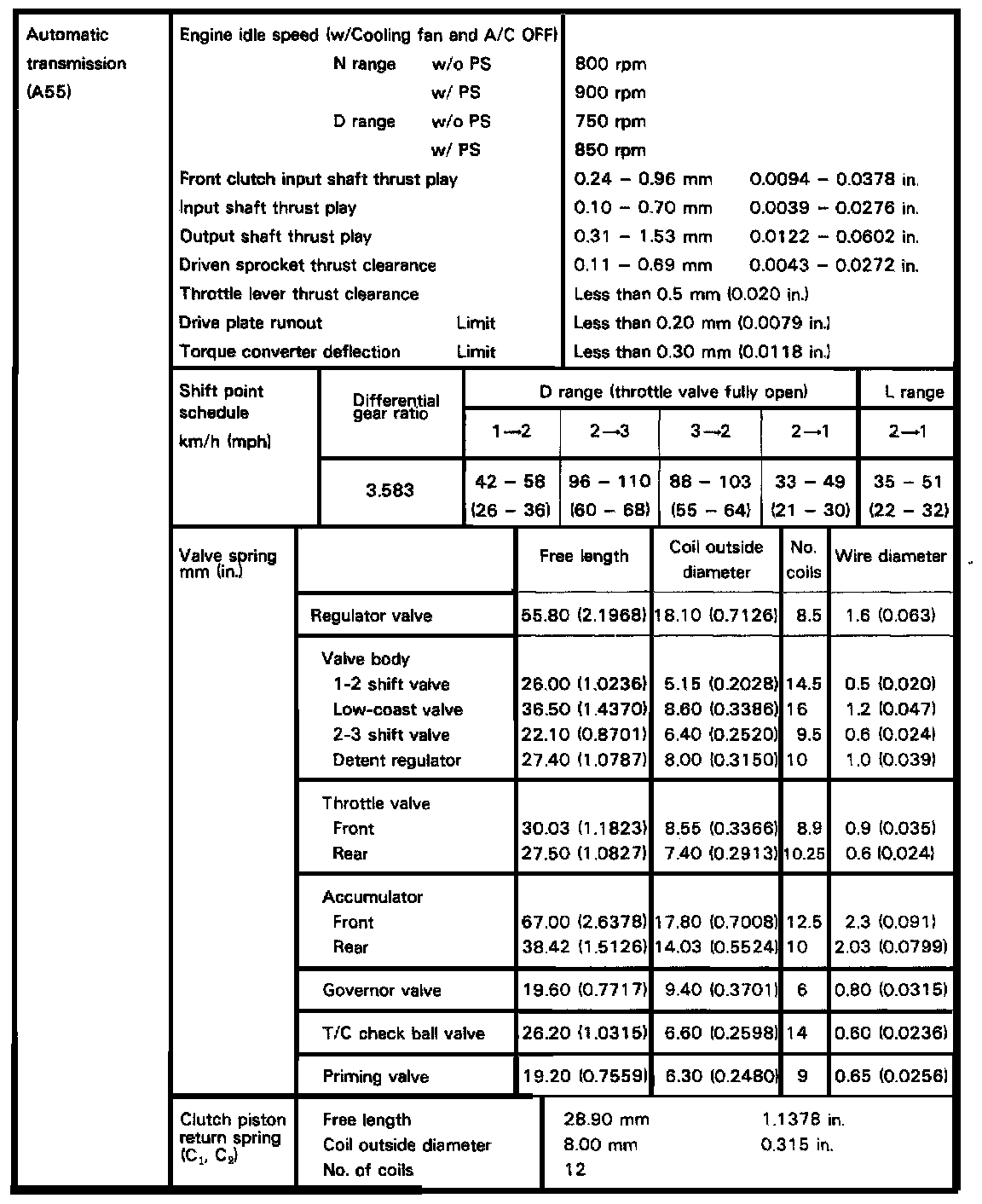

A55 3-spd A/T, Shift Point/Spring Diameters:

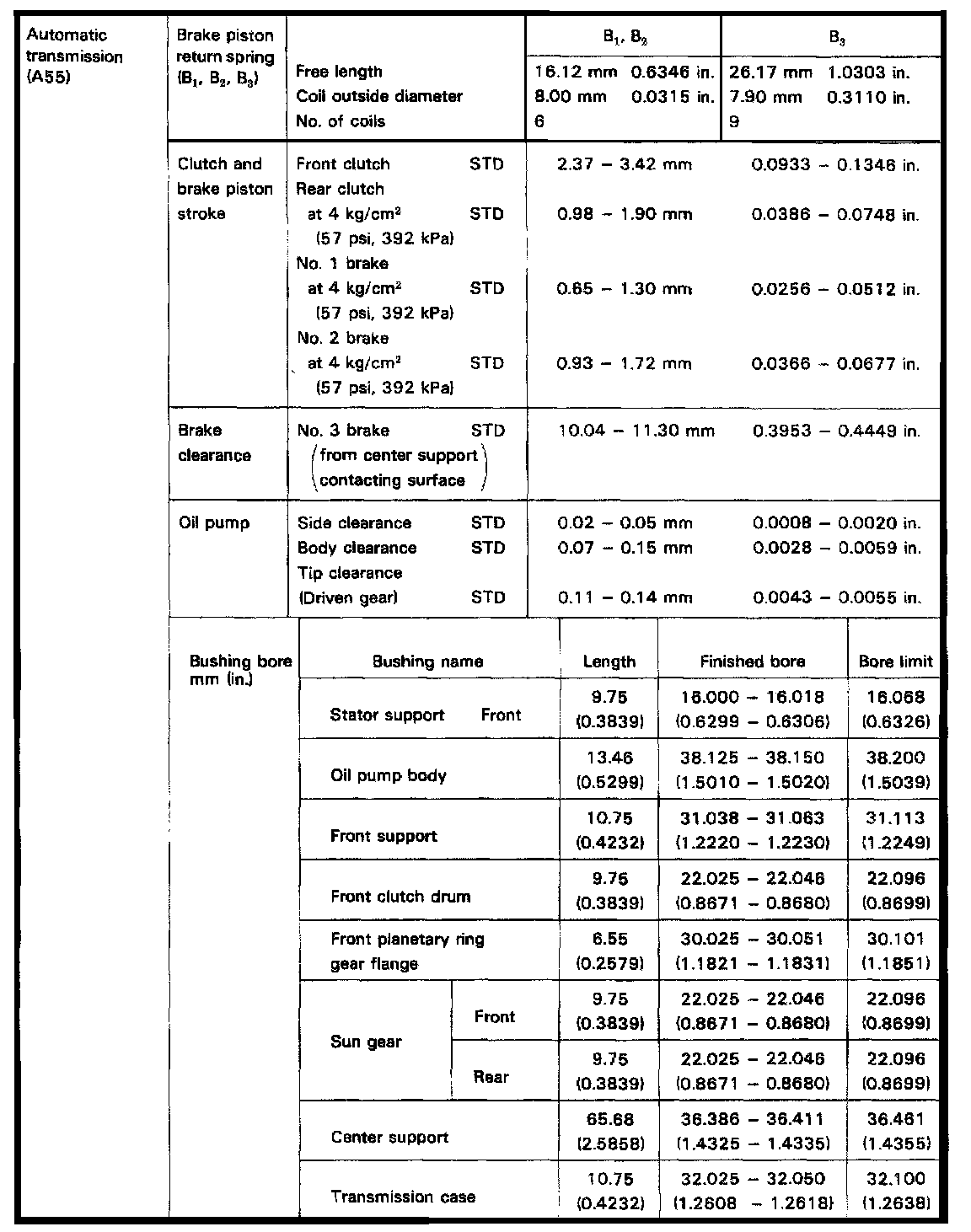

A55 3-spd A/T, Brake/Clutch Clearance:

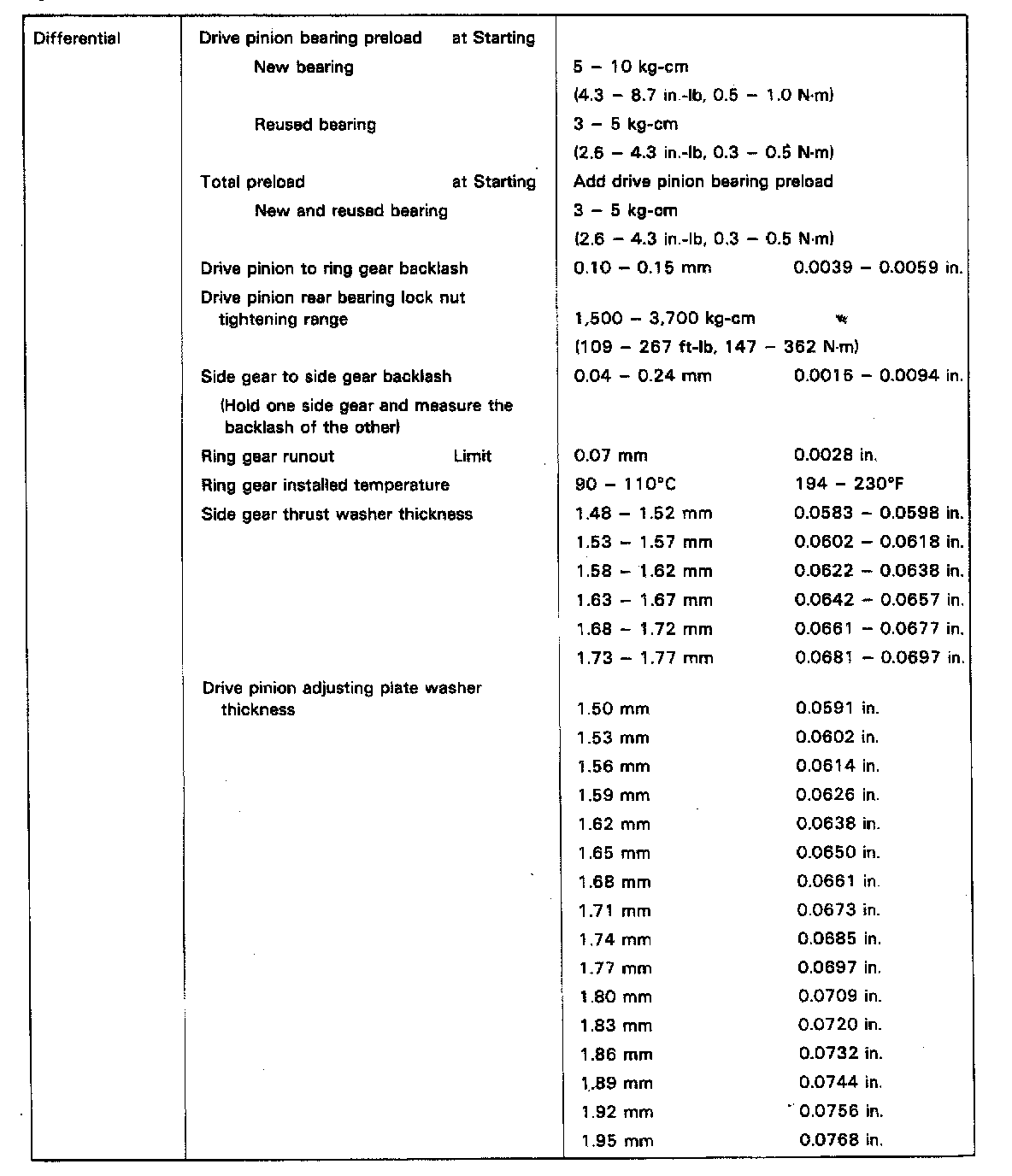

A55 3-spd A/T, Differential Torque/Clearances:




A55 3-spd A/T, Differential Clearances Cont.:
