System Specifications

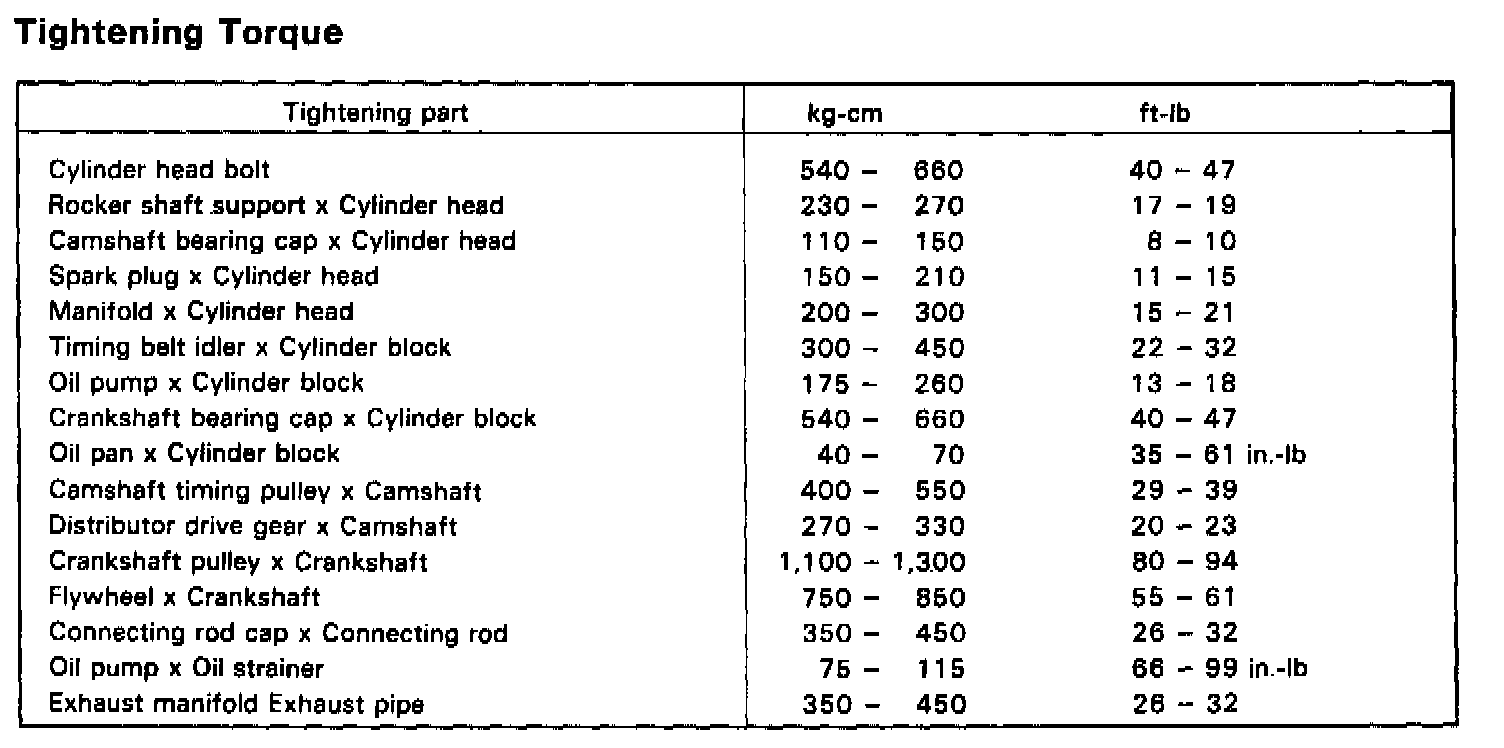

Torque Chart:

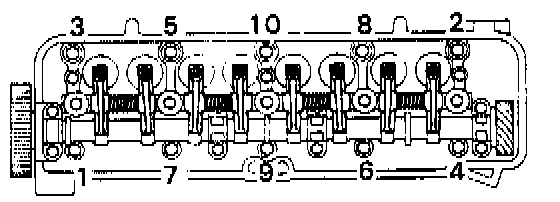

Head Loosening Sequence:

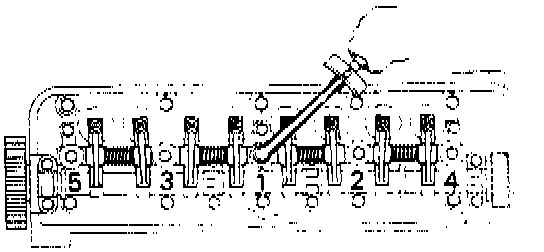

Rocker Arm Removal Sequence:

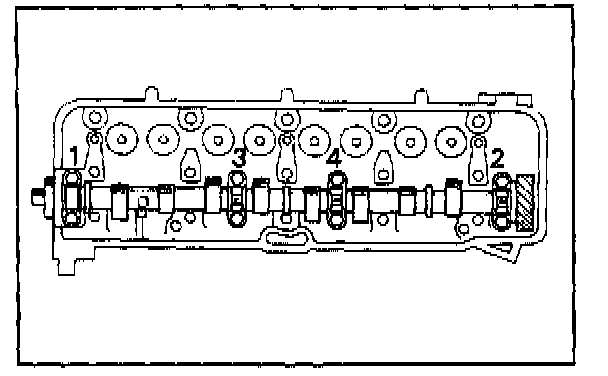

Cam Bearing Loosening Sequence:

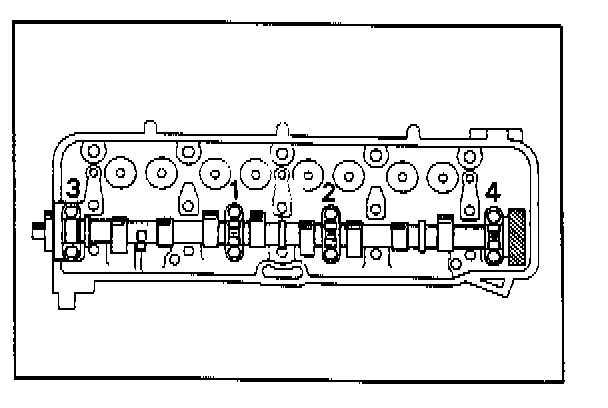

Cam Bearing Tightening Sequence:

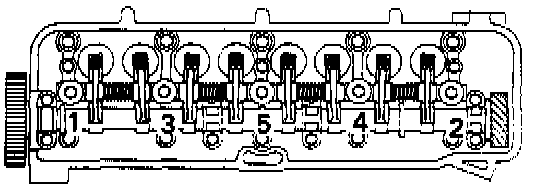

Rocker Arm Tightening Sequence:

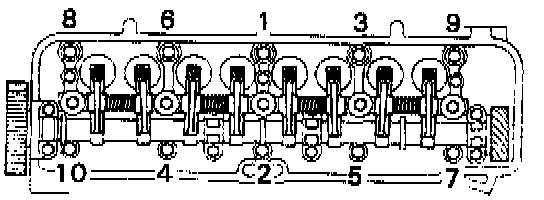

Head Tightening Sequence:

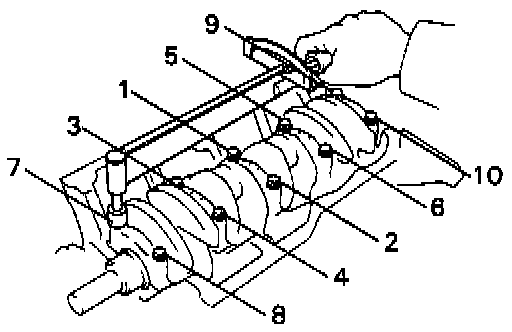

Main Bearing Torque Sequence:
