Alternator Testing Connections

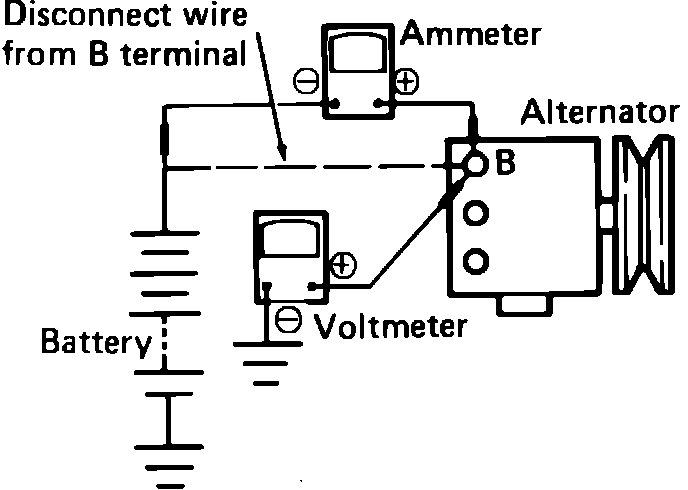

Fig. 1 Connecting voltmeter & ammeter to charging circuit:

The following tests should be conducted with an alternator volt-amp tester, connected in accordance with manufacturer's instructions. If an alternator volt-amp tester is not available, connect a voltmeter and ammeter to the charging circuit as shown in Fig. 1.
