Ignition Switch: Service and Repair

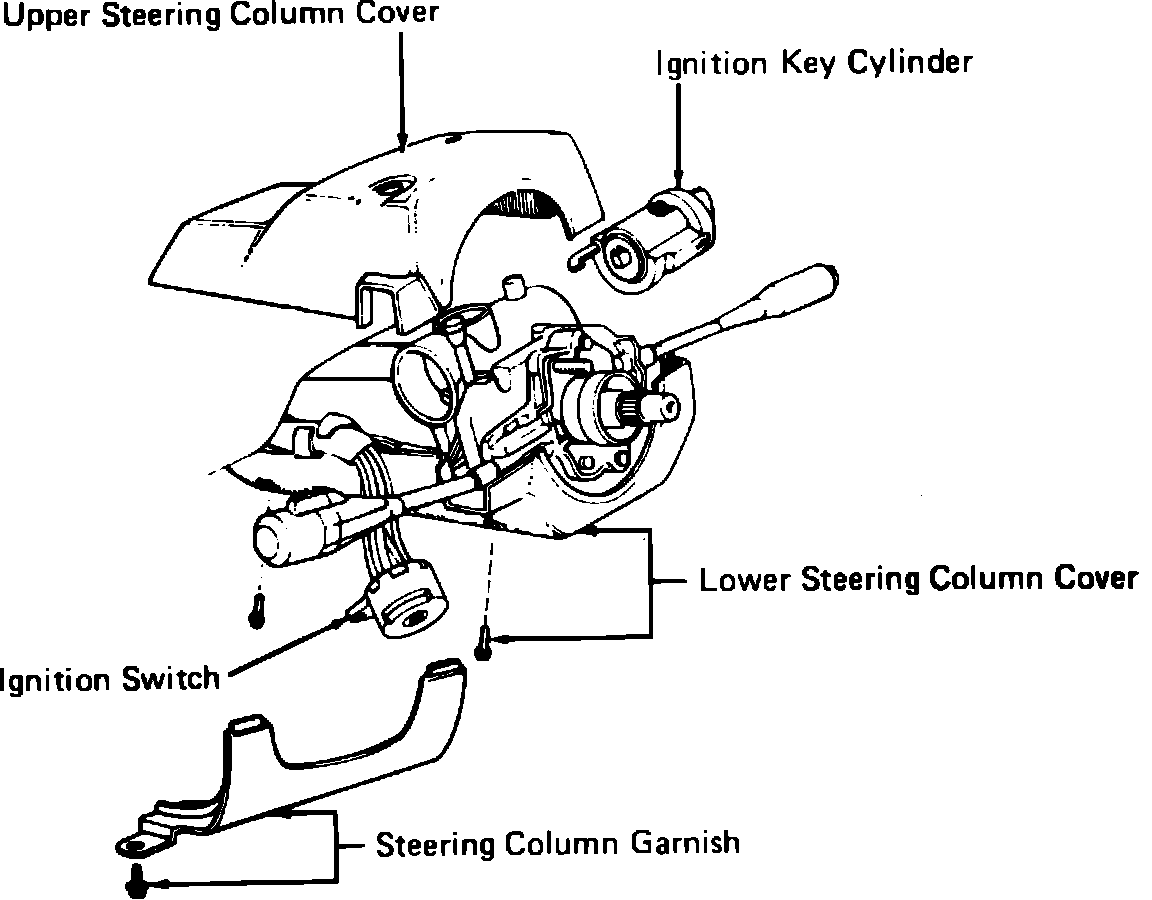

Fig. 7 Steering column & ignition switch assembly. Exc. 1984 Corolla:

1. Disconnect battery ground cable.
2. Remove steering wheel, if necessary, steering column garnish, if equipped, upper and lower covers, Fig. 7. On Starlet models, remove upper cover.



3. Disconnect electrical connectors from ignition switch.
4. Turn ignition key to ACC position and remove ignition key cylinder.
5. Remove screw and ignition switch.
6. Reverse procedure to install.
