Clearing Trouble Codes

After any repairs are performed, clear ECU memory of all stored trouble codes. To clear memory, turn ignition off and remove appropriate fuse from fuse panel for 30 seconds. See Fig 1. The lower the ambient (outside) temperature, the longer the fuse (fusible link) must be left out. Replace fuse or fusible link. Exit diagnostic mode.

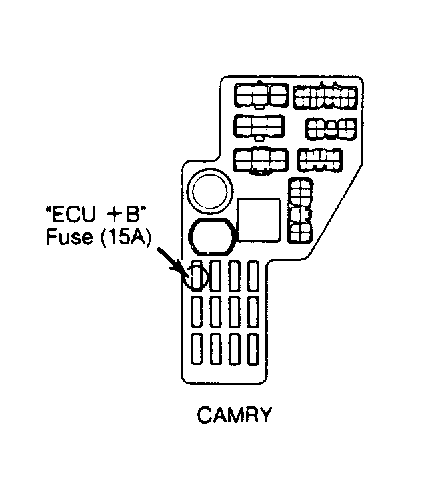

Fig 1: Clearing Trouble Codes From ECU Memory
G74102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
