Miscellaneous Components

MISCELLANEOUS COMPONENTS LOCATION

Component Location

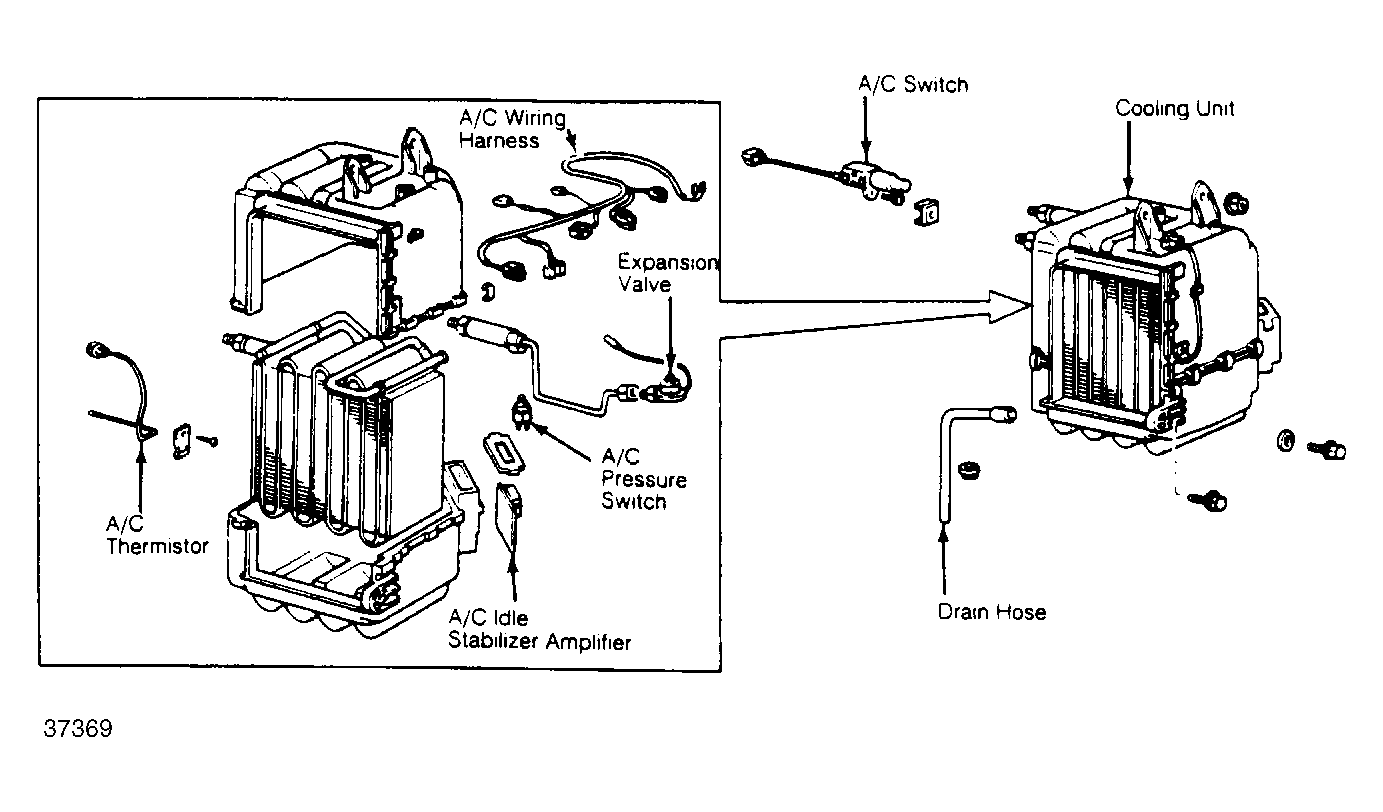

A/C Idle Stabilizer Amplifier Attached to bottom of cooling unit, under dash. See Figure.
A/C Thermistor On cooling unit, under dash. See Figure.

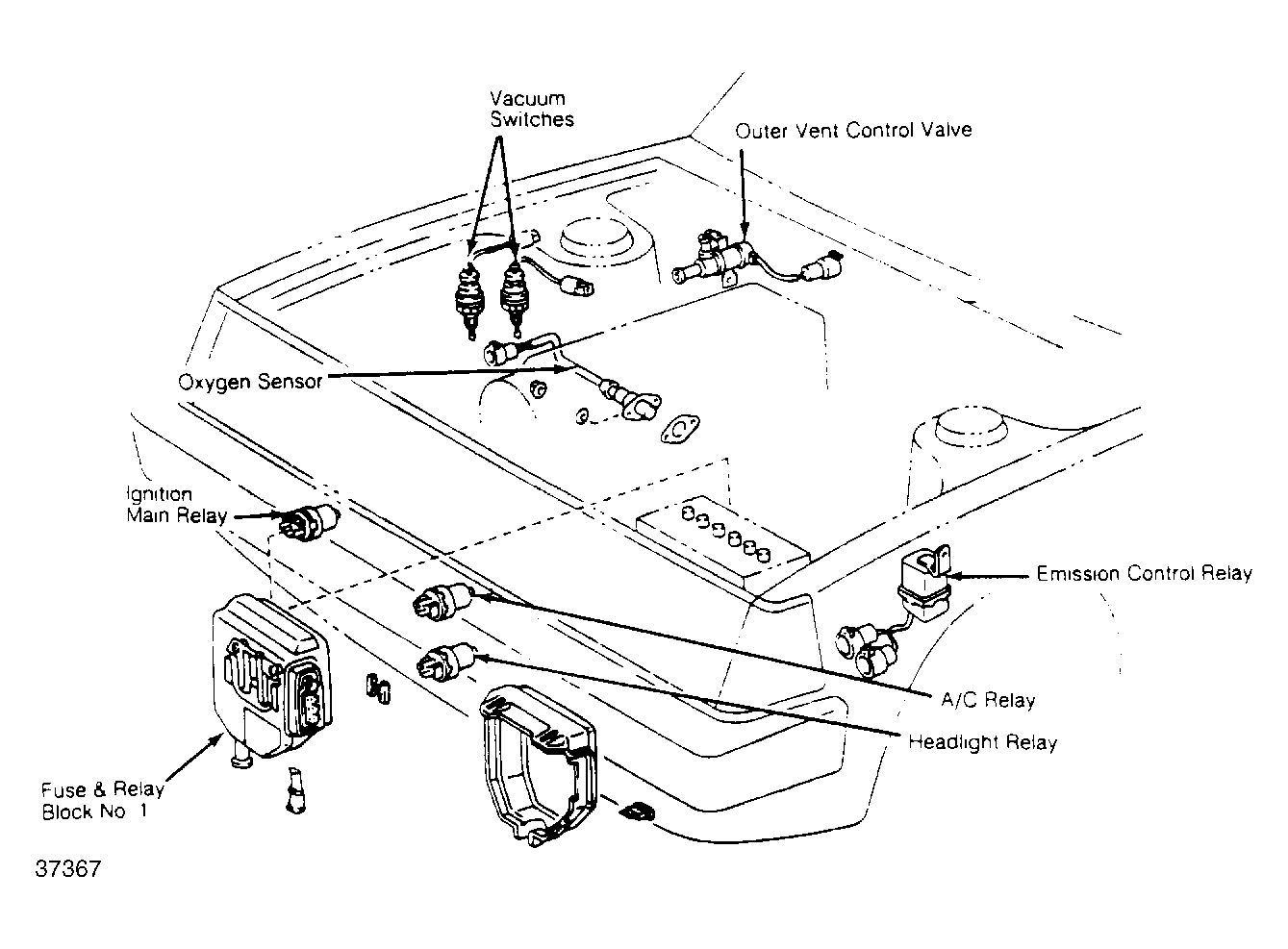

Fuse & Relay Block No. 1 Behind battery. See Figure.
Fuse & Relay Block No. 2 Behind left kick panel. See Figure.
Fusible Links At battery positive terminal.
Hazard/Turn Signal Flasher Under left side of dash. See Figure.
