Engine Will Not Stop

Disconnect fuel cut solenoid connector. Check for foreign material in fuel cut solenoid or faulty ignition switch.

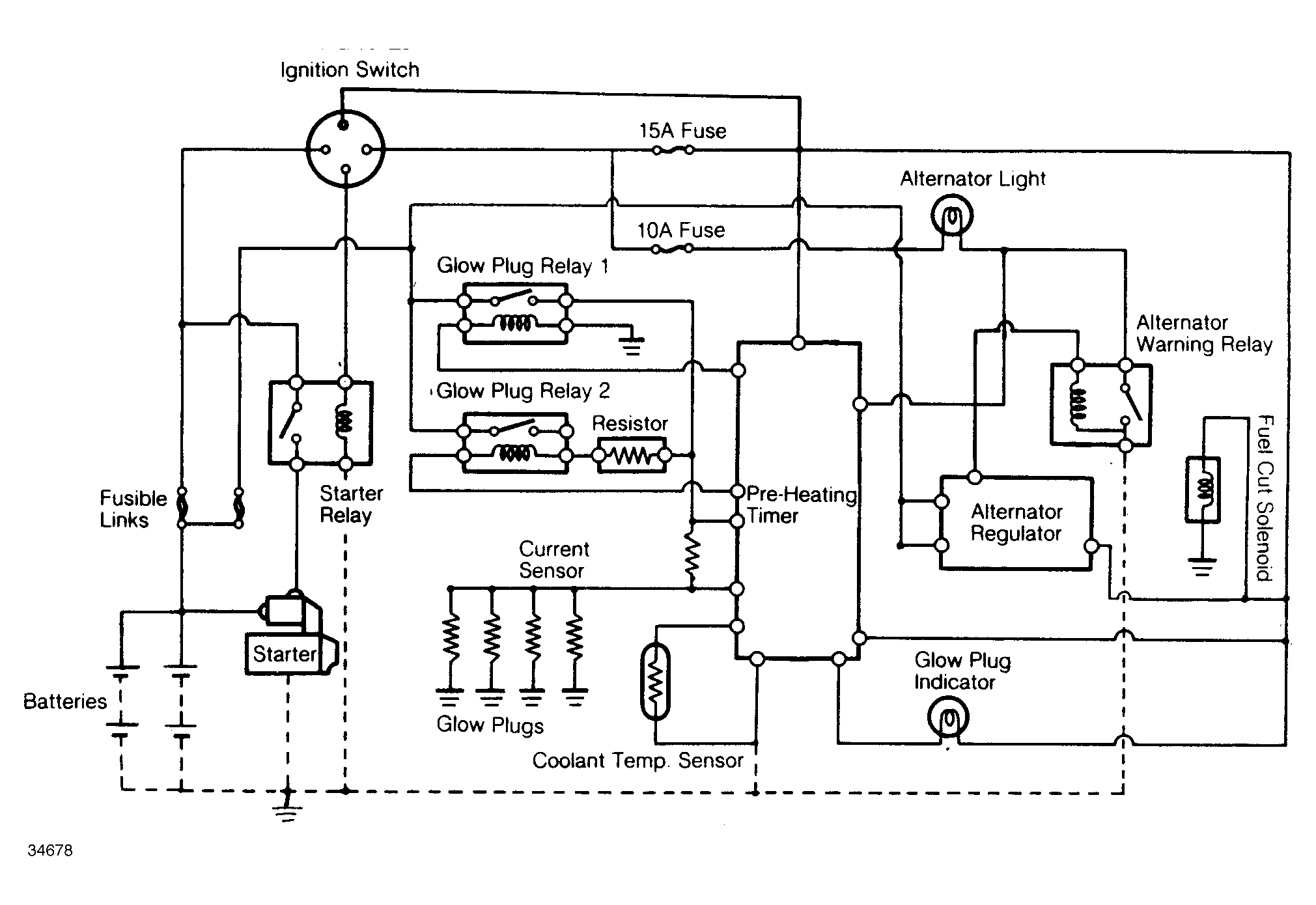

Fig 1: Glow Plug System Wiring Diagram
G34678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
