Control Units

CONTROL UNITS LOCATION

Component Location

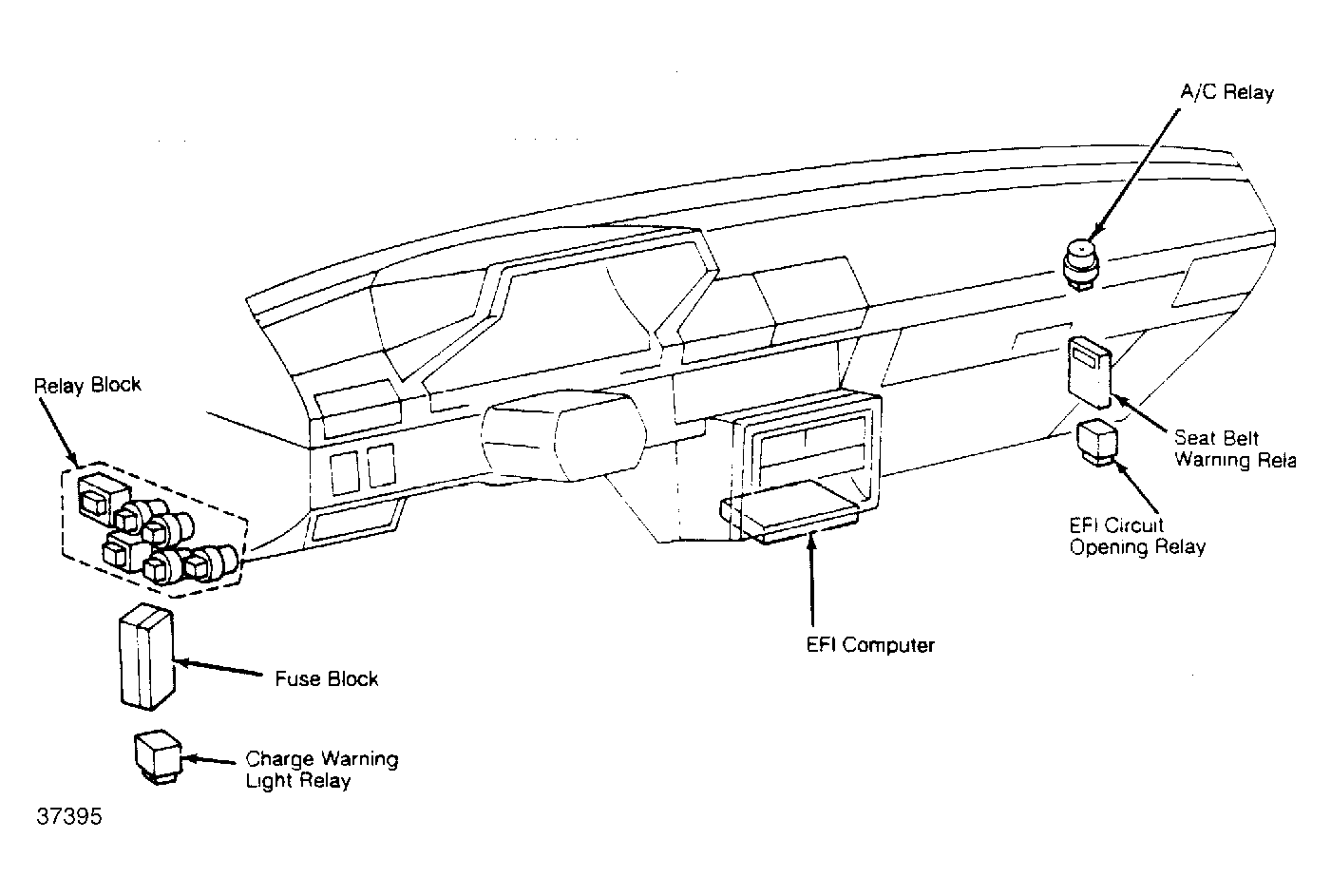

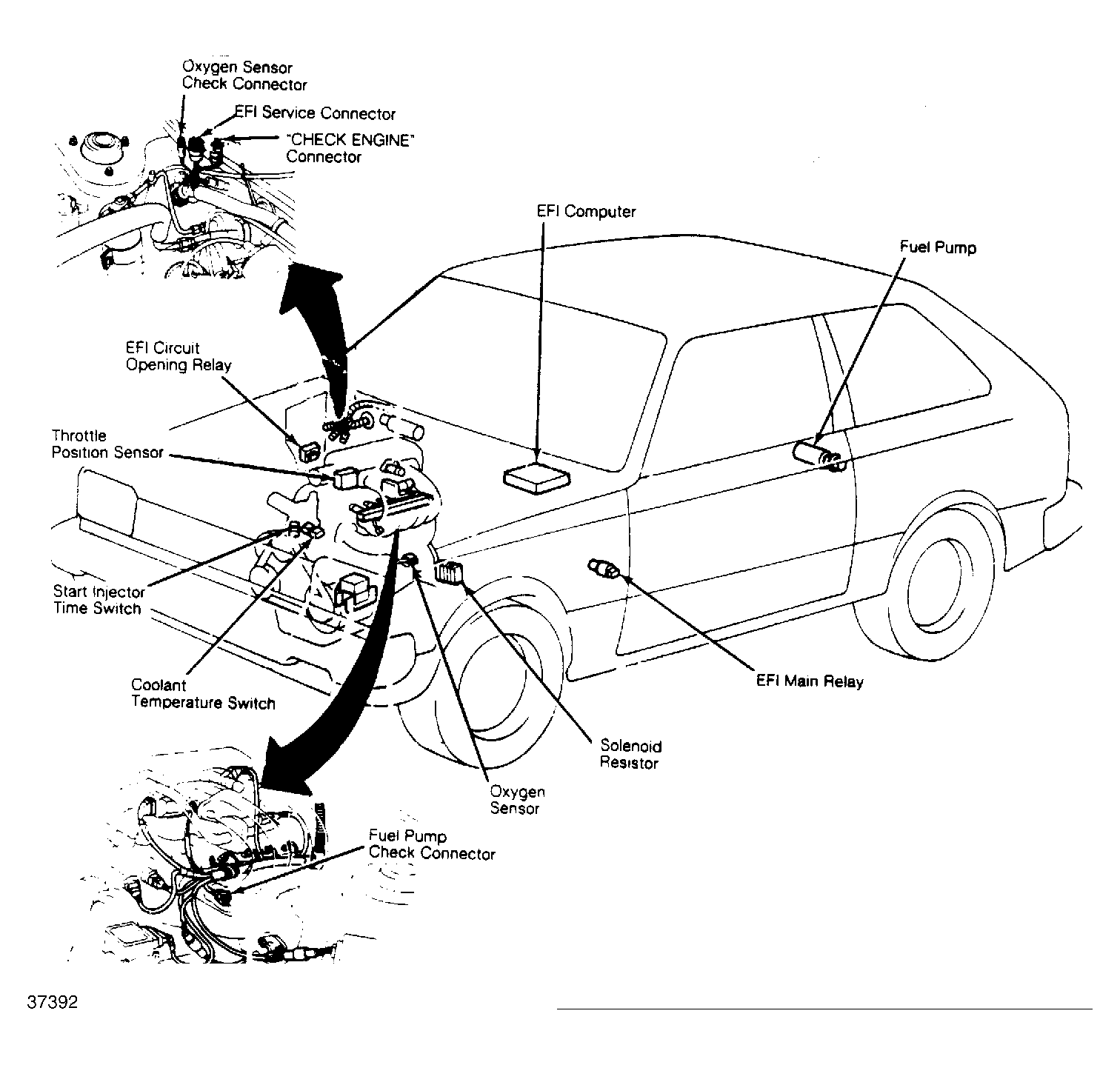

EFI Computer Under center of dash, in front of center console. See Figure & Figure .
