Starter - Direct Drive: Overhaul: Reassembly
- Clean all parts. Apply coat of multipurpose grease to sliding surface of armature shaft splines, starter clutch bushing, pinion lever and moving stud.

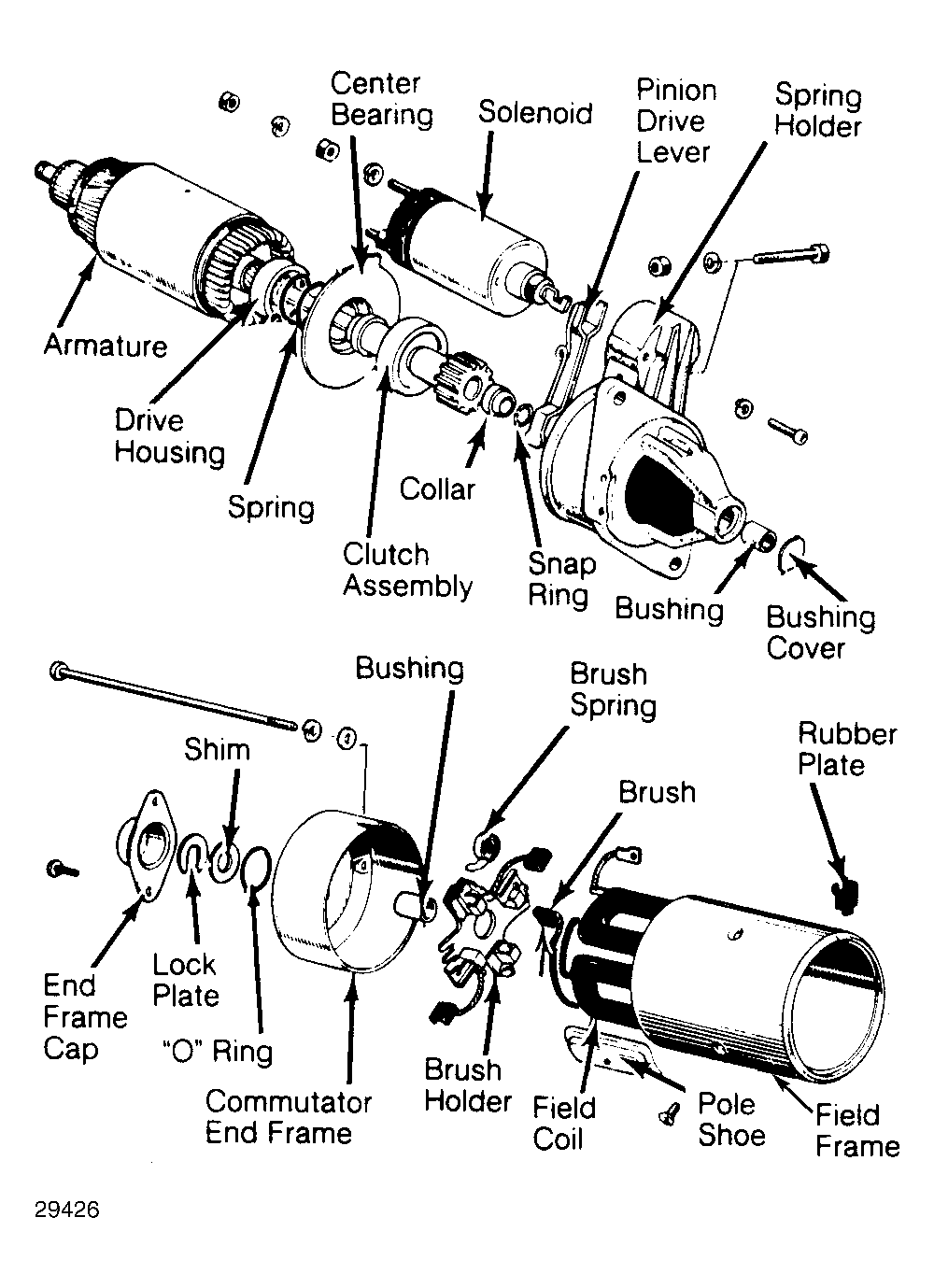

- Reassemble in reverse order of disassembly. After completing reassembly, if clearance between pinion gear and stop collar is not .004-.160" (.10-4.0 mm), adjust by lengthening or shortening plunger shaft.
