Brake Light Switch Check

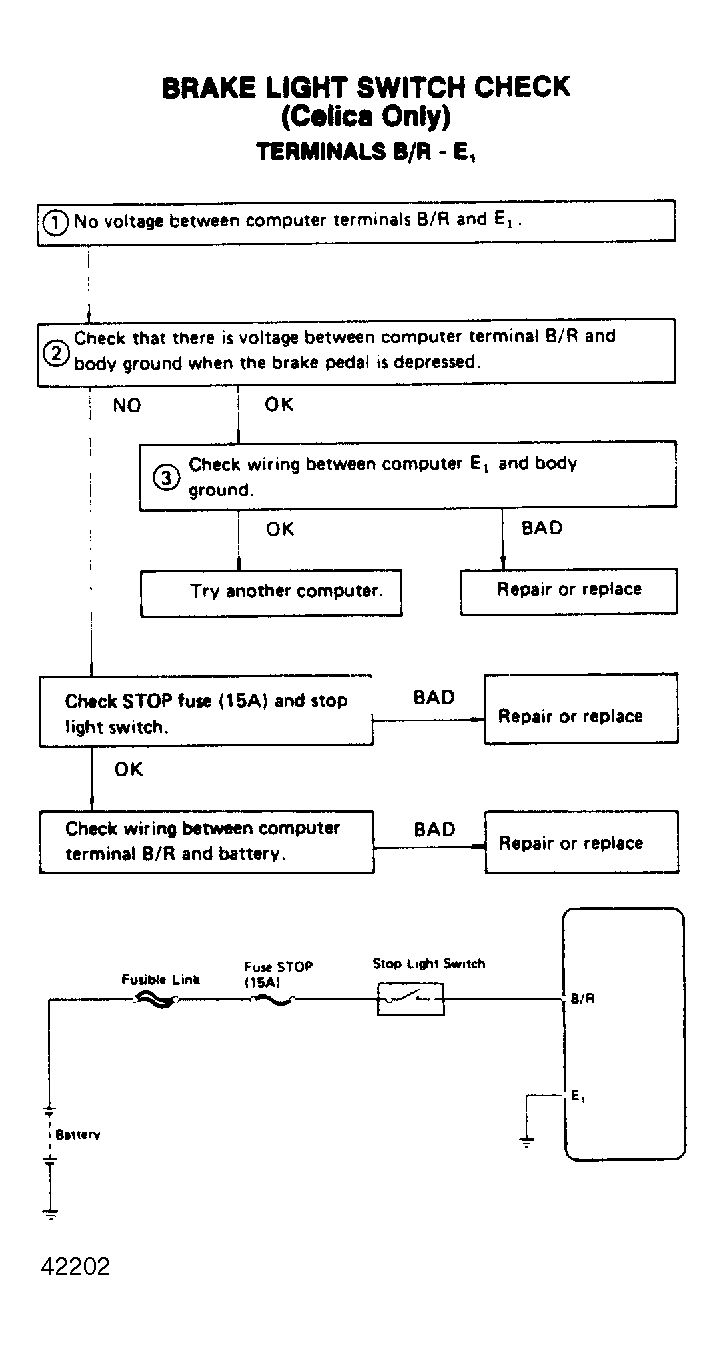

Fig 1: Brake Light Switch Check, Terminals B/R - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
