ECS Trouble Code Identification: Notes

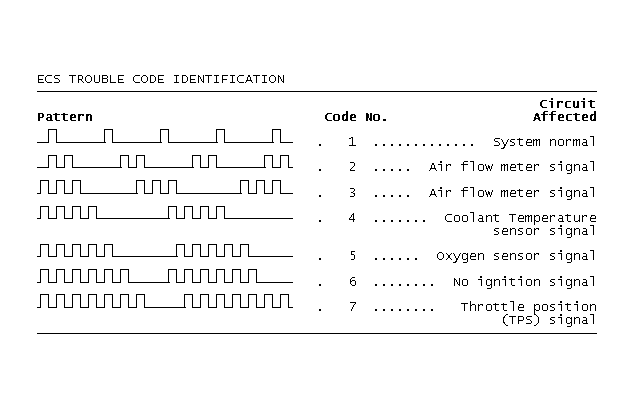

Fig 1: ECS Trouble Code Identification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
