Electronic Control Unit (Ecu)

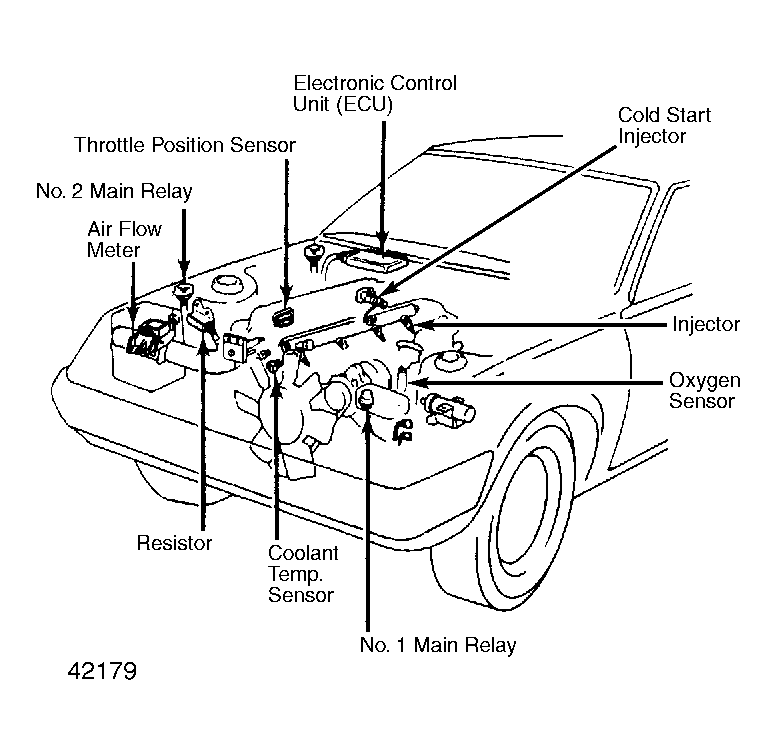

The ECU is behind glove compartment. The ECU controls all functions of the ECS. The ECU consists of a printed circuit board enclosed within a metal box. The ECU receives signals from the data sensors and switches. These signals are processed by the ECU for controlling various engine functions.
NOTE:
The ECU of the ECS is not interchangeable with the ECU of the ECT system.
