Diagnostic Code Output

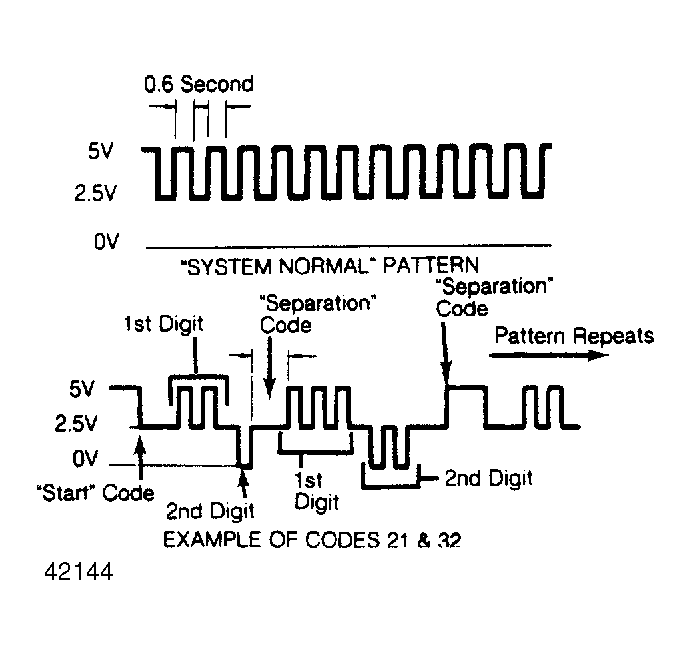

- After entering diagnostic mode, the voltmeter needle should indicate 5 volts for 2 seconds; then 2.5 volts for 2 seconds. This code ("start code") signifies the start of diagnostic code output. See Fig 1.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- If no trouble codes are stored in ECU memory, the "start code" will be displayed, followed by the "system normal" code. The "system normal" code consists of a series of needle fluctuations between 5 volts and 2.5 volts at 0.6 second intervals.
- Trouble codes are displayed in the following manner: After the "start code", the voltmeter needle will deflect a number of times between 2.5 volts and 5 volts at 0.6 second intervals. This is the first digit of the trouble code.
- The needle will then indicate 2.5 volts for 2 seconds ("separator code"). Next, the needle will fluctuate between 2.5 volts and 0 volt at 0.6 second intervals. This is the second digit of the trouble code.
- Trouble codes will be displayed from lowest to highest numbered code. Output of the diagnostic codes will continue as long as the diagnostic mode is activated. A "separator code" follows display of first and second digit of trouble codes, and separates each trouble code. A "start code" will be displayed at the beginning of each pass through the output.
