Trouble Code 14 - IGNITOR & Circuit

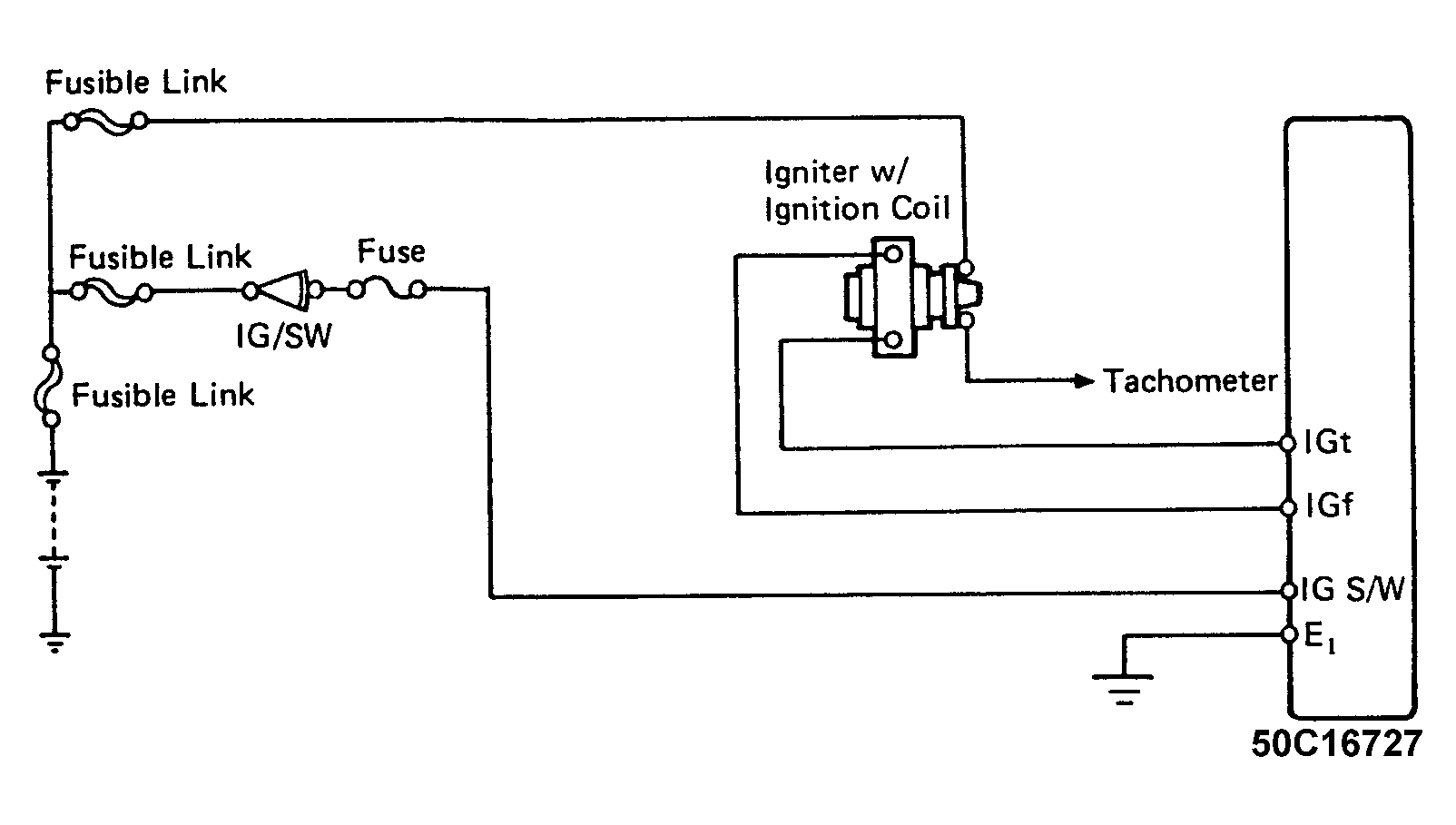

Fig 1: Trouble Code 14 Schematic, Terminals IGt - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

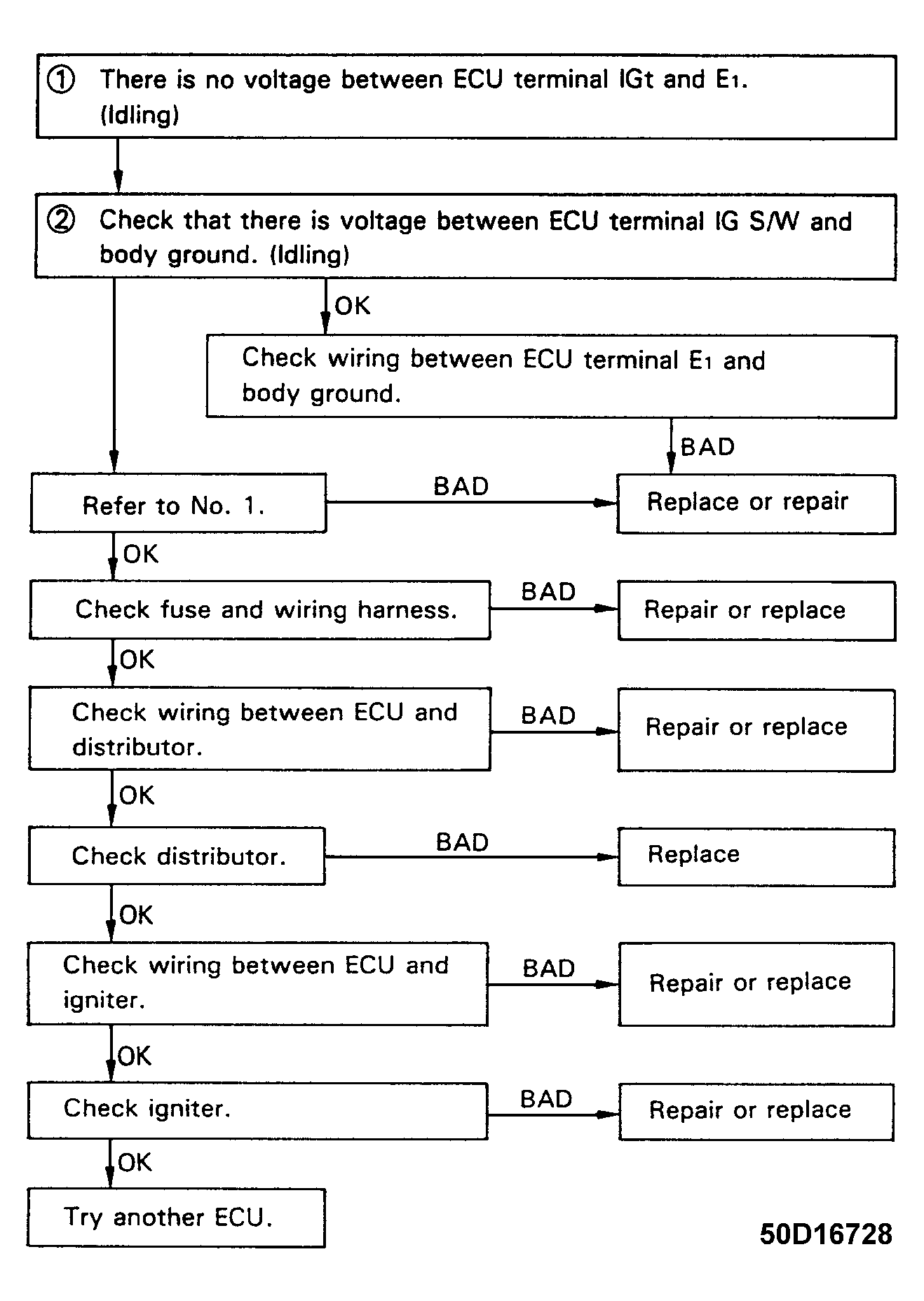

Fig 2: Trouble Code 14 Flow Chart, Terminals IGt - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
