Trouble Code 43 Ignition & Starter Circuits

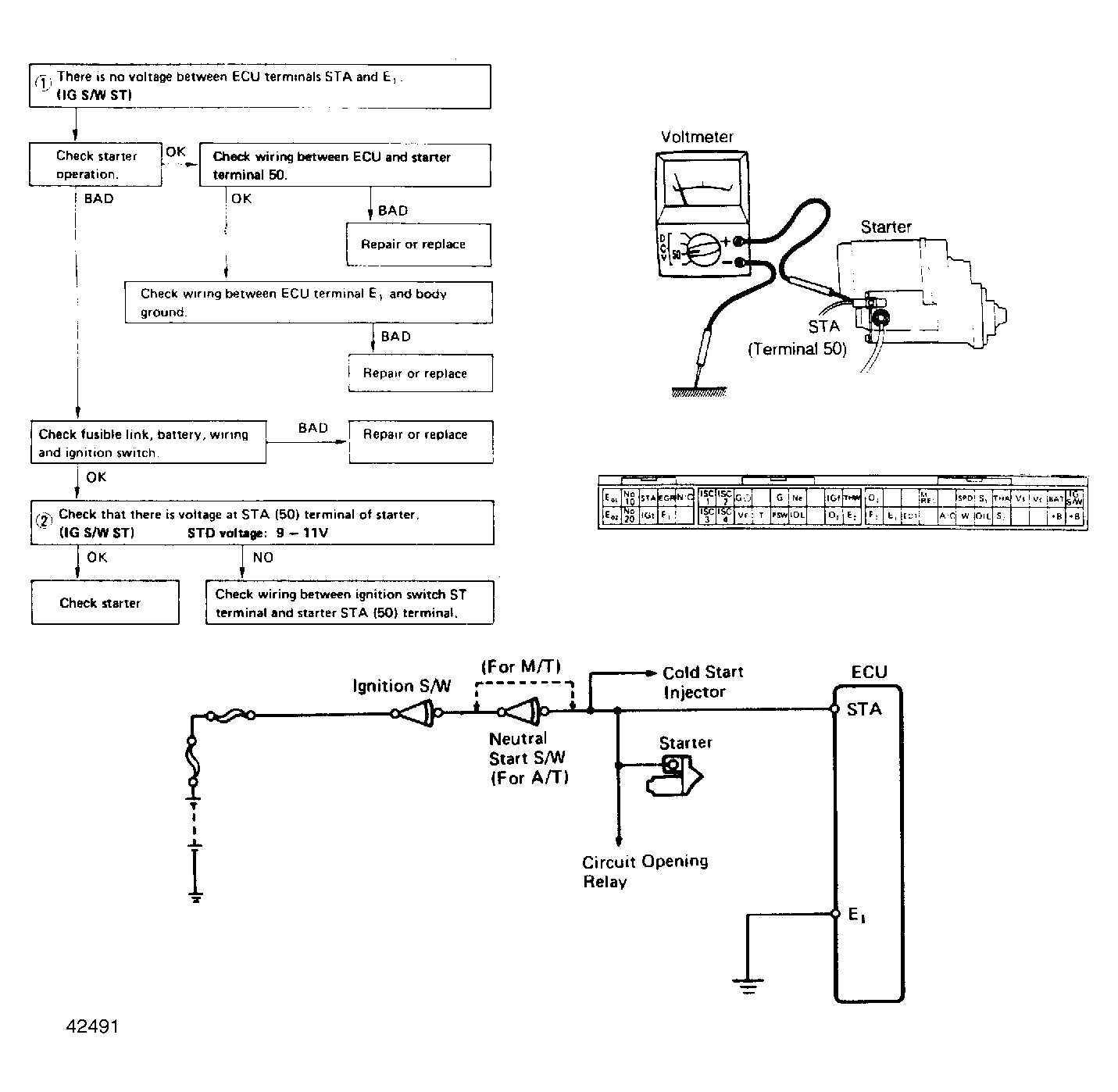

Fig 1: Trouble Code 43, Terminal STA - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
