Glow Plug Relays

Connect ohmmeter leads to connector terminals E and g (near tab). See Fig 1 and Fig 2 . There should be continuity. Connect leads to terminals B and G. There should be no continuity. Apply battery voltage to terminals E and g. Continuity should now exist between terminals B and G. If continuity is not as specified, replace relay.

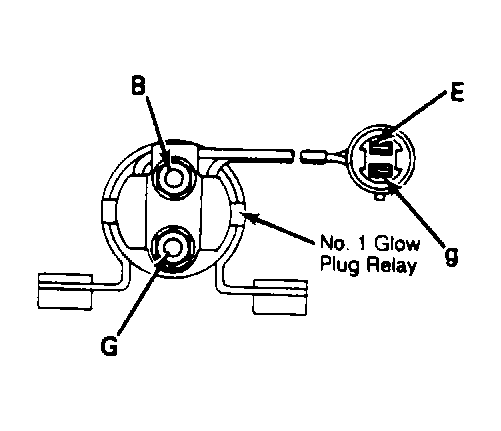

Fig 1: Checking No. 1 Glow Plug Relay
G35049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

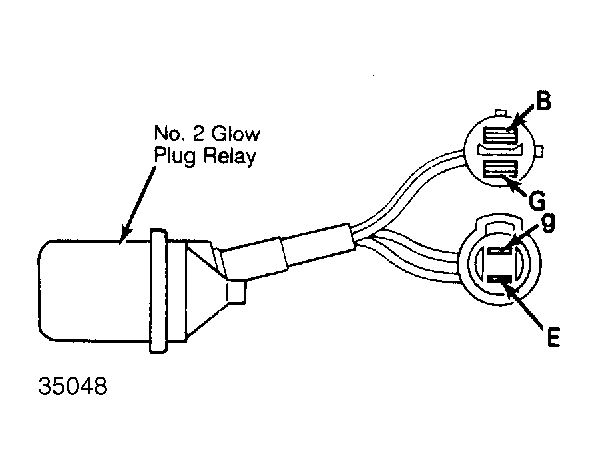

Fig 2: Checking No. 2 Glow Plug Relay
G35048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
