Water Temperature Sensor

Remove connector and connect ohmmeter leads to water temperature sensor terminals. If resistance does not agree with graph, replace sensor. See Fig 1.

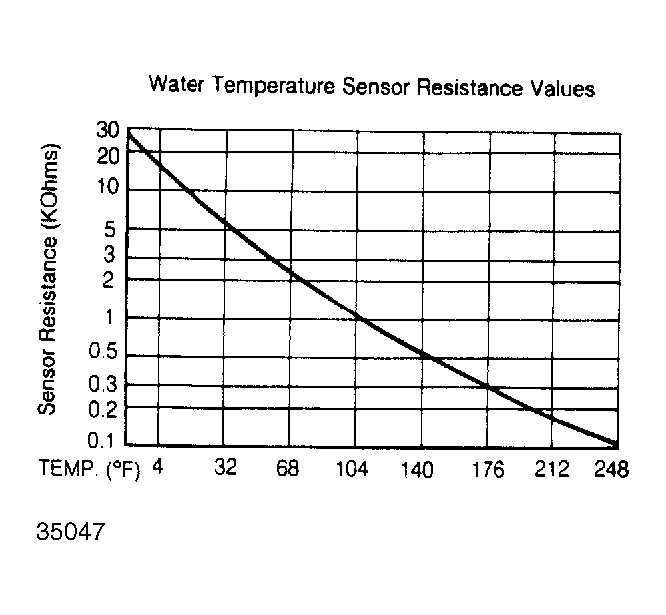

Fig 1: Water Temperature Sensor Resistance Values
