Component Locations

The PWR CB (20A) circuit breaker is in the fuse box in the instrument panel, to the right of the center console.

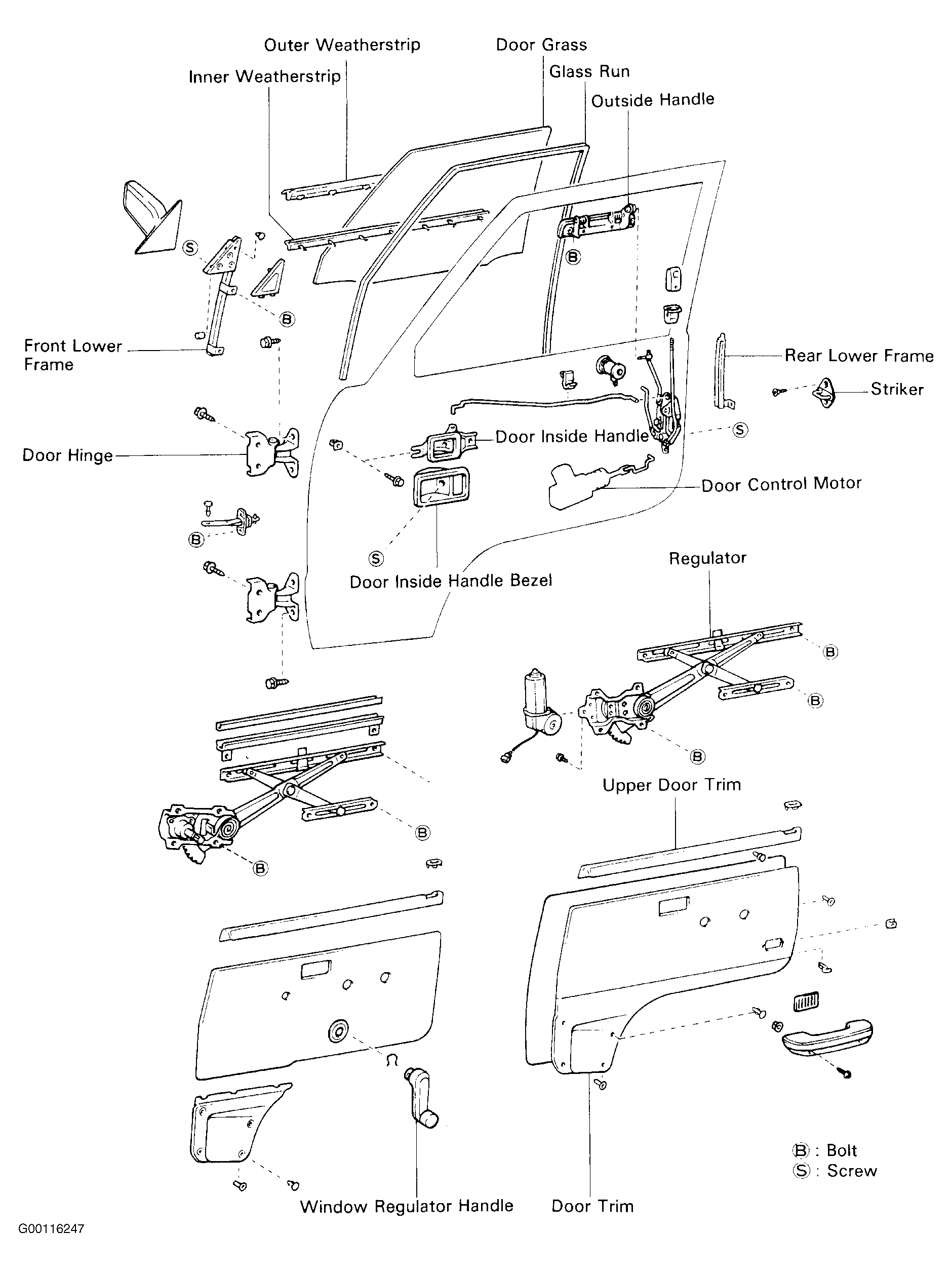

Fig 1: Exploded View Of Front Door Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

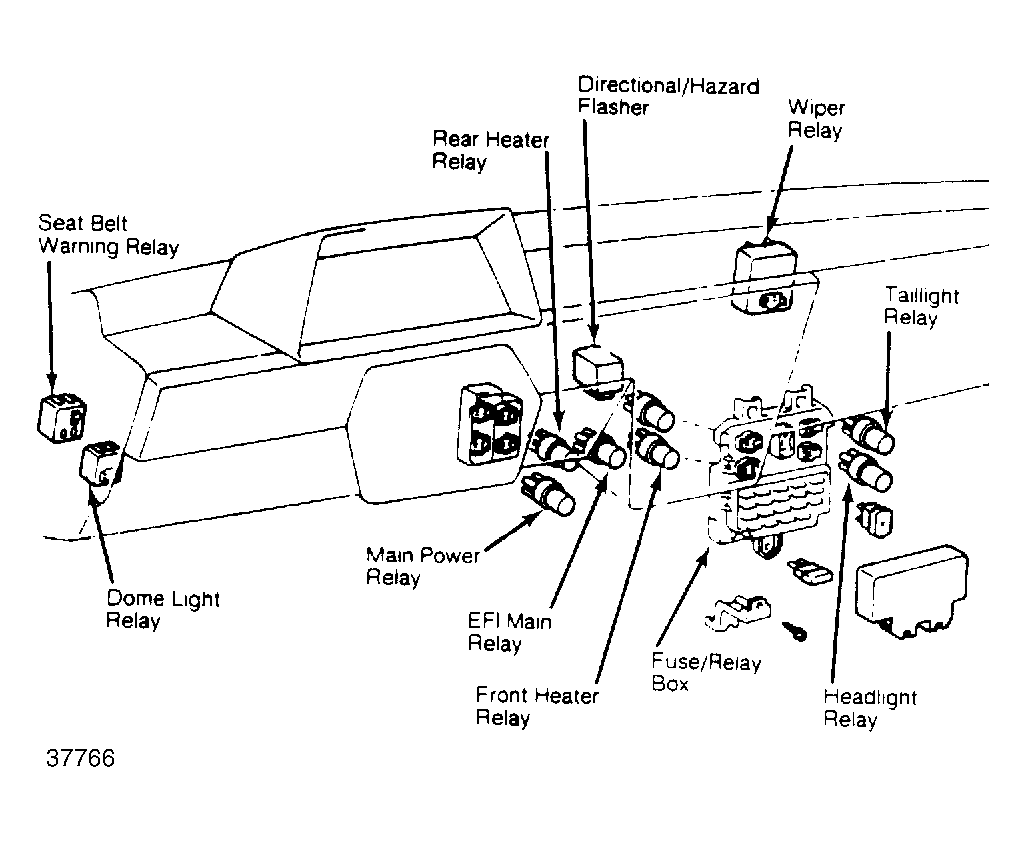

Fig 2: Locating Power Main Relay (Right Of Steering Column)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

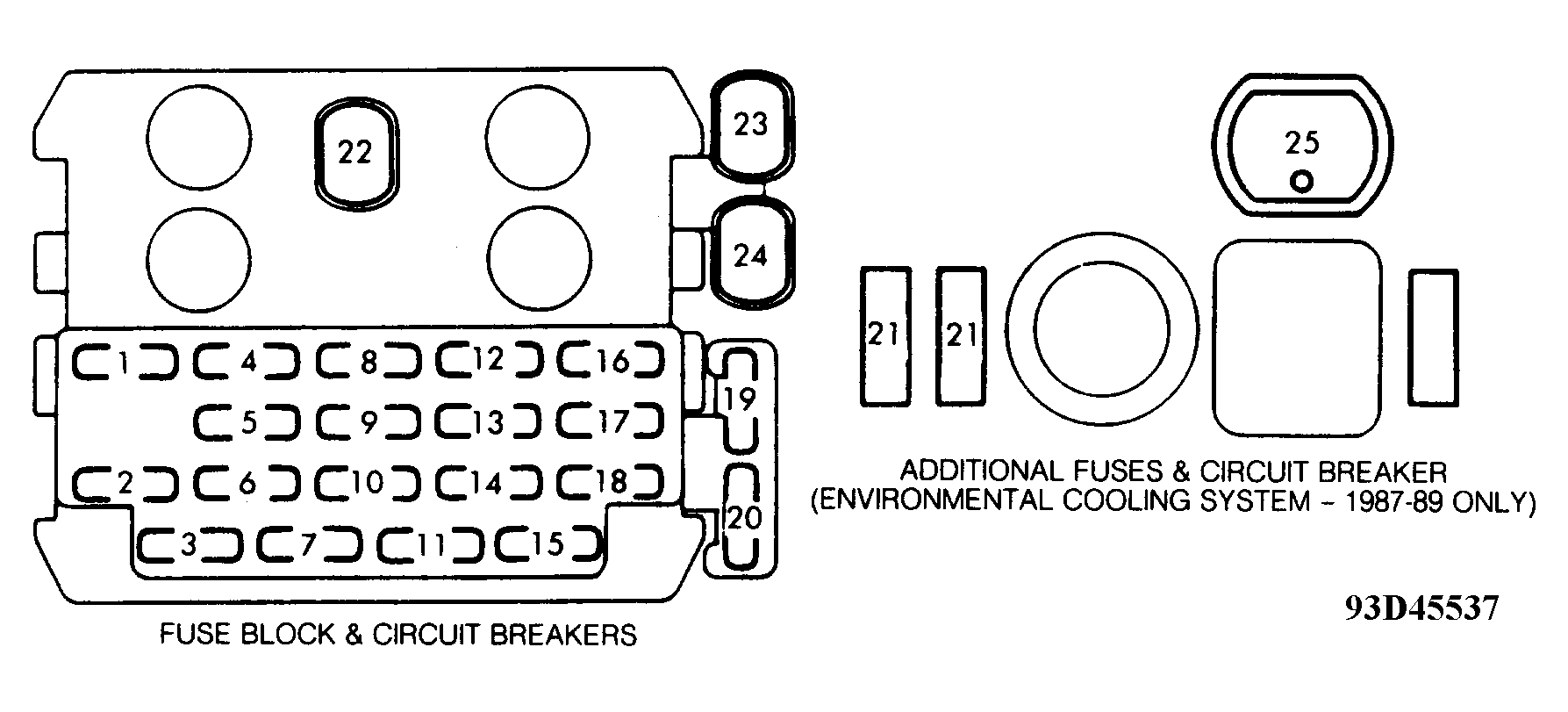

Fig 3: Fuse Box Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

• 8 - 7.5 AmpFuse  Gauges & Power Main Relay
