Vehicle Speed Sensor: Testing and Inspection


ANALOG METER

Speed Sensor Check (Analog Meter):






1. Connect ohmmeter between terminals B6 and B7.
2. Turn speedometer shaft and check that continuity is indicated 4 times per revolution.
3. If not as specified, replace sensor.

DIGITAL METER

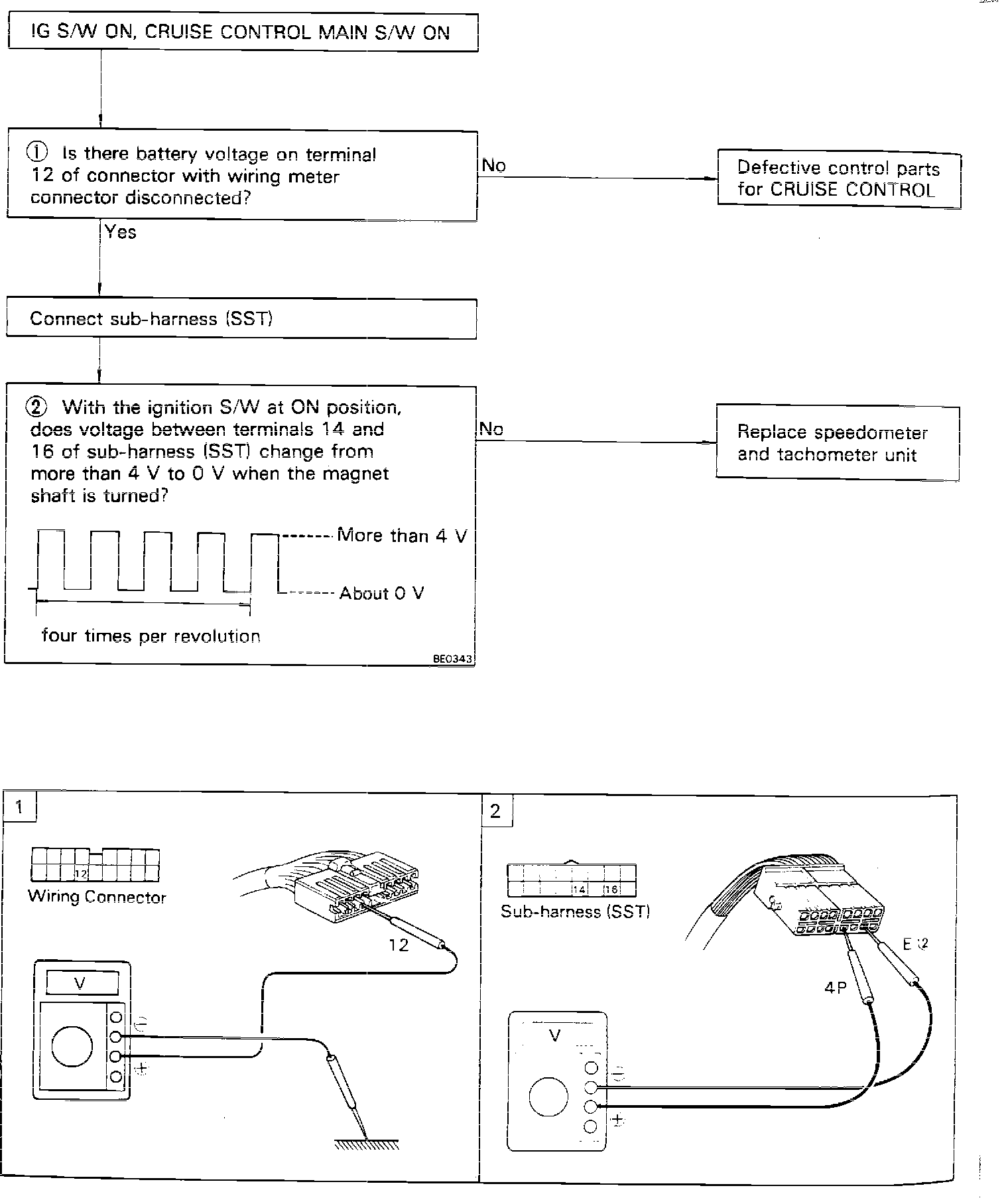

Digital Speed Sensor Check:
