Trouble Code 6 - Ignition Signal

Fig 1: Terminals IG - E1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

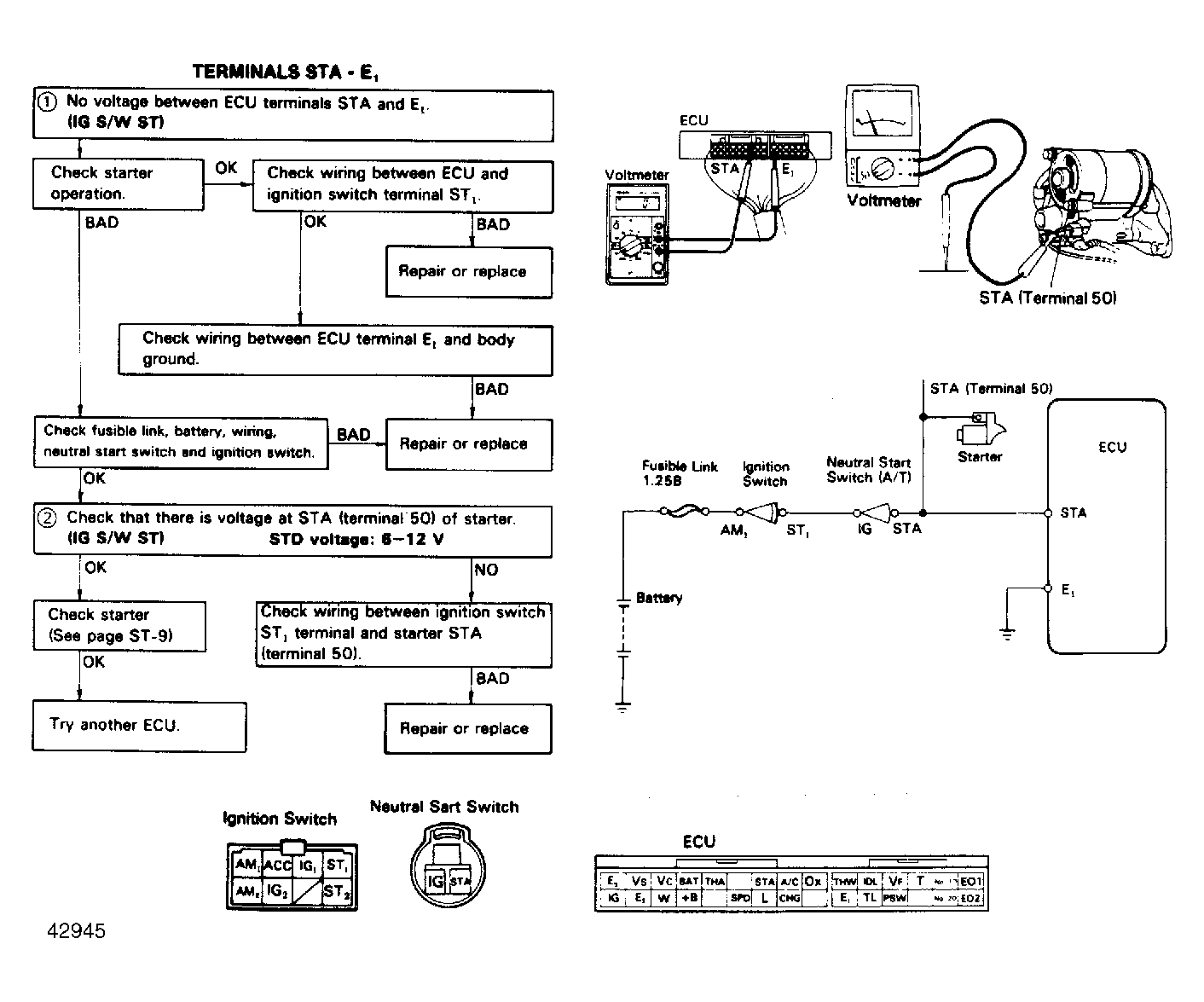

Fig 2: Terminals STA - E1
