Trouble Code 11 Main Relay & Circuit
Fig 1: Terminal BAT - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

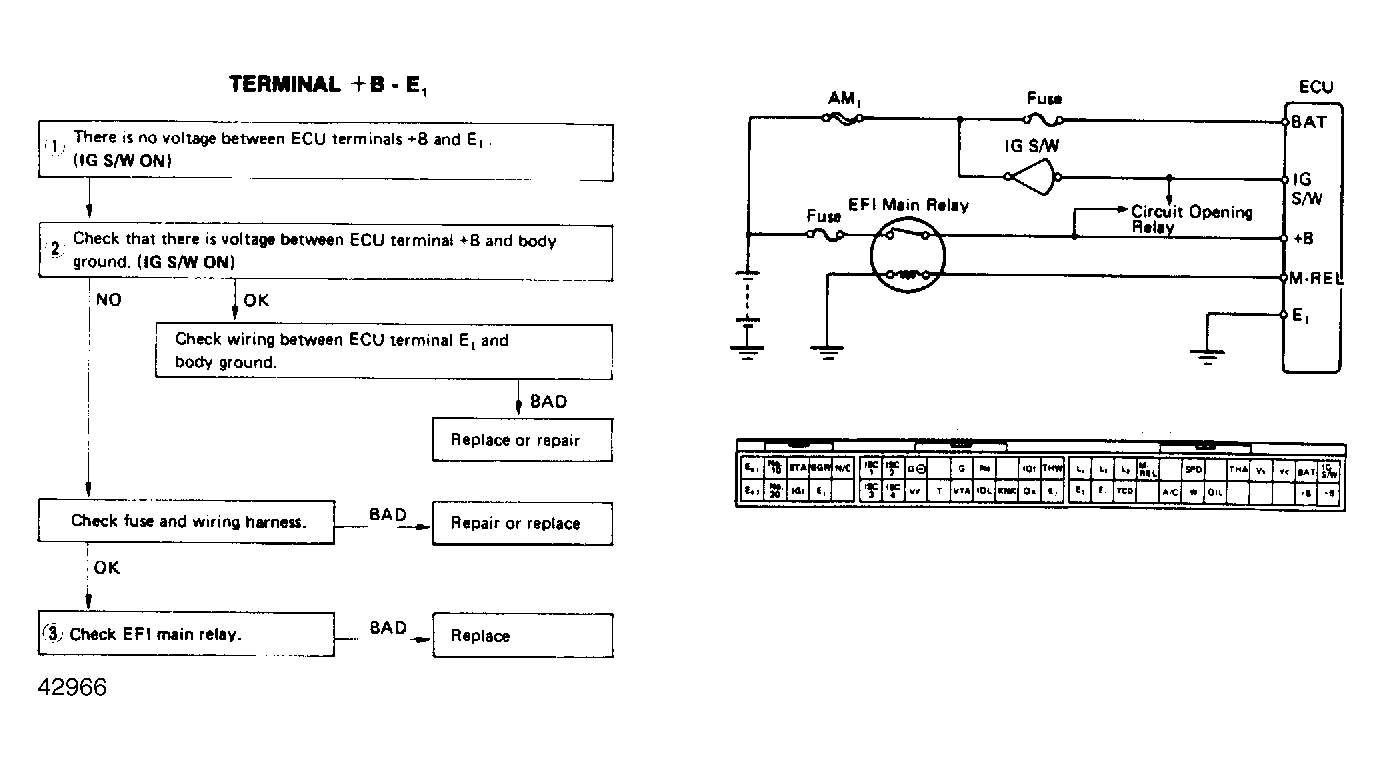

Fig 2: Terminal +B - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

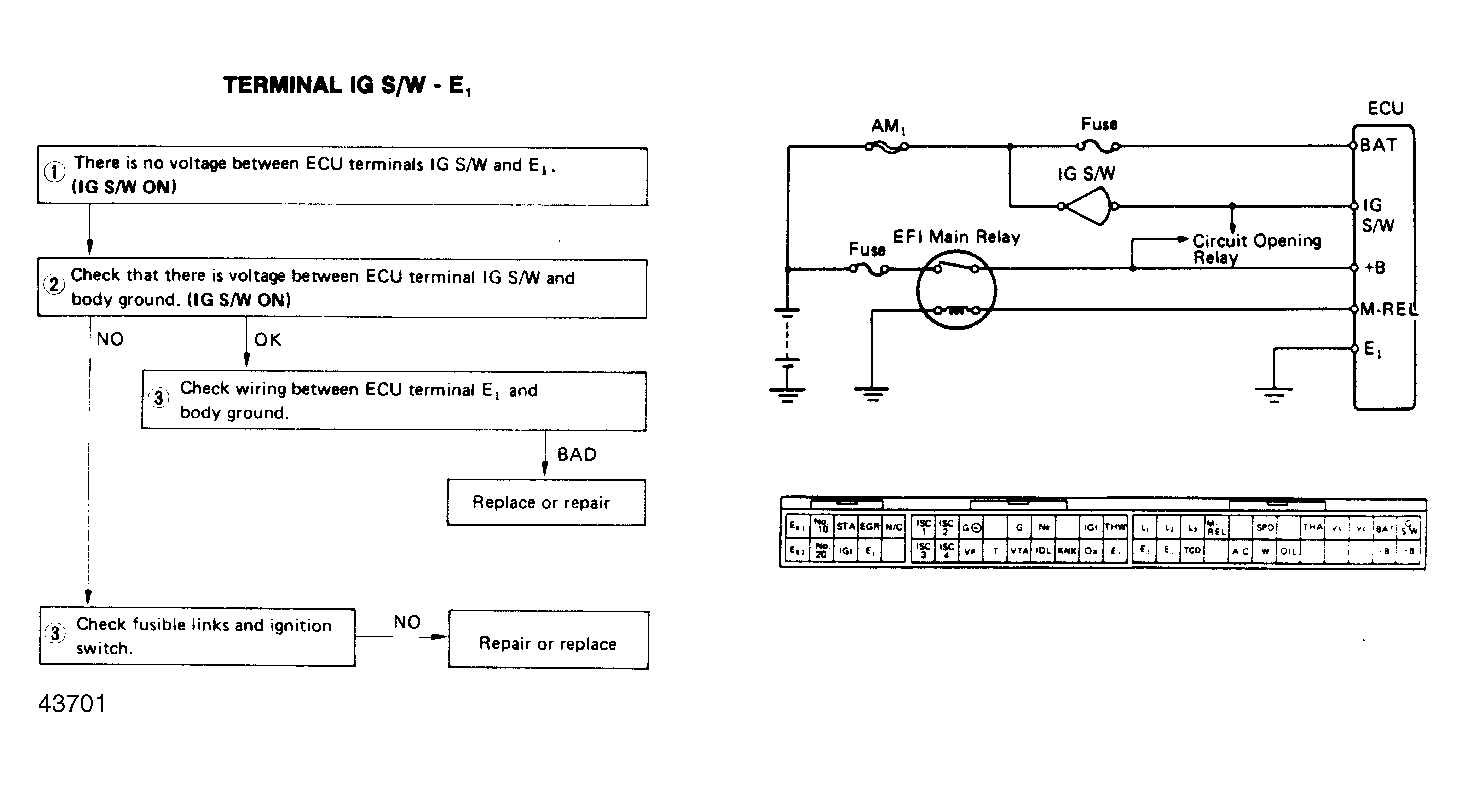

Fig 3: Terminal IG S/W - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

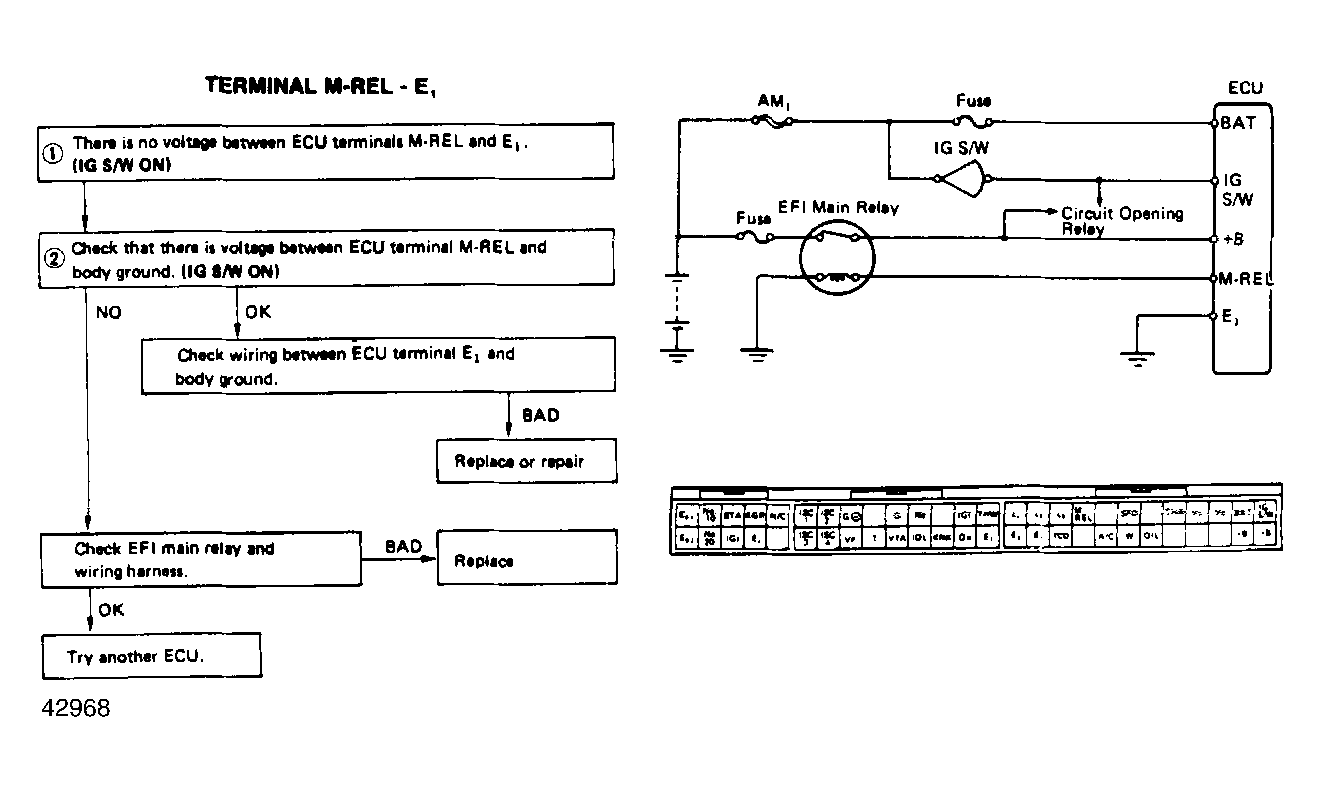

Fig 4: Terminal M-REL - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
