Toyota
>>
1985
>>
Corolla LE, 4D Hatchback
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Feedback Carburetor System
>>
Wiring Diagrams
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Wiring Diagrams

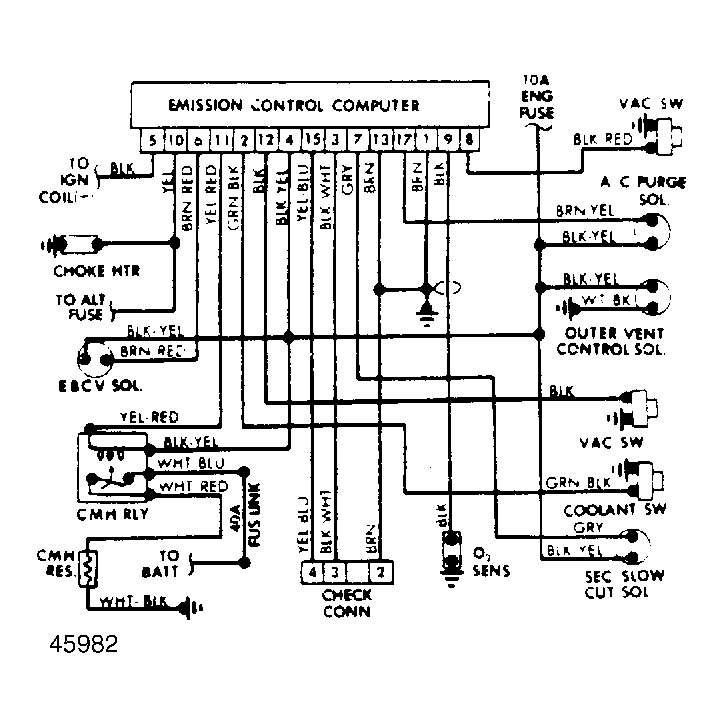

Fig 1: Computer Controlled Emission System Wiring Diagram (FWD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

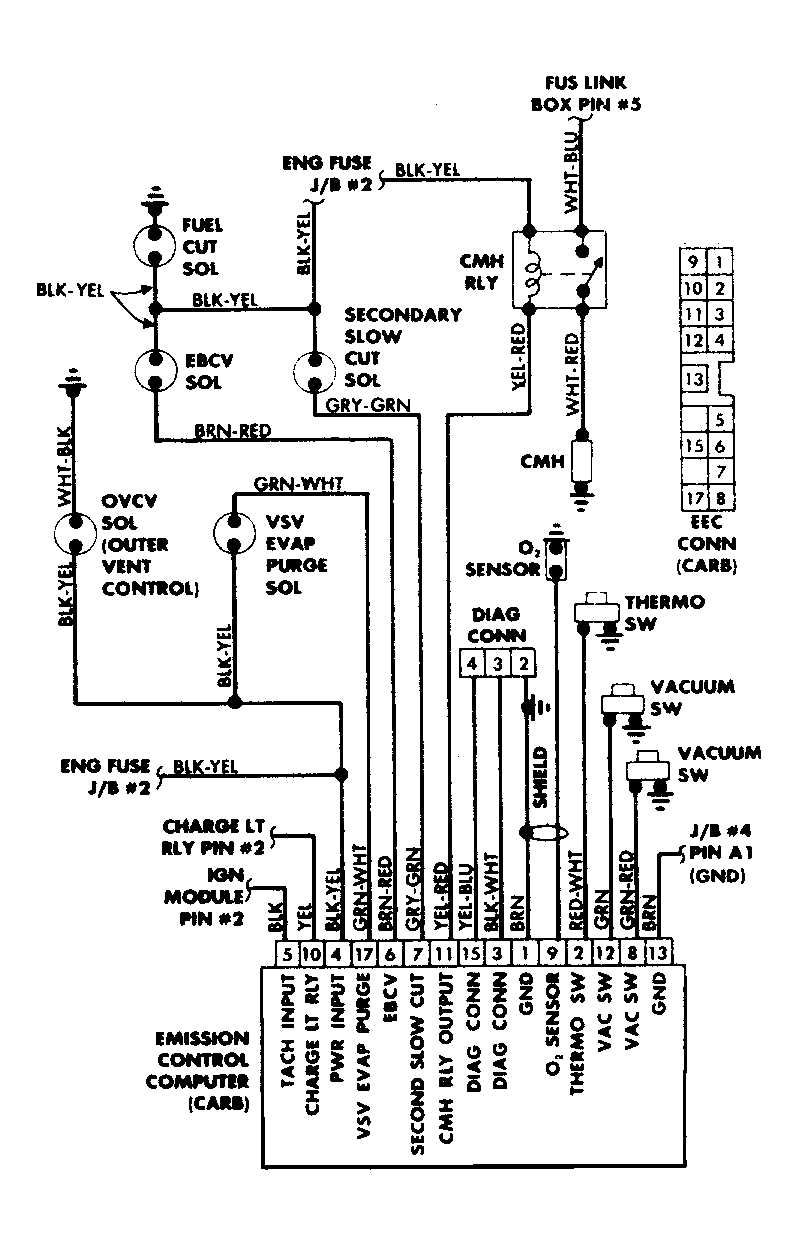

Fig 2: Computer Controlled Emission System Wiring Diagram (RWD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
