Steering Column: Inspection

Inspect all components for wear or damage. Check bearings for smooth operation. Check steering shafts for collision damage. Check steering lock mechanism (located in upper bracket) for proper operation. Replace components as necessary.
On 2WD Pickups, temporarily assemble main steering shaft to intermediate shaft and measure amount of radial play between shafts. Allowable limit is .0024" (.06 mm). Replace pin and bearing blocks, if necessary.
NOTE: If replacing pin and bearing blocks, ensure new bearing blocks have the small anti-rattle rubber inserts installed before assembling intermediate shaft to main steering shaft.

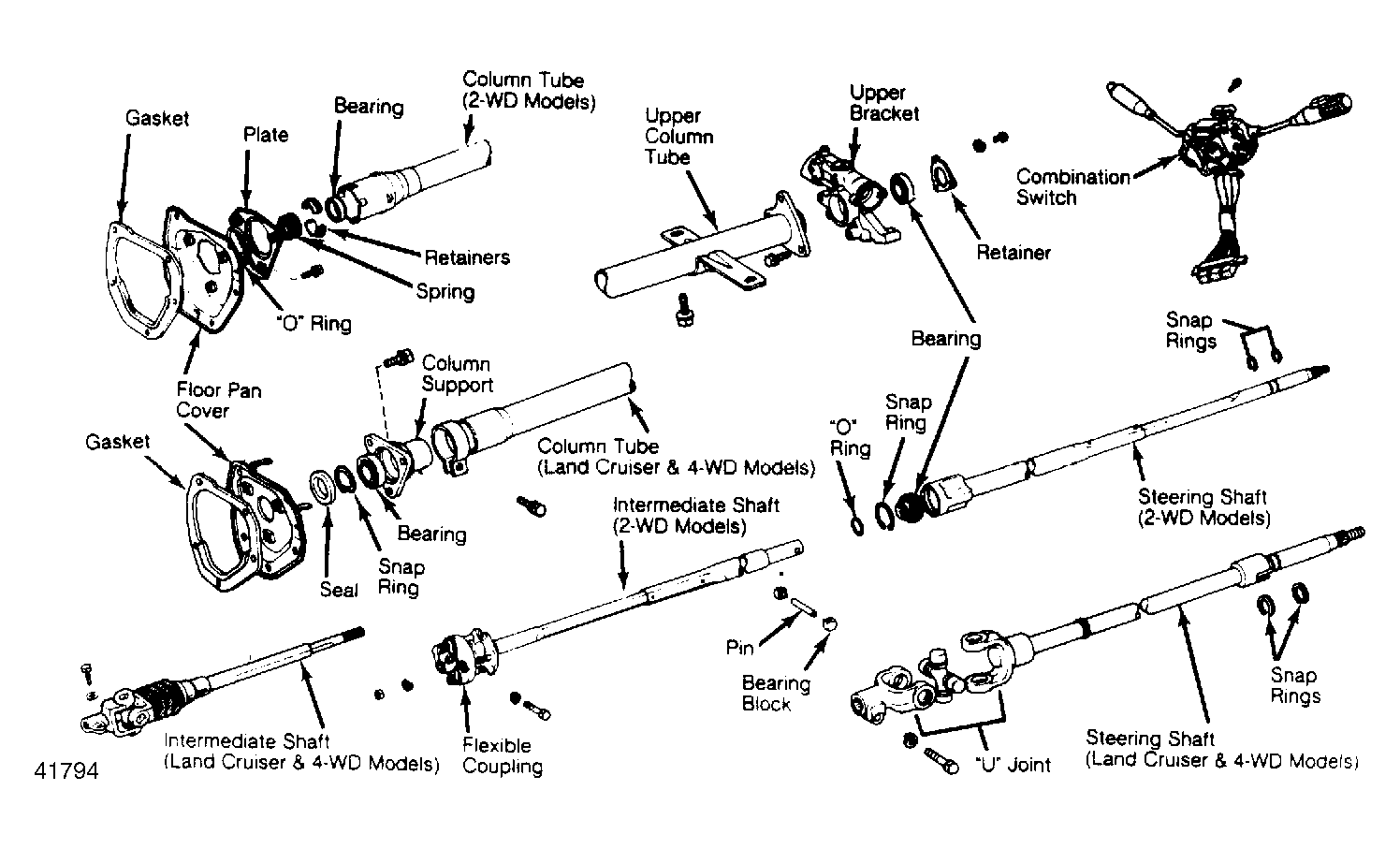

Fig 1: Exploded View of Land Cruiser & Pickup Steering Columns
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
On Land Cruiser, Tercel and 4-Runner, check "U" joints for excessive axial play. Maximum play is .002" (.05 mm). Replace "U" joint, if necessary.
