Repair and Diagnosis: Transmission: Clutches: Description

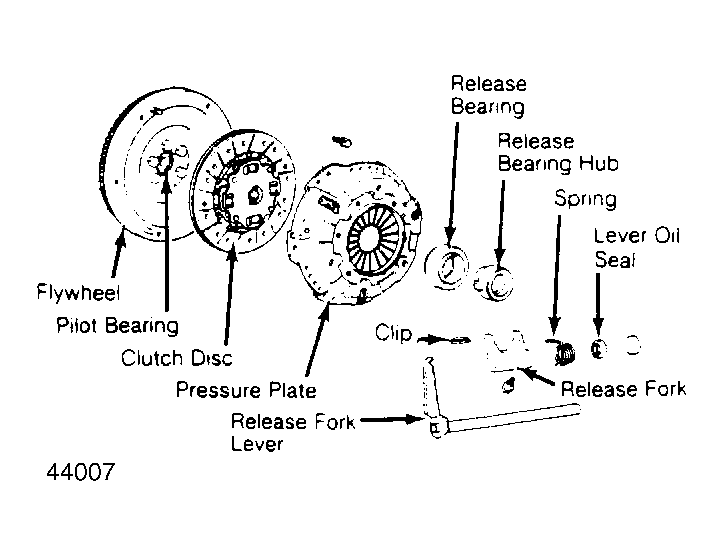

Clutch is single dry disc using diaphragm spring type pressure plate. Actuation is mechanical, using an adjustable cable connected to clutch pedal and release fork. A permanently lubricated release bearing is used.
