Check Engine Light Off
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Check Engine Light Off

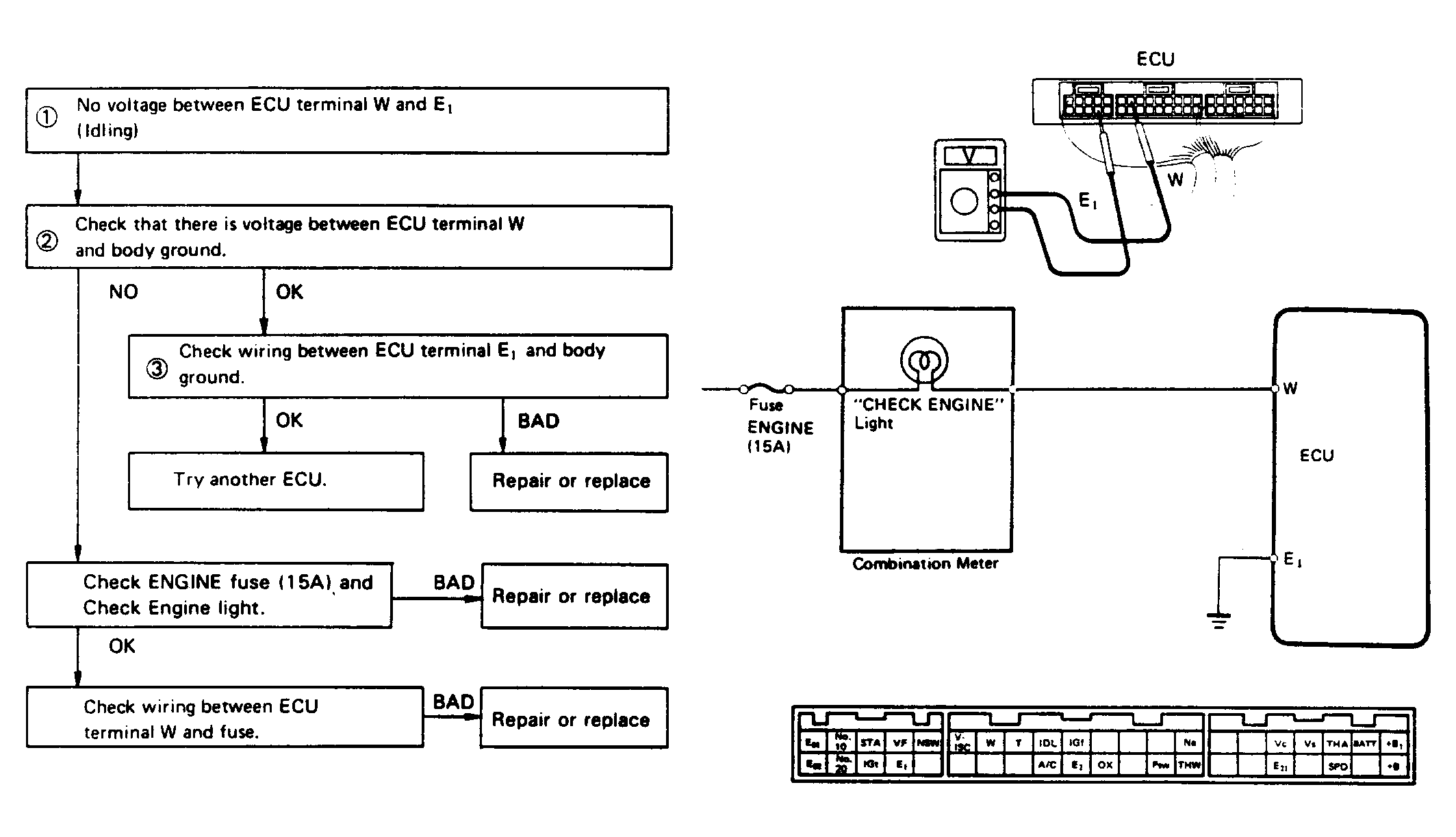

Fig 1: Terminals W & E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
