Component Locations

NOTE: Door lock control relay is behind left side of instrument cluster.

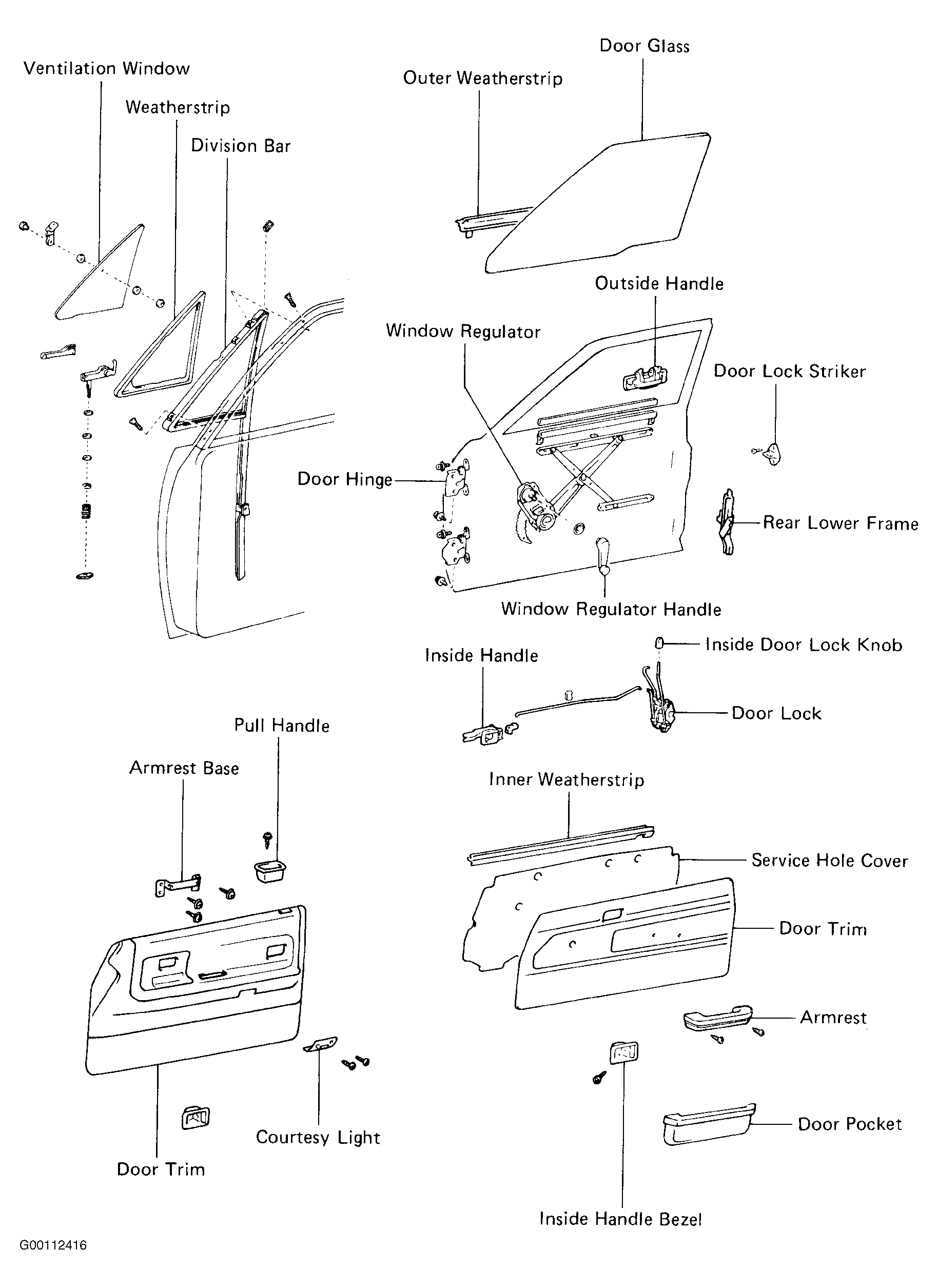

Fig 1: Exploded View Of Front Door Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

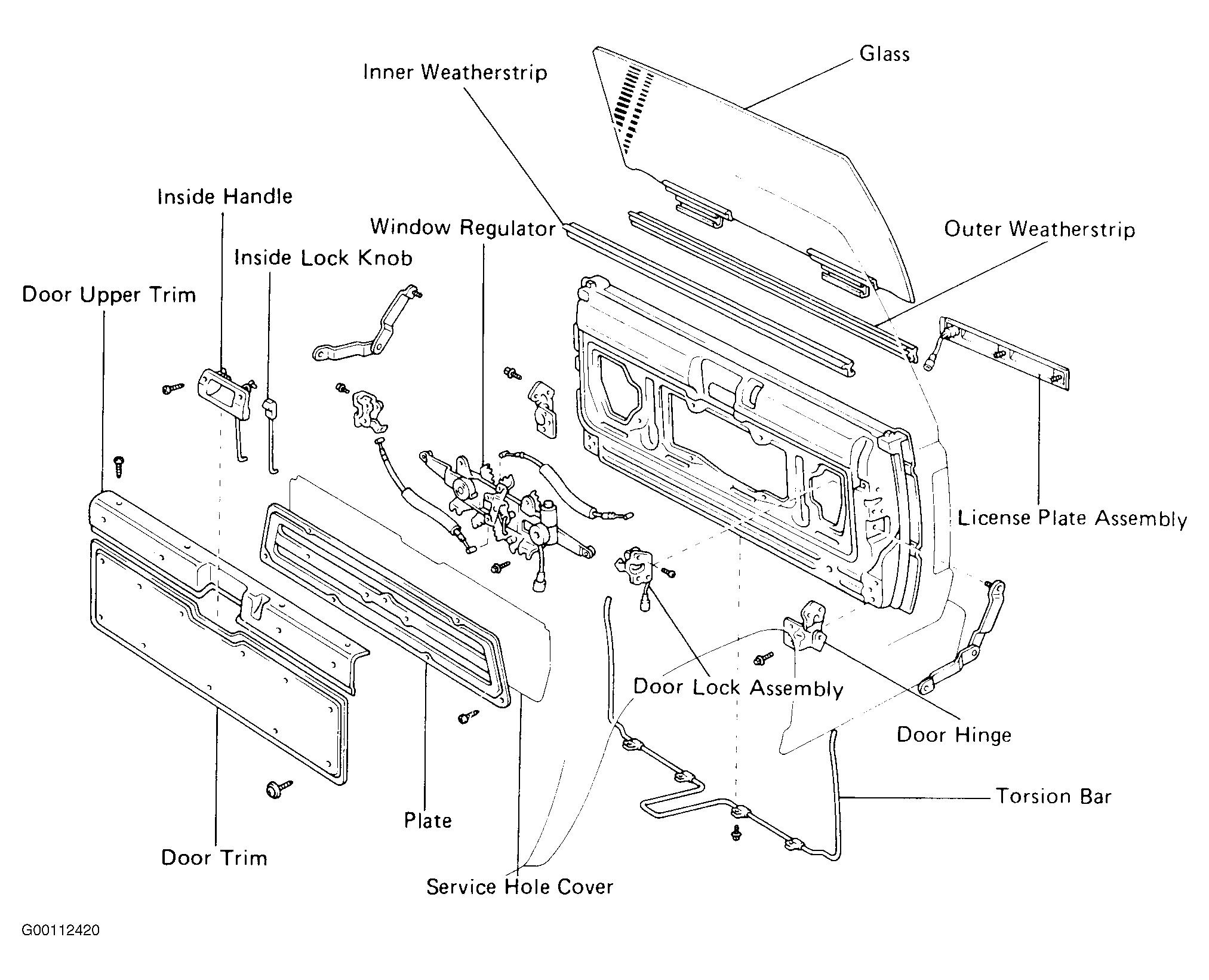

Fig 2: Exploded View Of Back Door Components
