Trouble Code 7 TPS Sensor & Circuit

Fig 1: Terminals IDL - E2
G48507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

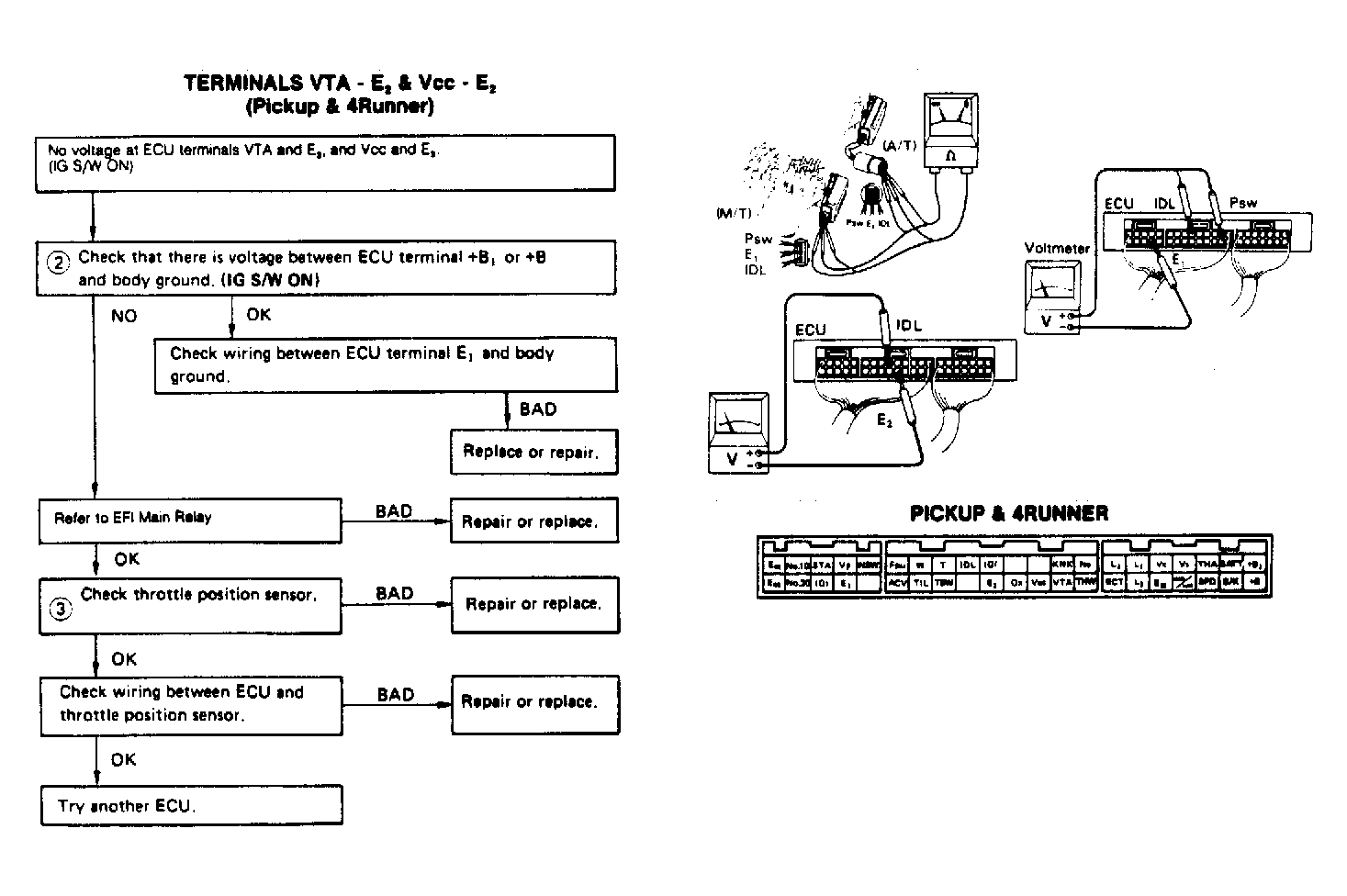

Fig 2: Terminals VTA - E2 & Vcc - E2
G48510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
