On-Vehicle Inspection of Relay Circuit

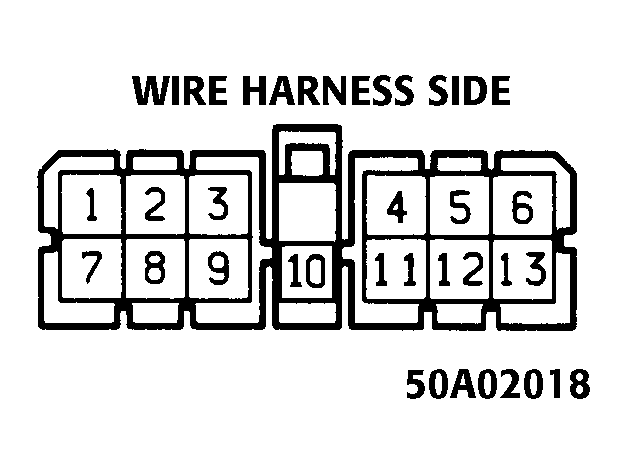

Disconnect the relay connect and inspect the connector on the wire harness side as shown in the table below. Connect the positive (+) lead from the battery to terminal 4 and the negative (-) lead to terminal 1, and check that the solenoid operates lock direction. If circuit is correct, replace the relay.
CONTROL RELAY CHECK
| Check Item | Tester Connection | Condition | Voltage or Continuity |
|---|---|---|---|
| Continuity | 1-Ground | Turn door lock sw. to UNLOCK | Continuity |
| Continuity | 1-Ground | Door lock sw.: Except UNLOCK | No Continuity |
| Voltage | 2-Ground | " | Battery Voltage |
| Voltage | 5-Ground | " | Battery Voltage |
| Continuity | 7-Ground | Turn door lock sw. to LOCK | Continuity |
| Continuity | 7-Ground | Door lock sw.: Except LOCK | No Continuity |
| Voltage | 8-Ground | Turn ign. sw. on | Battery Voltage |
| Voltage | 8-Ground | Ign. sw. off, except LOCK | No Voltage |
| Continuity | 9-Ground | Turn LH and/or R/H door courtesy sw. on | Continuity |
| Continuity | 9-Ground | Turn LH and/or R/H door courtesy sw. off | No Continuity |
| Continuity | 10-Ground | " | Continuity |
| Voltage | 12-Ground | Push the following switches One by one to Up or Down: Master Switch; Door Switch (Window Lock Switch to unlock) | Continuity |
| Voltage | 12-Ground | Push the Master sw. to neutral position | No Continuity |
| Voltage | 12-Ground | Push the door switch to neutral position or window lock switch to LOCK | No Continuity |
