Code 11 Main Relay & Circuit

Fig 1: Terminal - B(1) - B1 - E1 (1 Of 2)
G62095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

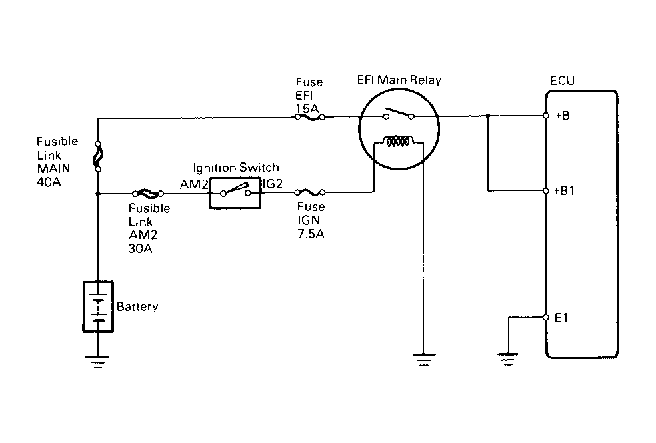

Fig 2: Terminal - B(1) - B1 - E1 (2 Of 2)
G62094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
