Abs System Circuit Check Without Abs Computer Connected

Check for readings by back-probing connectors at ABS computer with computer disconnected from system. See Fig 1, Fig 2 or Fig 3 .

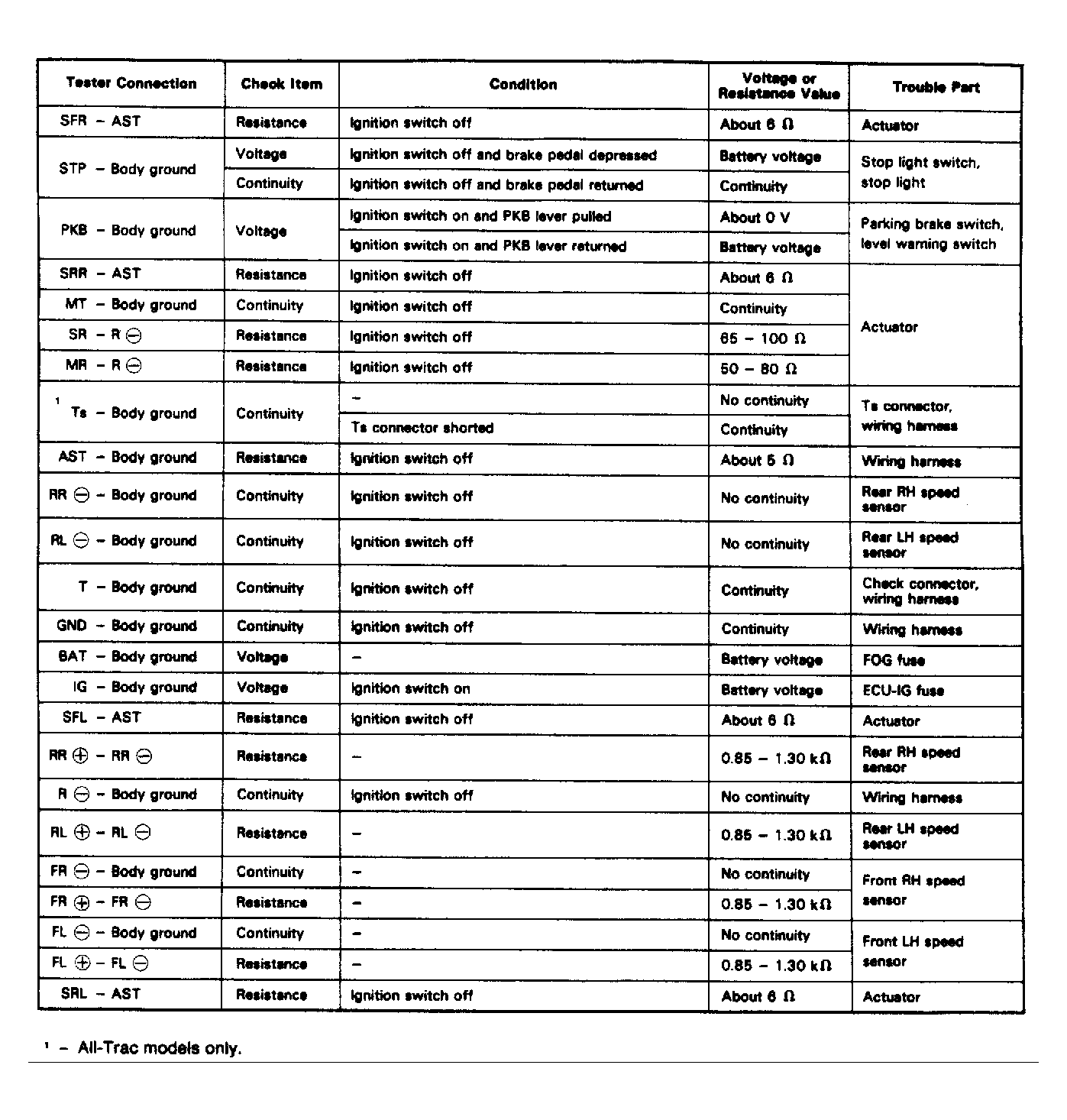

Fig 1: ABS System Circuit With ABS Computer Disconnected (Camry, & Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

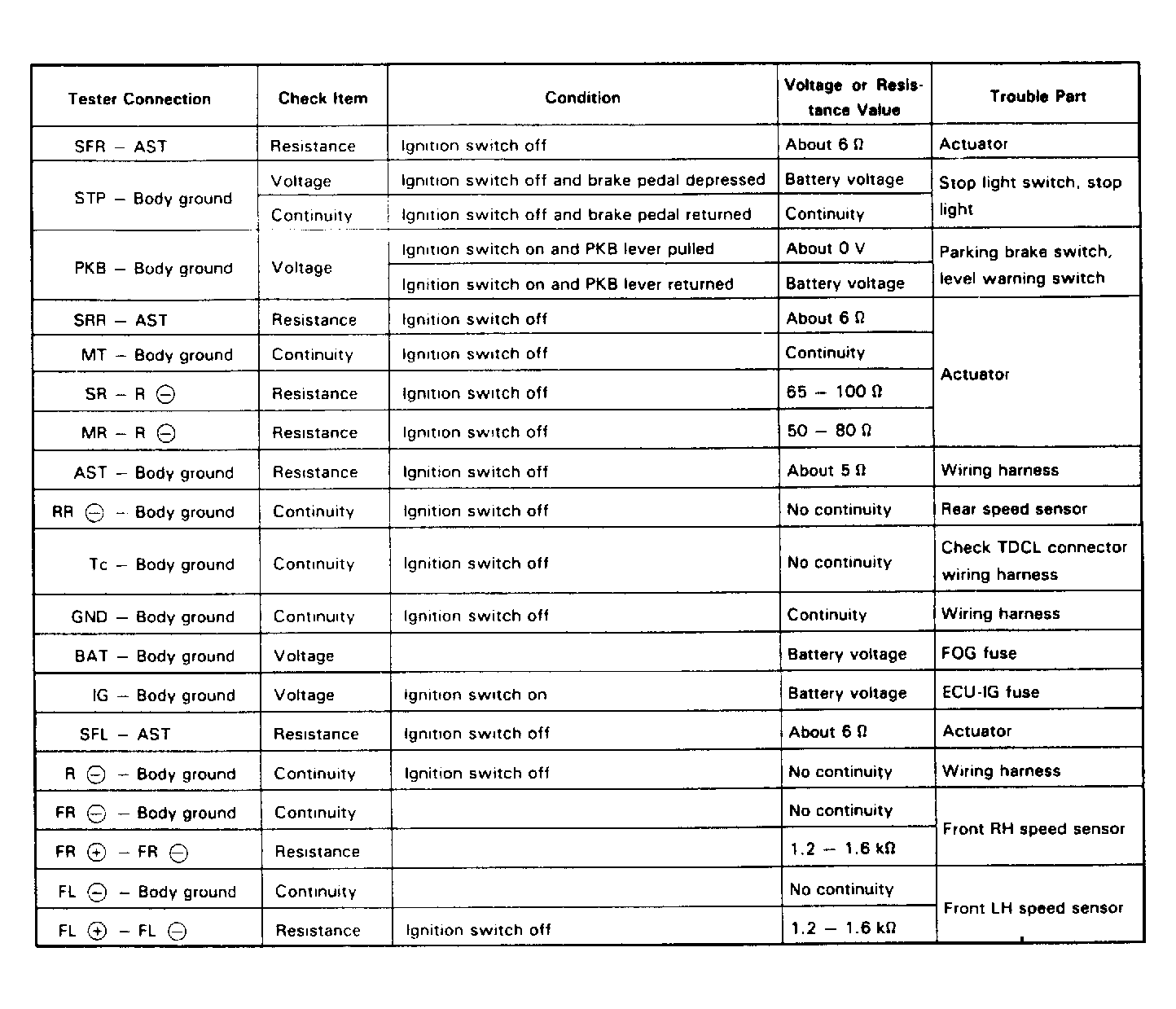

Fig 2: ABS System Circuit With ABS Computer Disconnected (Cressida)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

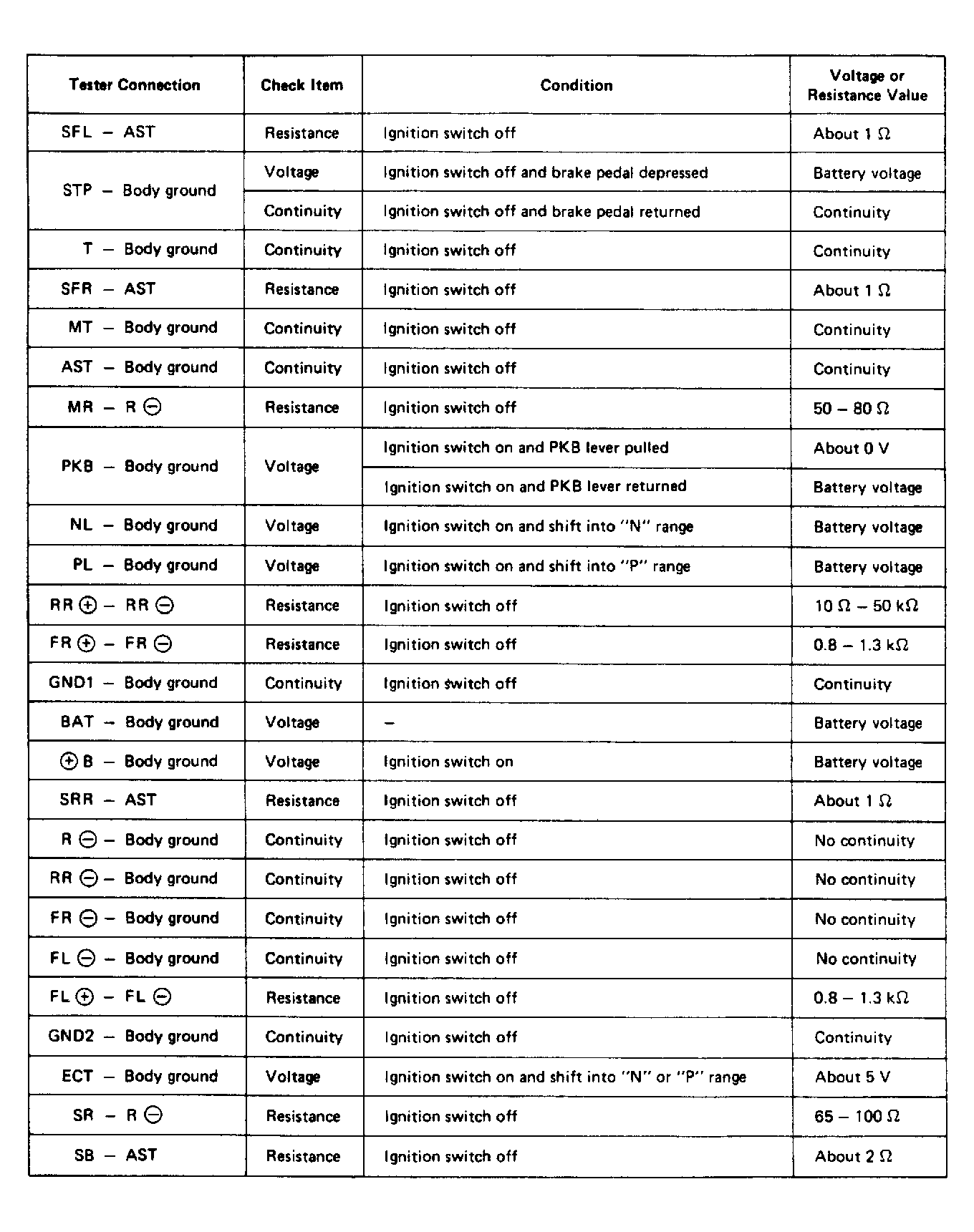

Fig 3: ABS System Circuit With ABS Computer Disconnected (Supra)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
