Code 24 Intake Air Temperature Sensor

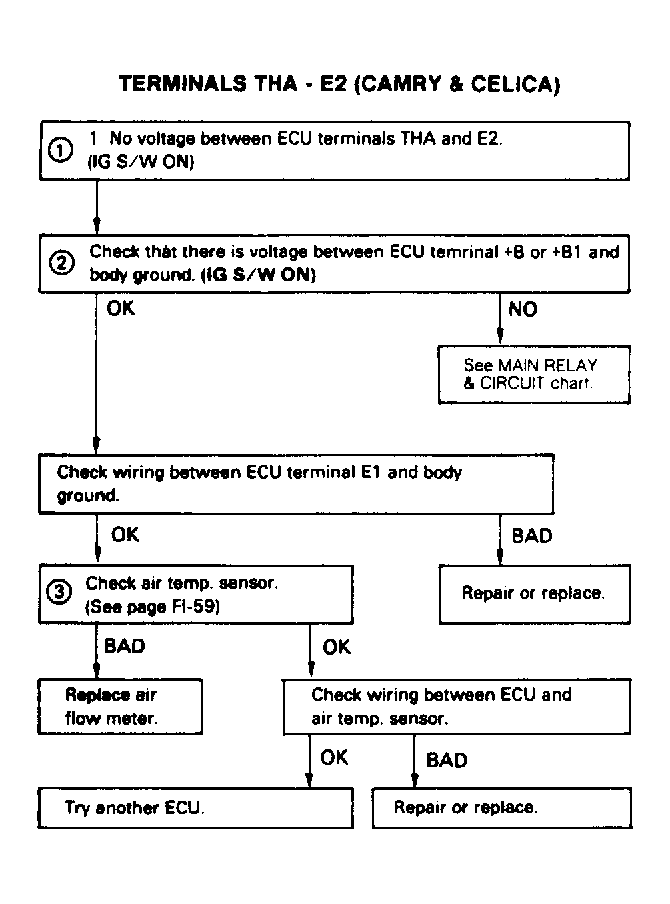

Fig 1: Terminals THA - E2 (1 Of 3)
G62120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

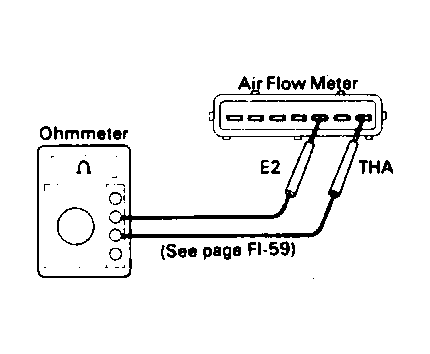

Fig 2: Terminals THA - E2 (2 Of 3)
G62119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

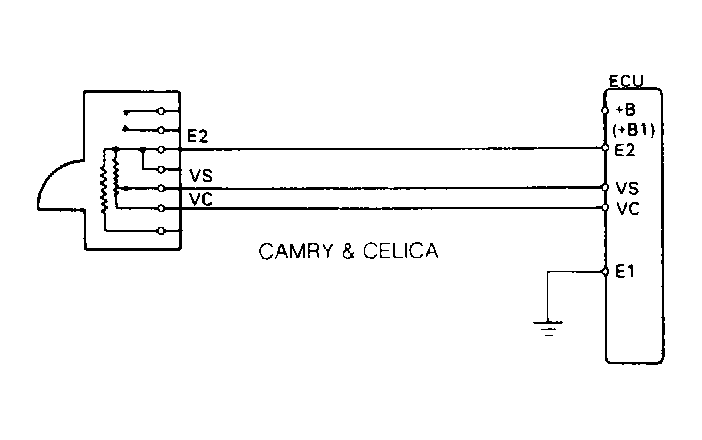

Fig 3: Terminals THA - E2 (3 Of 3)
G62118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
