Code 41 Throttle Position Sensor & Circuit

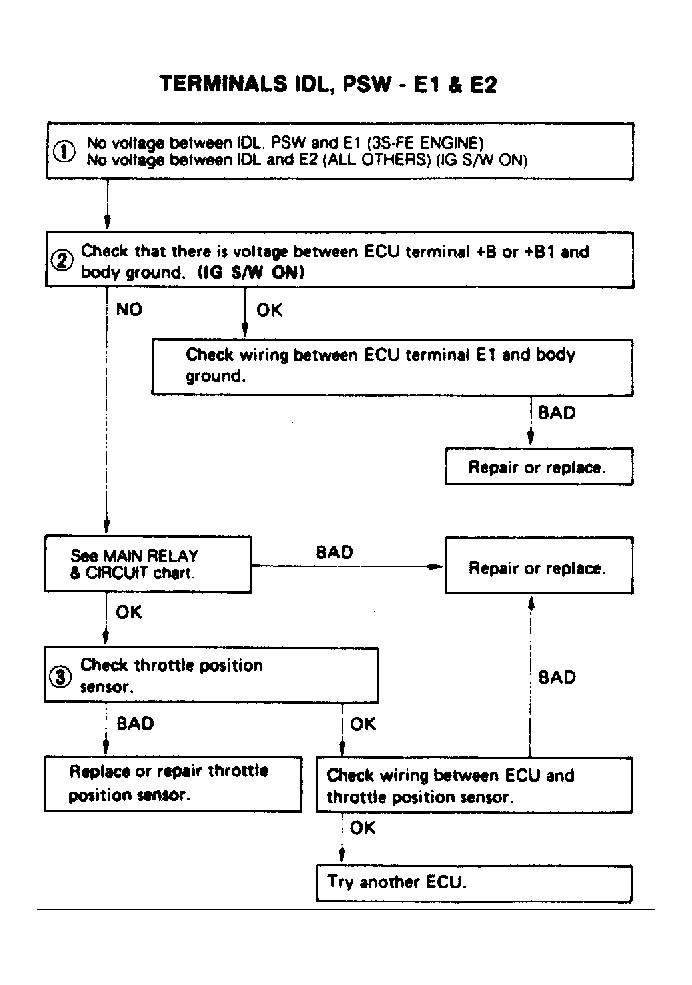

Fig 1: Terminals IDL, PSW - E1 & E2 (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

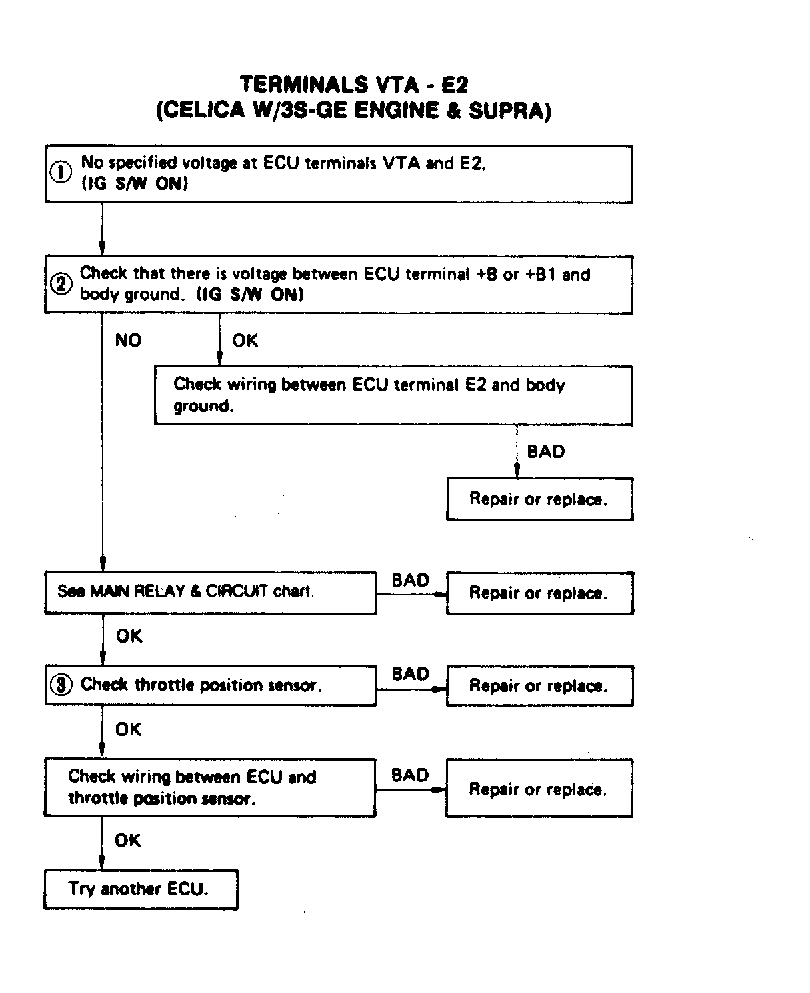

Fig 2: Terminals VTA - E2 (W/3S-GE Engine) (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

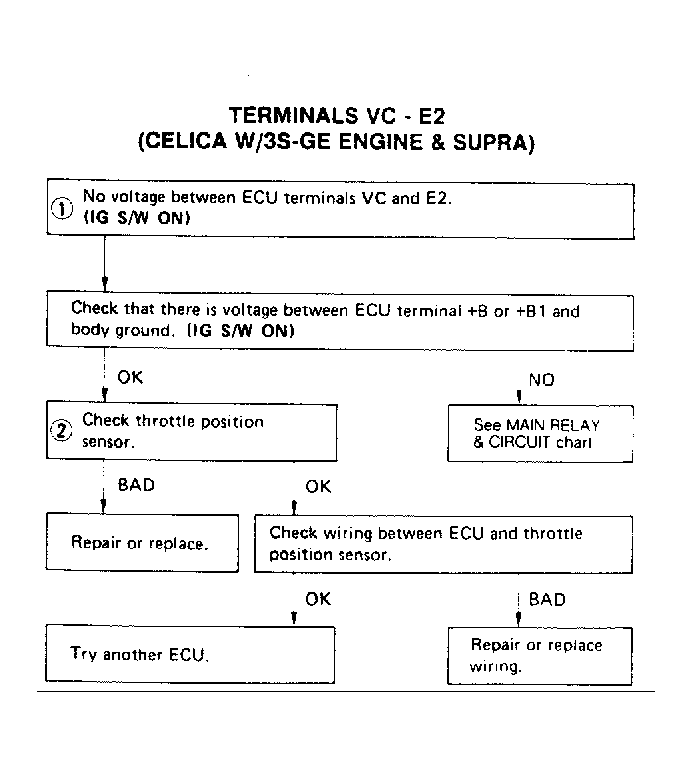

Fig 3: Terminals VC - E2 (W/3S-GE Engine) (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

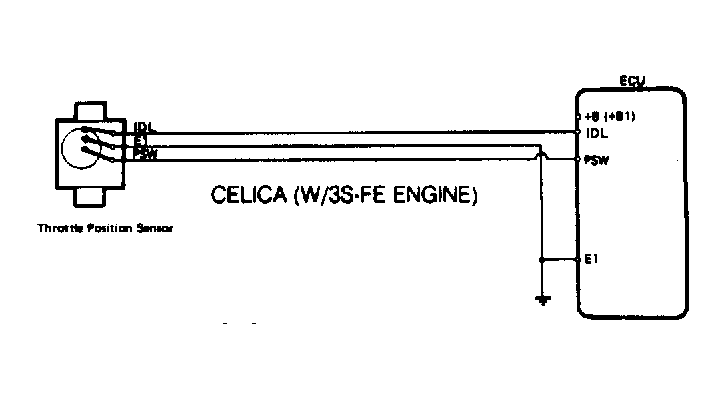

Fig 4: Wiring Diagram (W/3S-FE Engine) (4 Of 5)

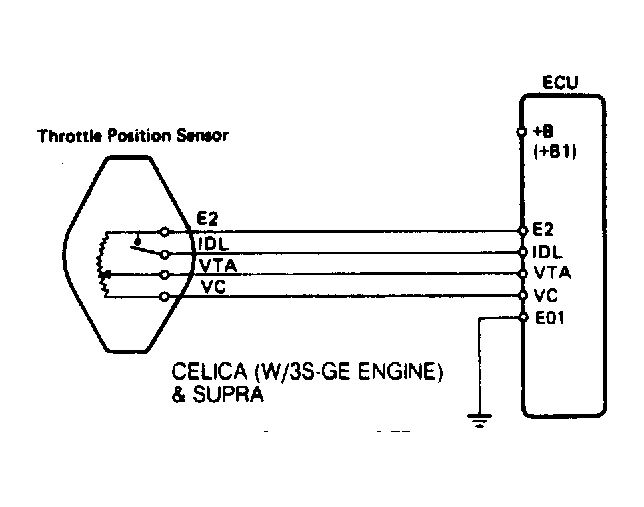

Fig 5: Wiring Diagram (W/3S-GE Engine) (5 Of 5)
