Door Lock Control Relay

Disconnect the relay connector. Inspect the connector on the wire harness side. See Fig 1, Fig 2 or Fig 3 .
Connect the positive (+) lead from the battery to terminal 2. Connect the negative (-) lead to terminal 3. Check that solenoid operates unlock direction. Then, reverse the polarity, check that the solenoids operate lock direction. If any operation is correct, replace the relay.

Fig 1: Identifying Door Lock Relay Wire Harness Side Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

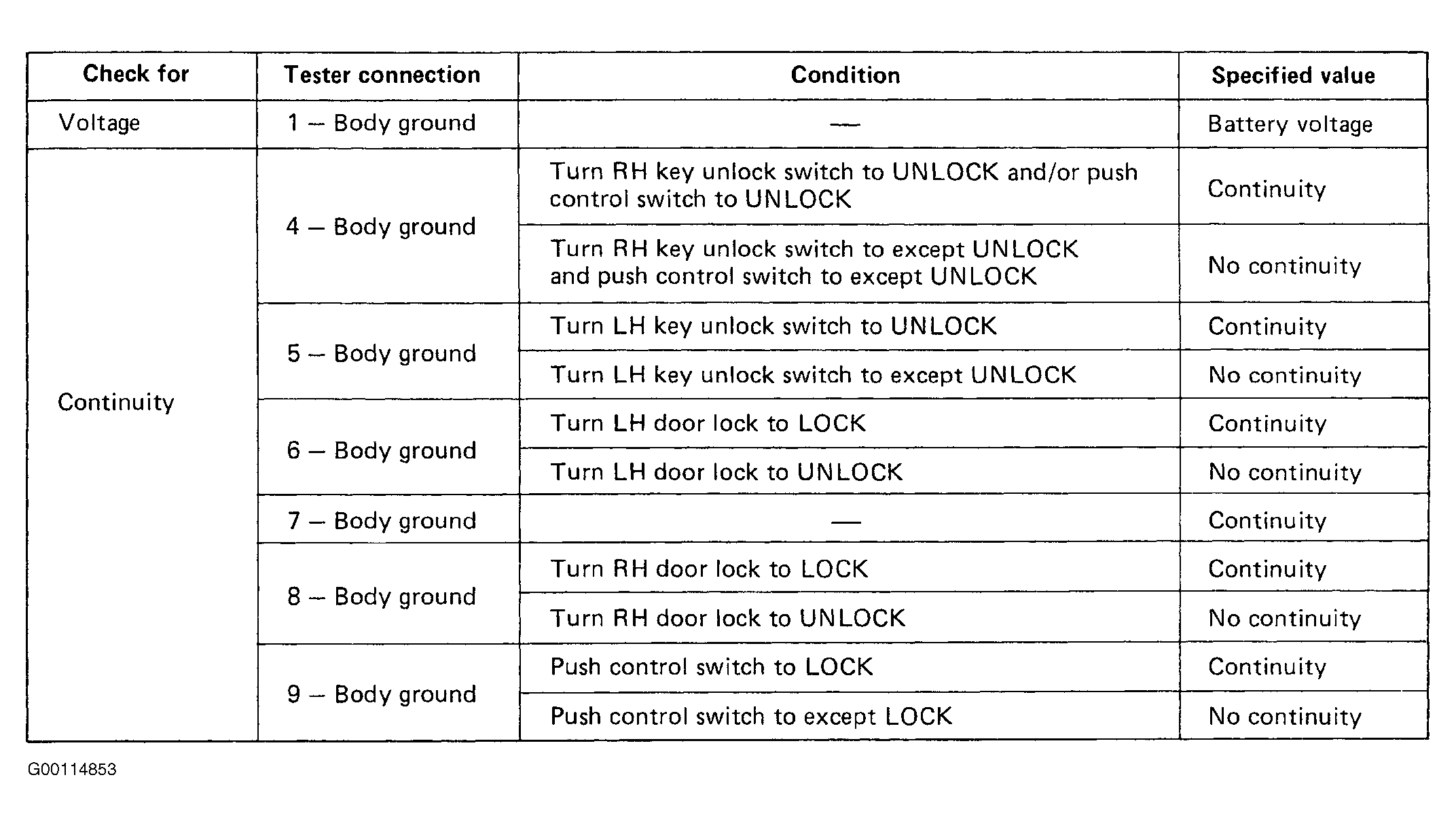

Fig 2: Checking Continuity (Except FX Series)

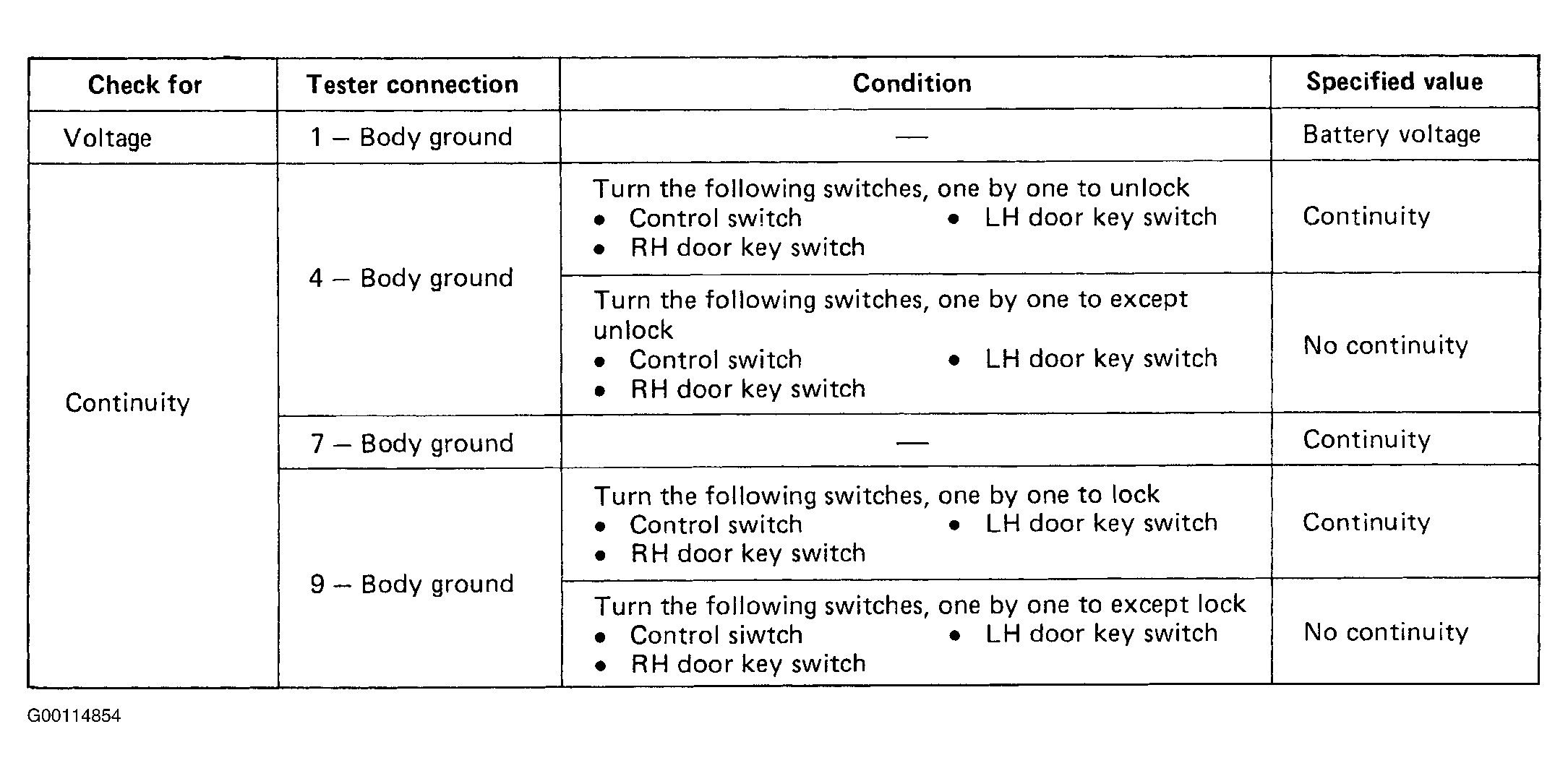

Fig 3: Checking Continuity (FX Series)
