Code 4 Cts & Circuit

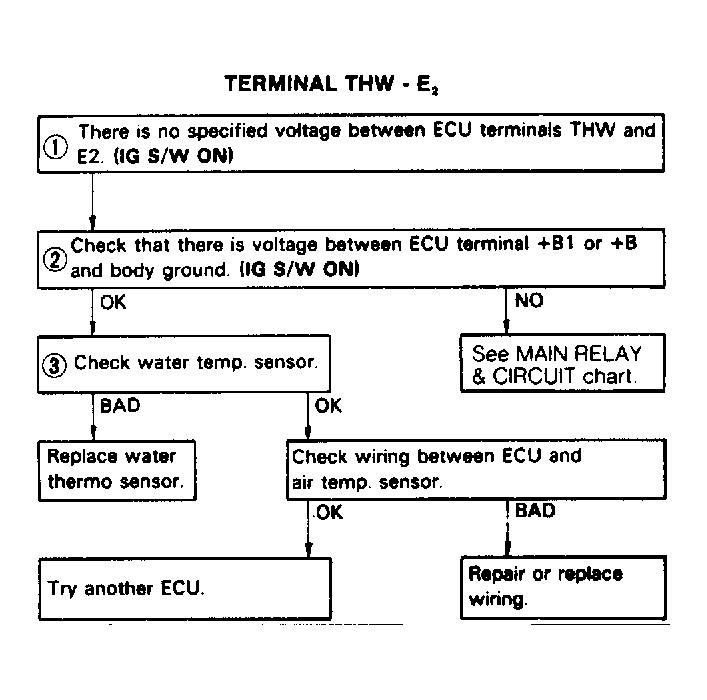

Fig 1: Terminal THW - E(2) (1 of 3)
G62041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Wiring Diagram (2 of 3)
G62042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

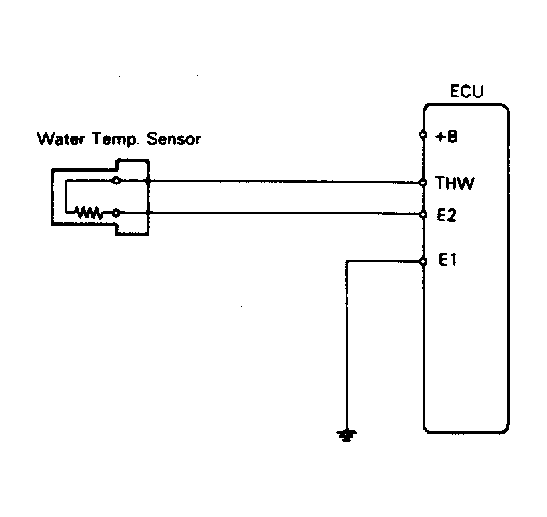

Fig 3: Wiring Diagram (3 of 3)
G62043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
