Injector Circuits Check

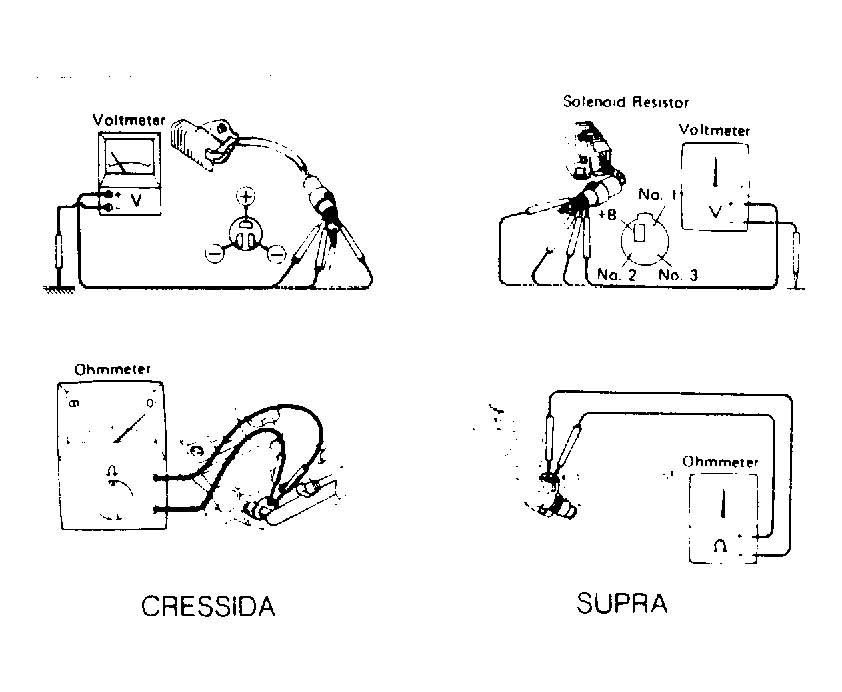

Fig 1: Terminals No. 10 & No. 20 - E01 & E02 (1 Of 3)
G61992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

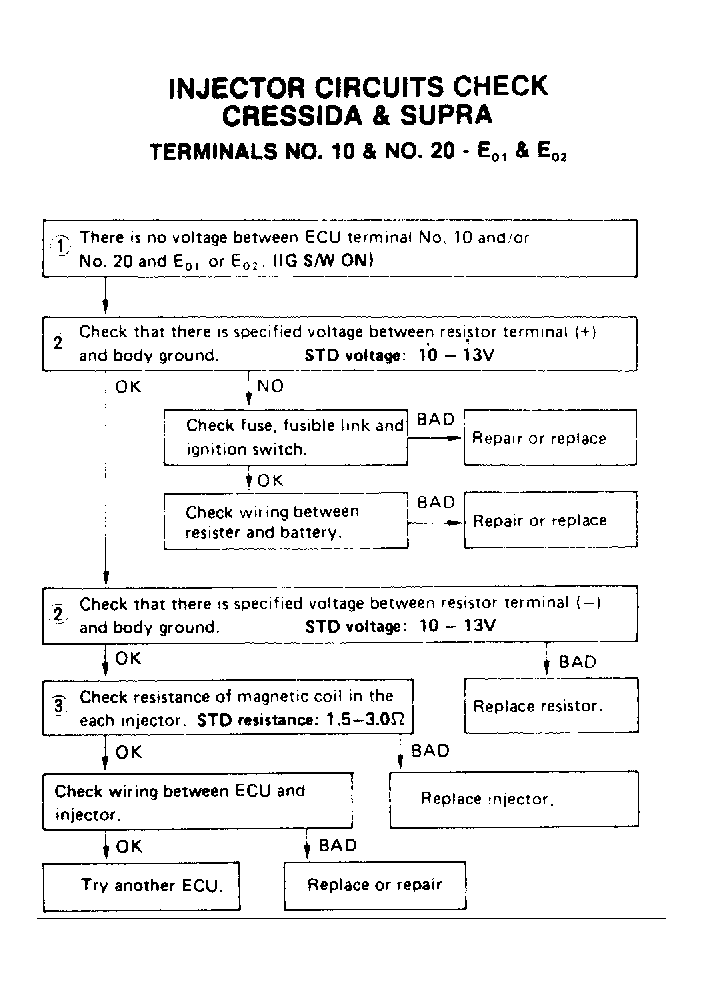

Fig 2: Wiring Diagram (2 Of 3)
G61991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

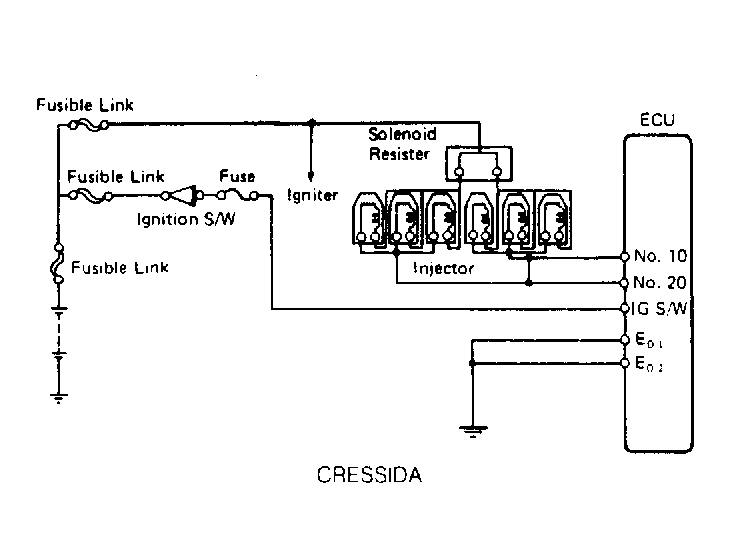

Fig 3: Wiring Diagram (3 Of 3)
G61990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
