Trouble Code 14 IGNITOR & Circuit

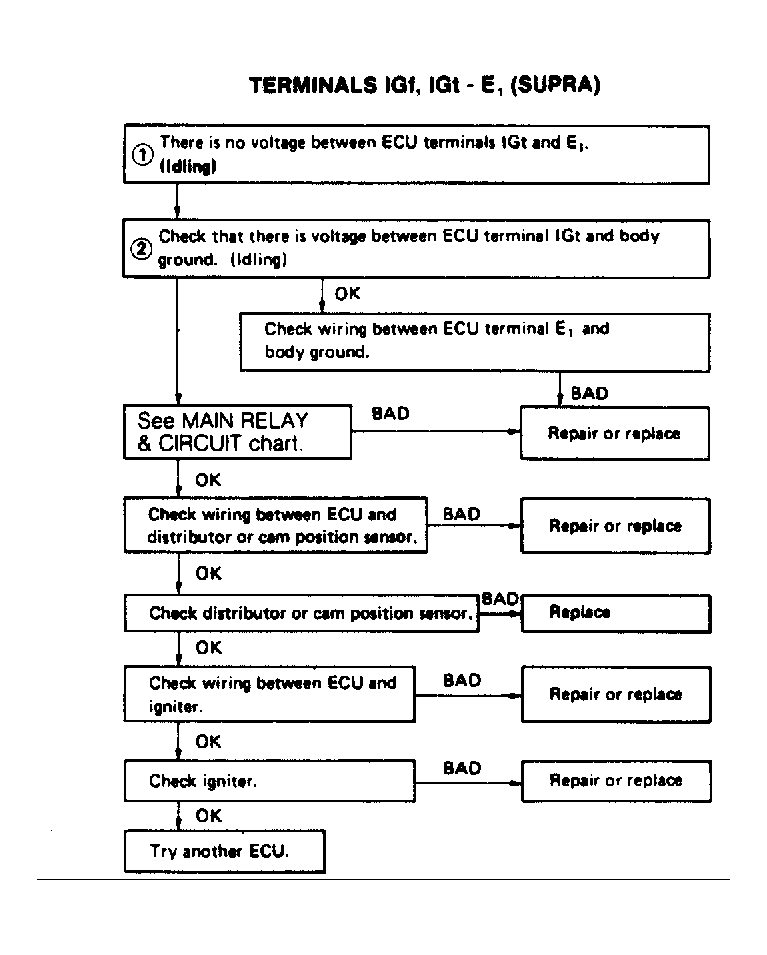

Fig 1: Terminals IGf, IGt - E1 (1 Of 2)
G62103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Wiring Diagram (2 Of 2)
G62104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
