Wiring Diagrams

Fig 1: Corolla FWD Computer Controlled Emission System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

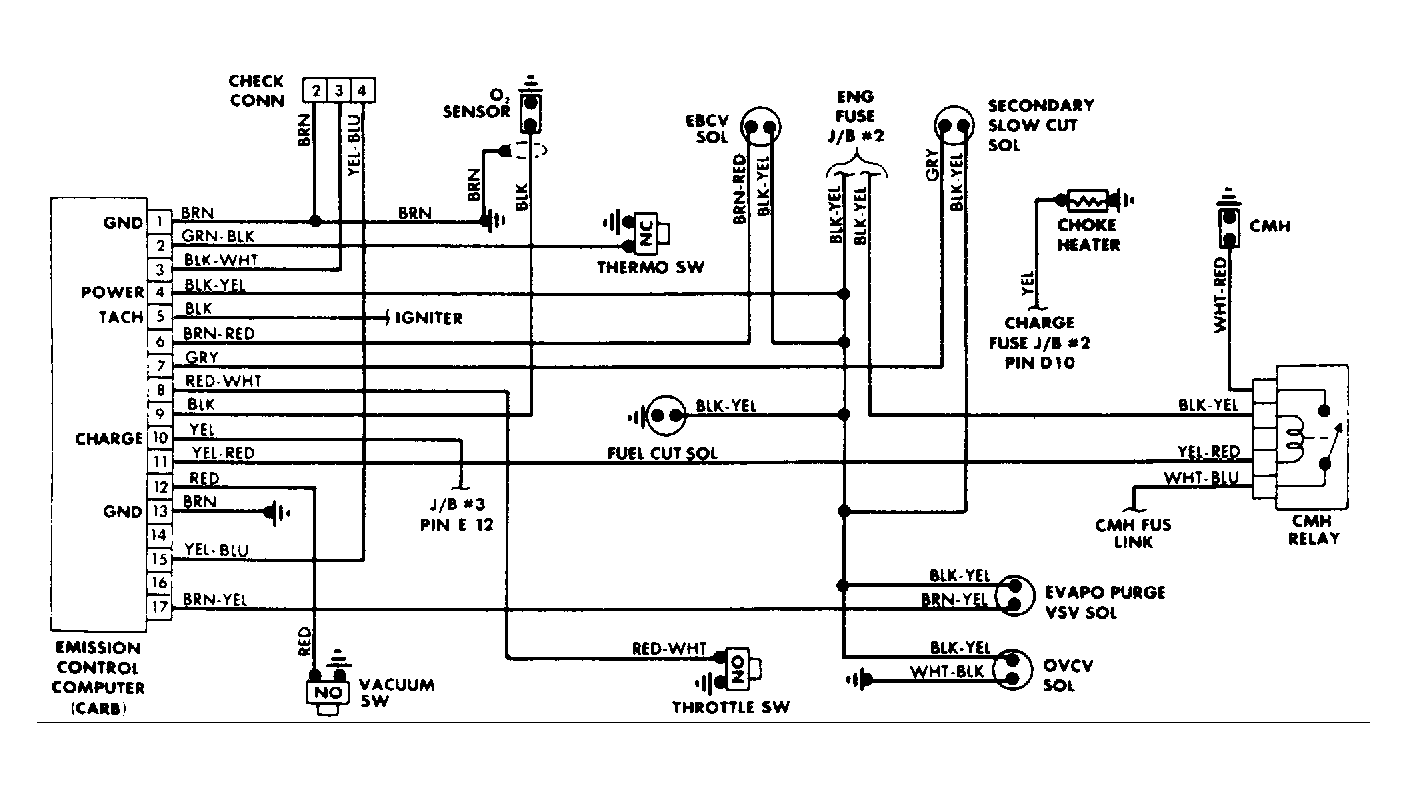

Fig 2: Corolla RWD Computer Controlled Emission System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

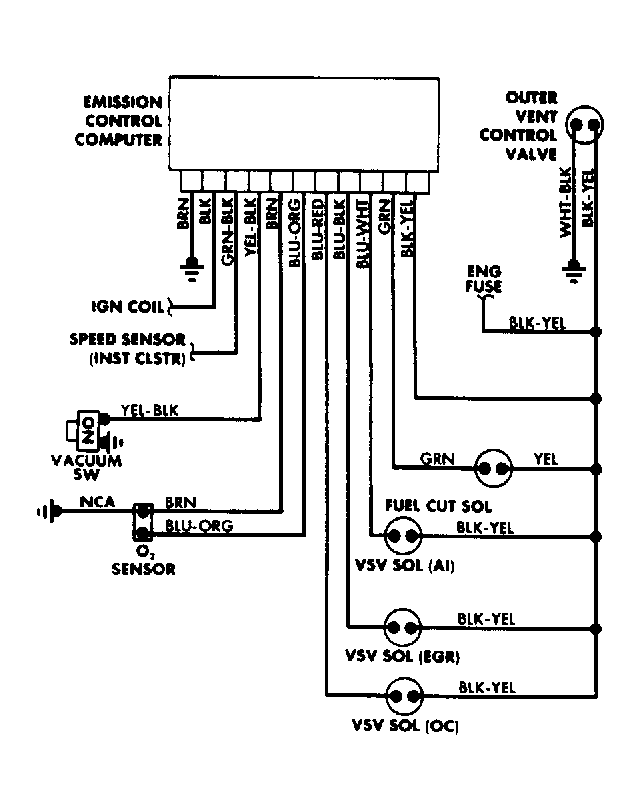

Fig 3: Land Cruiser Computer Controlled Emission System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

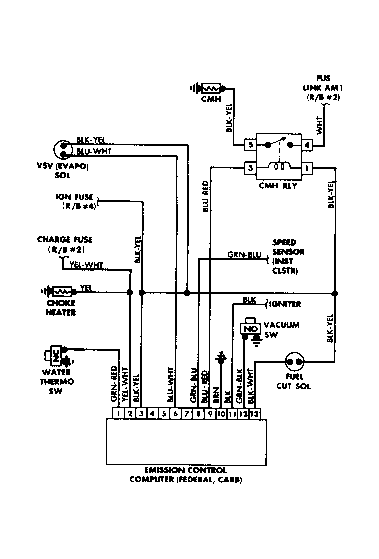

Fig 4: Pickup Computer Controlled Emission System (Fed.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

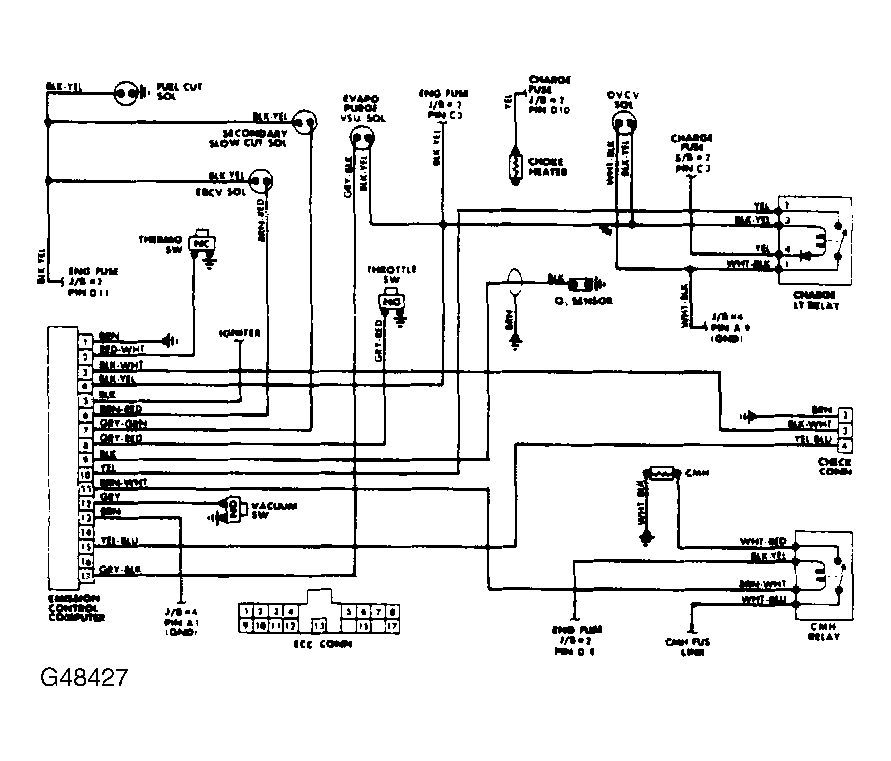

Fig 5: Pickup Computer Controlled Emission System (Calif.)

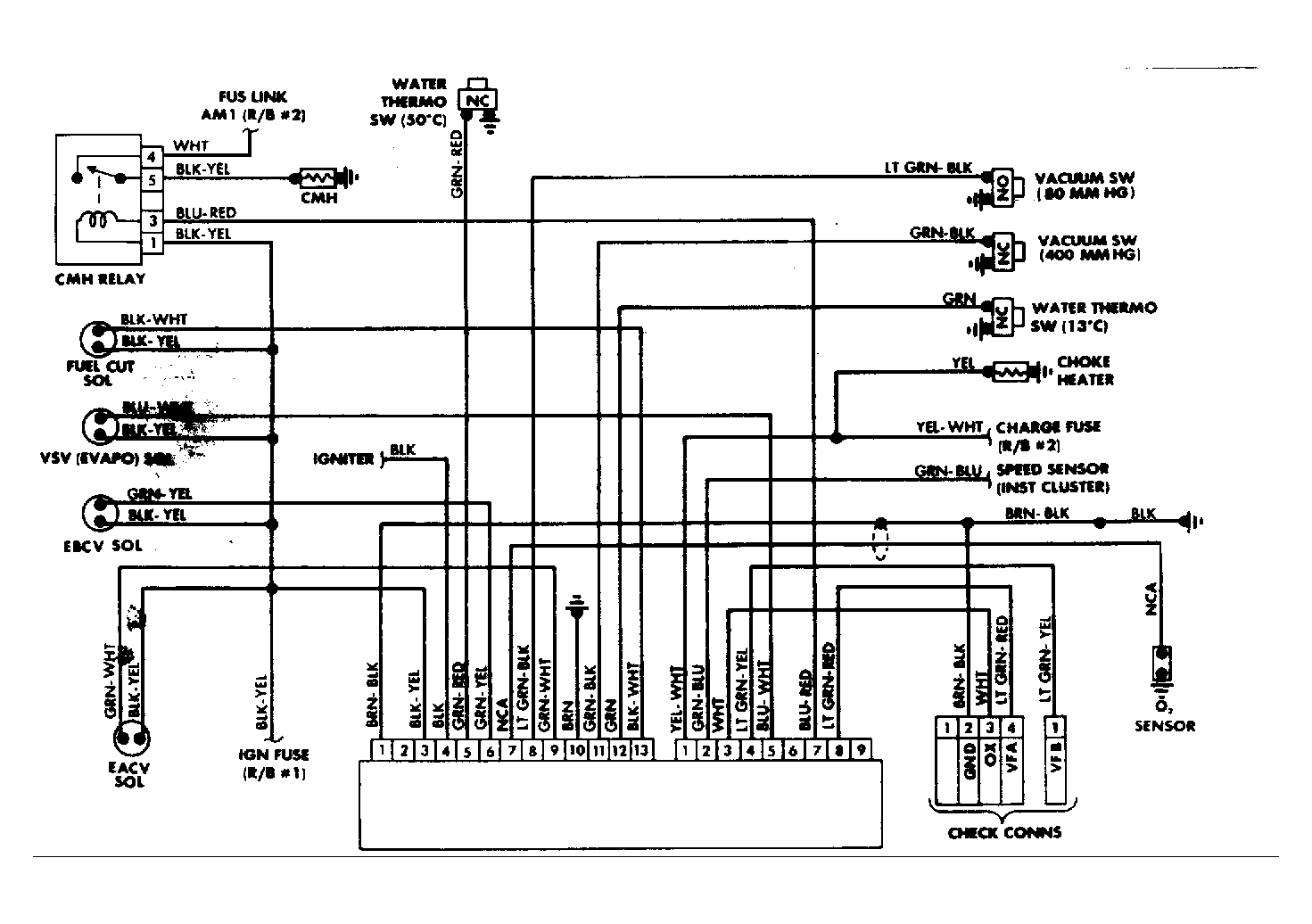

Fig 6: Tercel Computer Controlled Emission System

Fig 7: Tercel Wagon Computer Controlled Emission System
