Wheel Alignment Specifications
WHEEL ALIGNMENT SPECIFICATIONS
| Application | Specification | |||
|---|---|---|---|---|
| W/O Power Steering (Except Wagon) | ||||

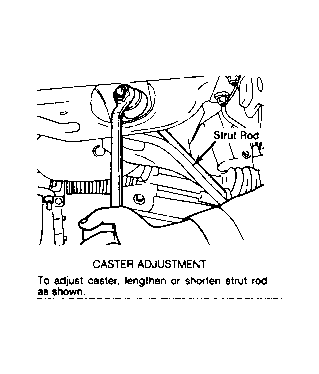

| Front (See Figure) | ||||
| Camber in Degrees | ||||
| Fraction | 0 +/- 3/4 | |||
| Decimal | 0 +/- .750 | |||
| Caster in Degrees | ||||
| Fraction | 1 +/- 3/4 | |||
| Decimal | 1.0 +/- .750 | |||
| Toe-In in Inches | ||||
| Fraction | 0 +/- 5/64 | |||
| Decimal | 0 +/- .083 | |||
| Toe-In in Degrees | ||||
| Fraction | 0 +/- 11/64 | |||
| Decimal | 0 +/- .166 | |||
| Toe-Out in Turns | ||||
| Inner | 21 1/2° | |||
| Outer | 20° | |||
| Steering Axis Inclination (SAI) | 11 1/2° | |||
| W/Power Steering (Except Wagon) | ||||
| Front | ||||
| Camber in Degrees | ||||
| Fraction | 0 +/- 3/4 | |||
| Decimal | 0 +/- .750 | |||
| Caster in Degrees | ||||
| Fraction | 2 1/2 +/- 3/4 | |||
| Decimal | 2.500 +/- .750 | |||
| Toe-In in Inches | ||||
| Fraction | 0 +/- 5/64 | |||
| Decimal | 0 +/- .083 | |||
| Toe-In in Degrees | ||||
| Fraction | 0 +/- 11/64 | |||
| Decimal | 0 +/- .166 | |||
| Toe-Out in Turns | ||||
| Inner | 21 1/2° | |||
| Outer | 20° | |||
| Steering Axis Inclination (SAI) | 11 1/2° | |||
| 2WD (W/O Power Steering) | ||||
| Front (See Figure) | ||||
| Camber in Degrees | ||||
| Fraction | 0 +/- 3/4 | |||
| Decimal | 0 +/- .750 | |||
| Caster in Degrees | ||||
| Fraction | 3/4 +/- 1/2 | |||
| Decimal | .750 +/- .500 | |||
| Toe-In in Inches | ||||
| Fraction | -3/64 +/- 3/64 | |||
| Decimal | -.042 +/- .042 | |||
| Toe-In in Degrees | ||||
| Fraction | -5/64 +/- 5/64 | |||
| Decimal | -.083 +/- .083 | |||
| Toe-Out in Turns | ||||
| Inner | 21 1/2° | |||
| Outer | 20 ° | |||
| Steering Axis Inclination (SAI) | 11 3/4° | |||
| Wagon (2WD) W/Power Steering | ||||
| Front | ||||
| Camber in Degrees | ||||
| Fraction | 0 +/- 3/4 | |||
| Decimal | 0 +/- .750 | |||
| Caster in Degrees | ||||
| Fraction | 2 1/4 +/- 1/2 | |||
| Decimal | 2.250 +/- .500 | |||
| Toe-In in Inches | ||||
| Fraction | 0 +/- 5/64 | |||
| Decimal | 0 +/- .083 | |||
| Toe-In in Degrees | ||||
| Fraction | 0 +/- 11/64 | |||
| Decimal | 0 +/- .166 | |||
| Toe-Out in Turns | ||||
| Inner | 21 1/8° | |||
| Outer | 20° | |||
| Steering Axis Inclination (SAI) | 11 3/4° | |||
| Rear | ||||
| Camber in Degrees | ||||
| Fraction | 1/4 +/- 1/2 | |||
| Decimal | .250 +/- .500 | |||
| Wagon (4WD) | ||||
| Front (See Figure) | ||||
| Camber in Degrees | ||||
| Fraction | 37/64 +/- 3/4 | |||
| Decimal | .583 +/- .750 | |||
| Caster in Degrees | ||||
| Fraction | 2 27/64 +/- 1/2 | |||
| Decimal | 2.416 +/- .500 | |||
| Toe-In in Inches | ||||
| Fraction | -3/64 +/- 3/64 | |||
| Decimal | -.042 +/- .042 | |||
| Toe-In in Degrees | ||||
| Fraction | -5/64 +/- 5/64 | |||
| Decimal | -.083 +/- .083 | |||
| Toe-Out in Turns | ||||
| Inner | 21 1/4° | |||
| Outer | 20° | |||
| Steering Axis Inclination (SAI) | 11 7/8° | |||
