Pedal Specifications: Notes

PEDAL HEIGHT SPECIFICATIONS

Application In. (mm)
Tercel 7.130-7.440 (181.0-189.0)

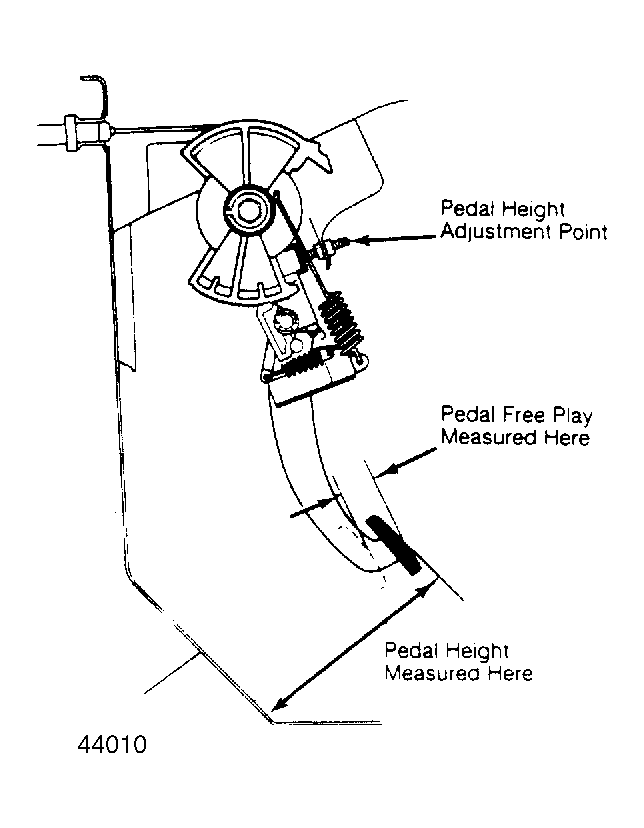

Fig 1: Pedal Height & Free Play Measurement Points
G44010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
