Trouble Code 7 TPS Sensor & Circuit

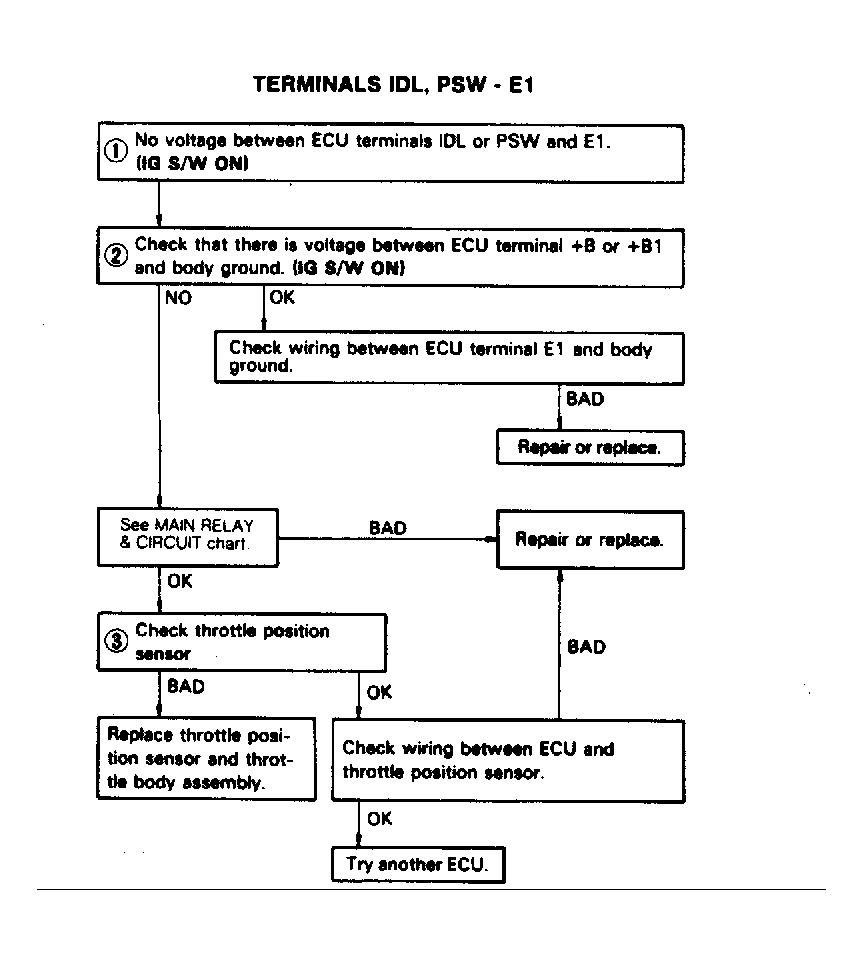

Fig 1: Terminals IDL - E1 Part 1 of 3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

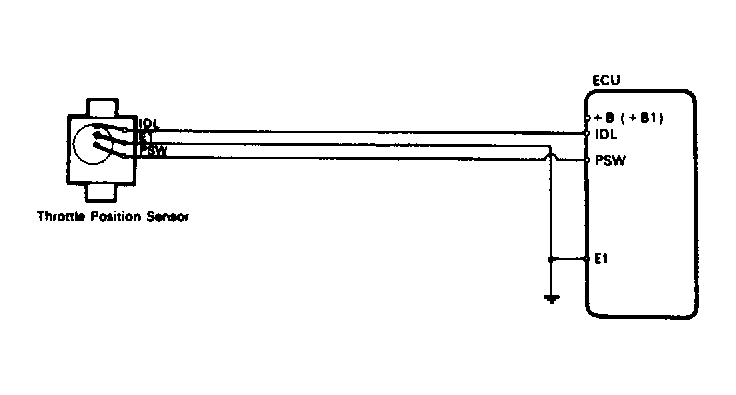

Fig 2: Terminals IDL - E1 Part 2 of 3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

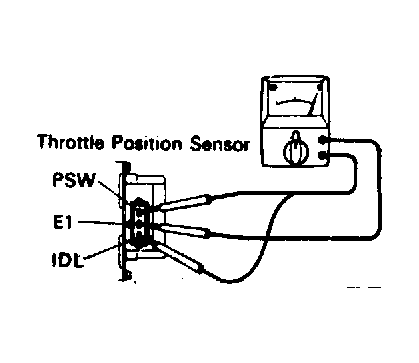

Fig 3: Terminals IDL - E1 Part 3 of 3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
