Trouble Code 4 Coolant Temperature Sensor & Circuit

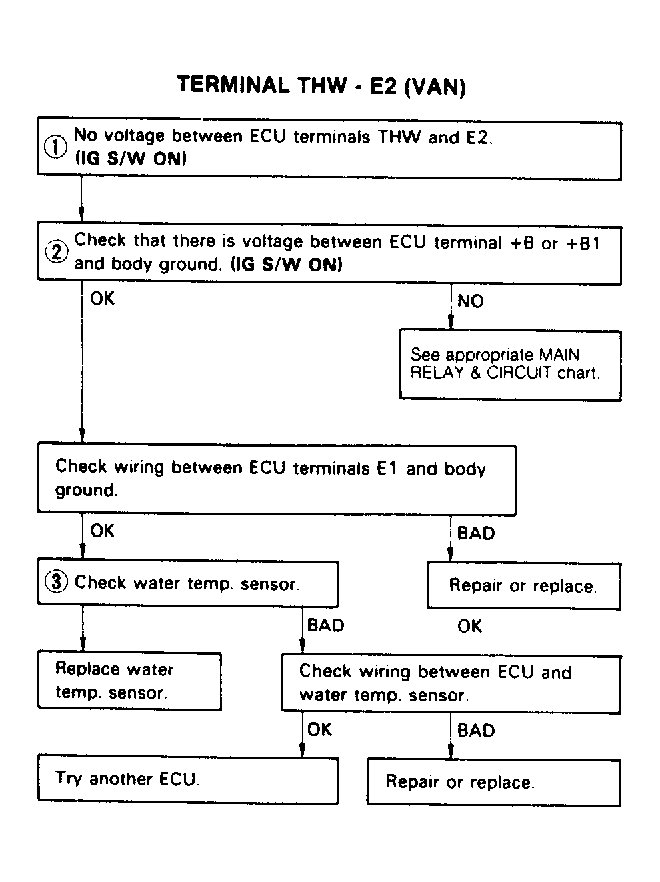

Fig 1: Terminal THW - E2 Part 1 of 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

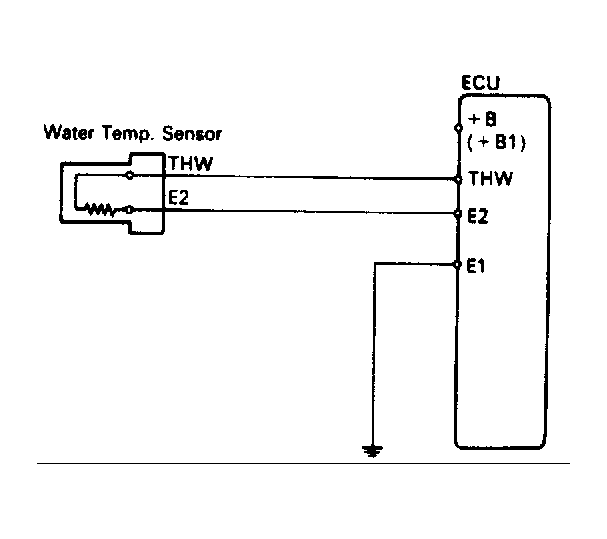

Fig 2: Terminal THW - E2 Part 2 of 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

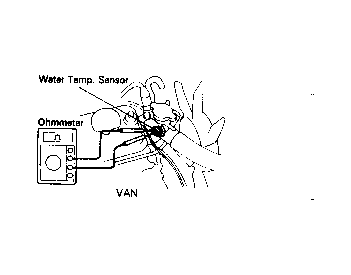

Fig 3: Terminal THW - E2 Part 3 of 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
