Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Circuit Breakers

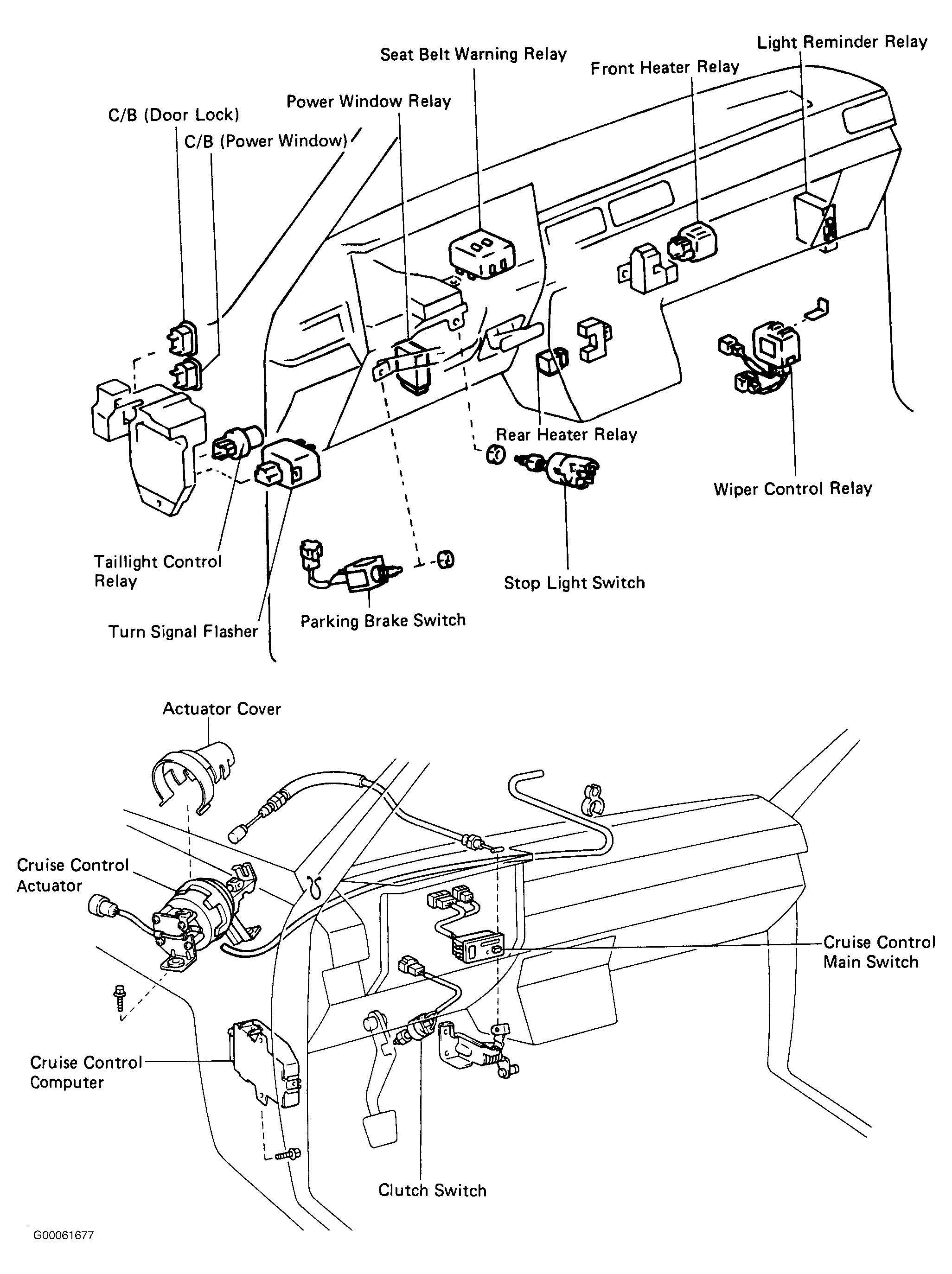

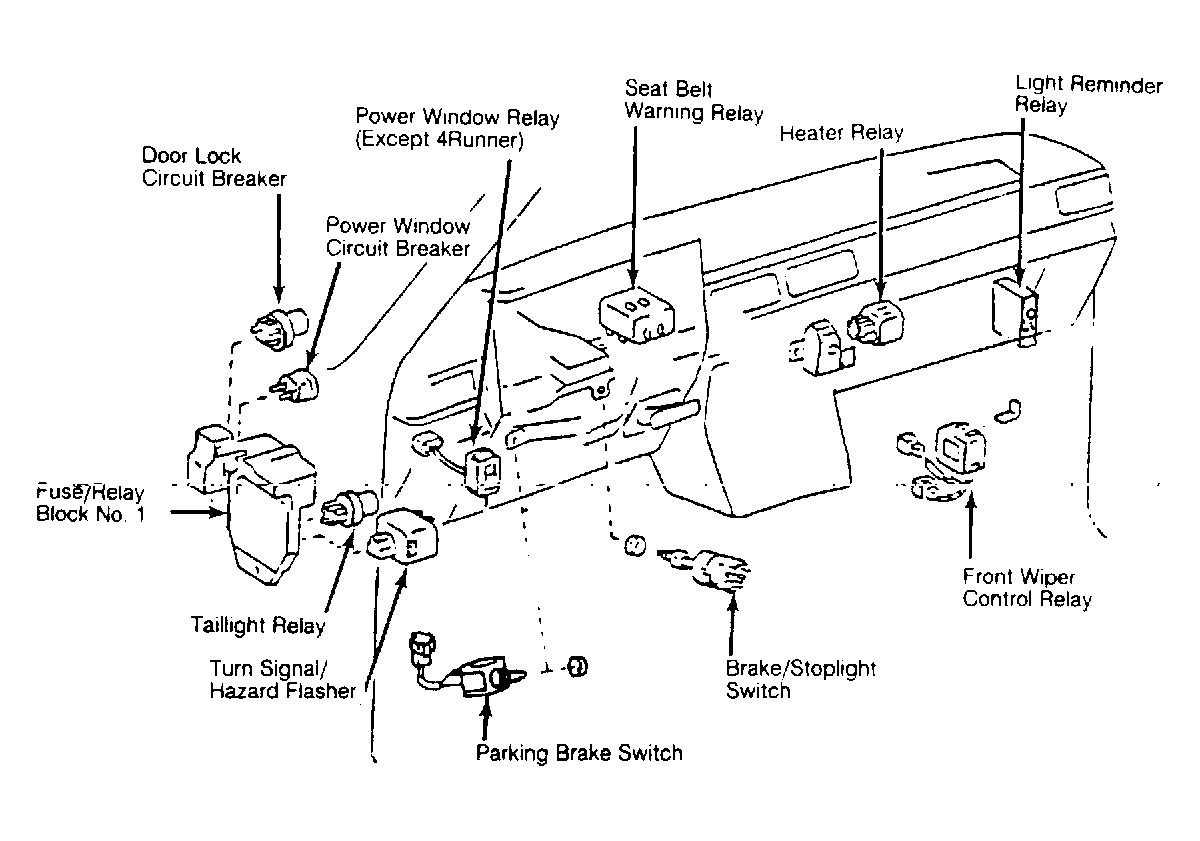

Door Lock In fuse/relay block No. 1. See Figure Or Figure .
Power Window In fuse/relay block No. 1. See Figure Or Figure .
EFI Fusible Links (30 Amp) On fuse/relay block No. 2.
Fuse/Relay Block No. 1 Under left side of dash. See Figure Or Figure .
Fuse/Relay Block No. 2 On front right corner of engine compartment.
Fuse Block No. 3 Behind glove box.
