No. 13 Test, Stop Light Circuit Test

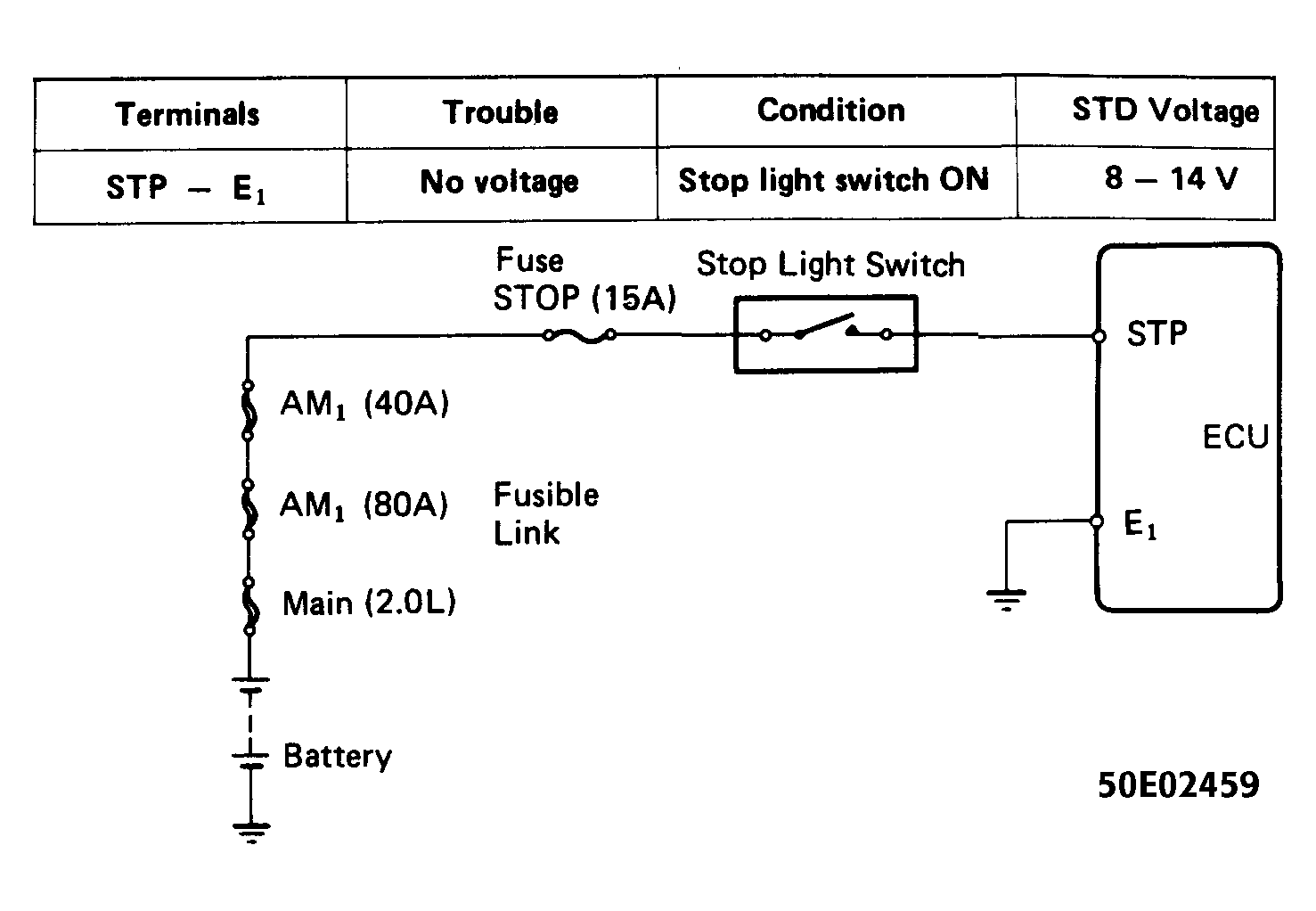

Fig 1: No. 13 Test Schematic, Stop Light Circuit Test (4-Cyl.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

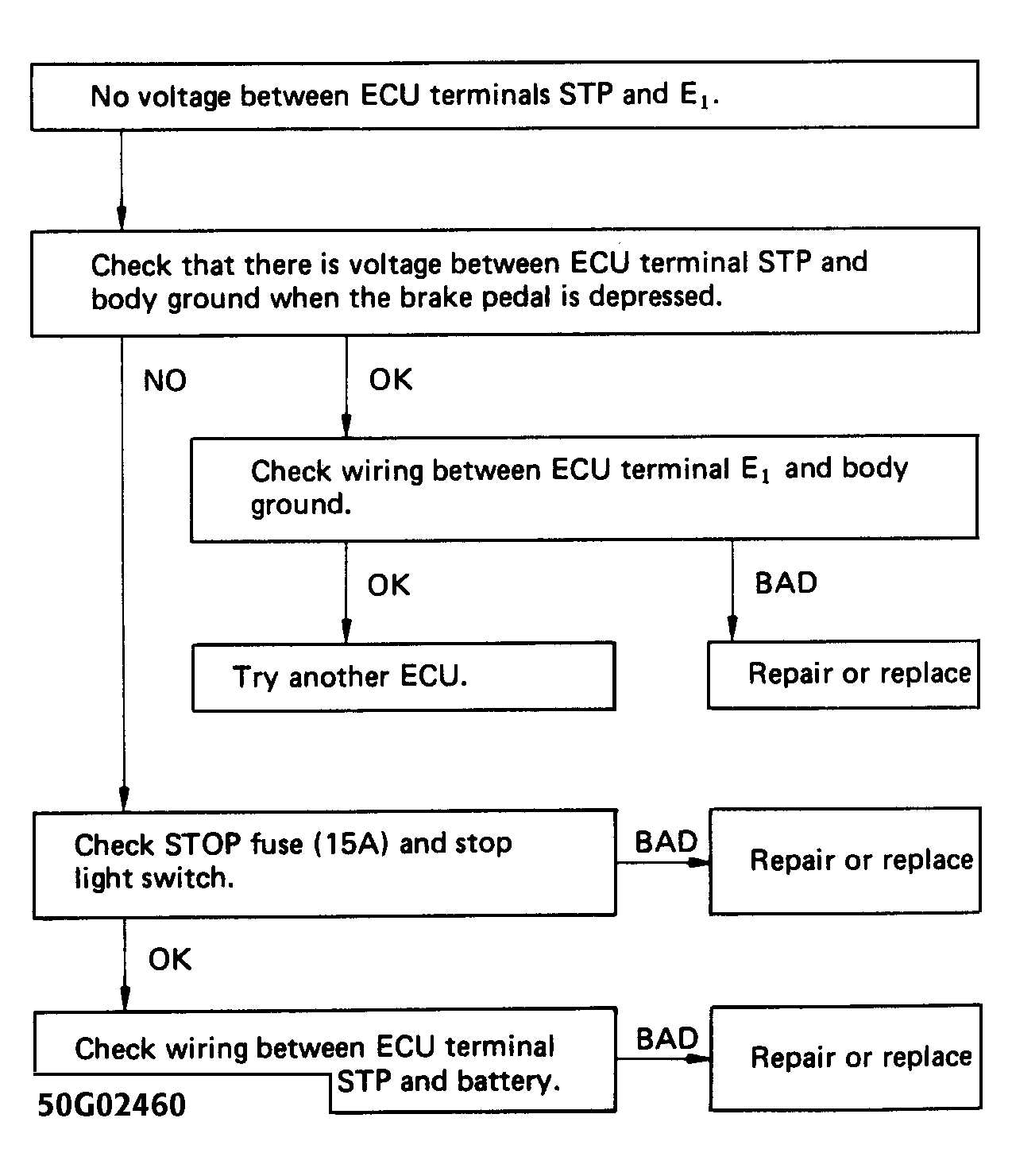

Fig 2: No. 13 Test Flow Chart, Stop Light Circuit Test (4-Cyl.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

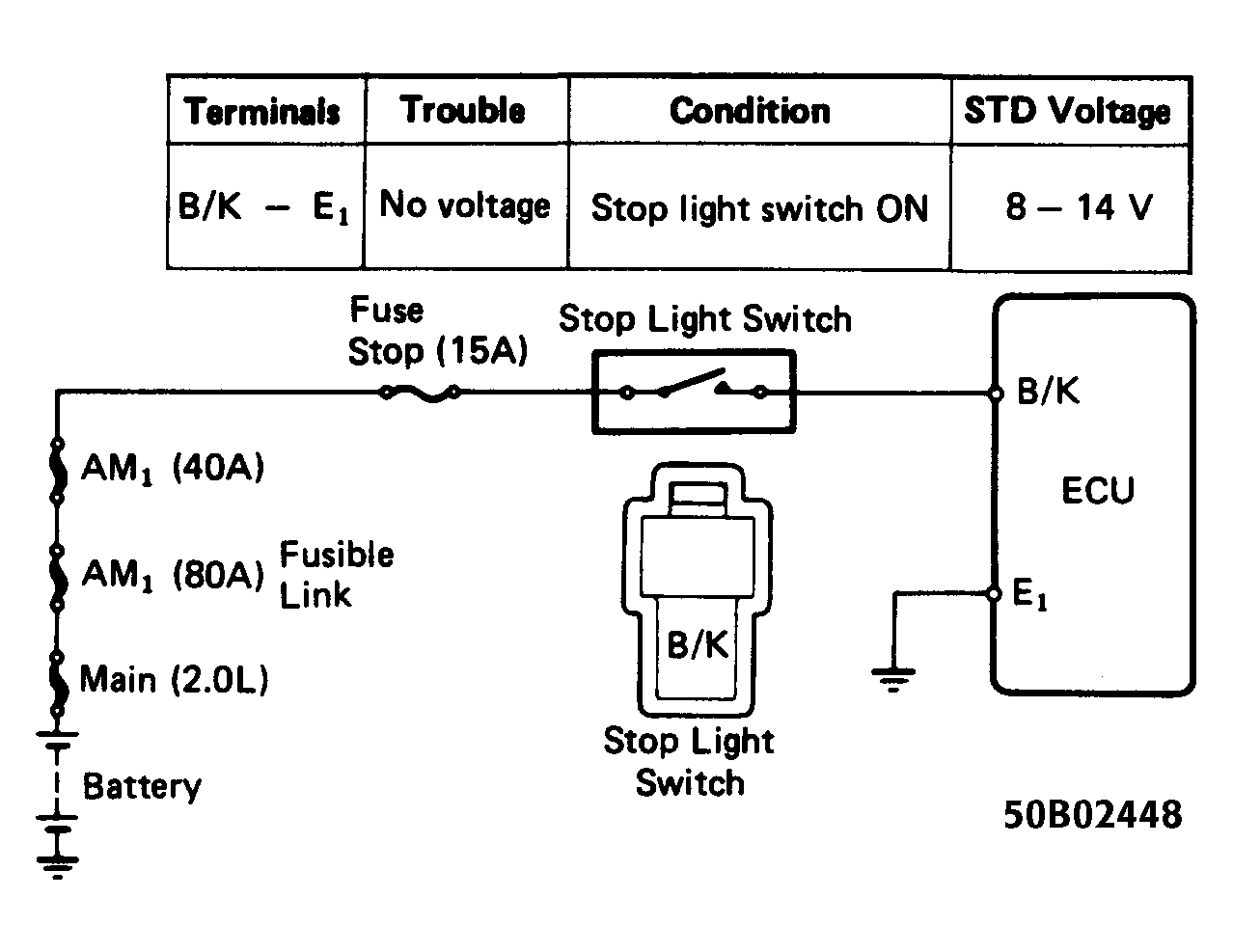

Fig 3: No. 13 Test, Stop Light Circuit Test (V6)

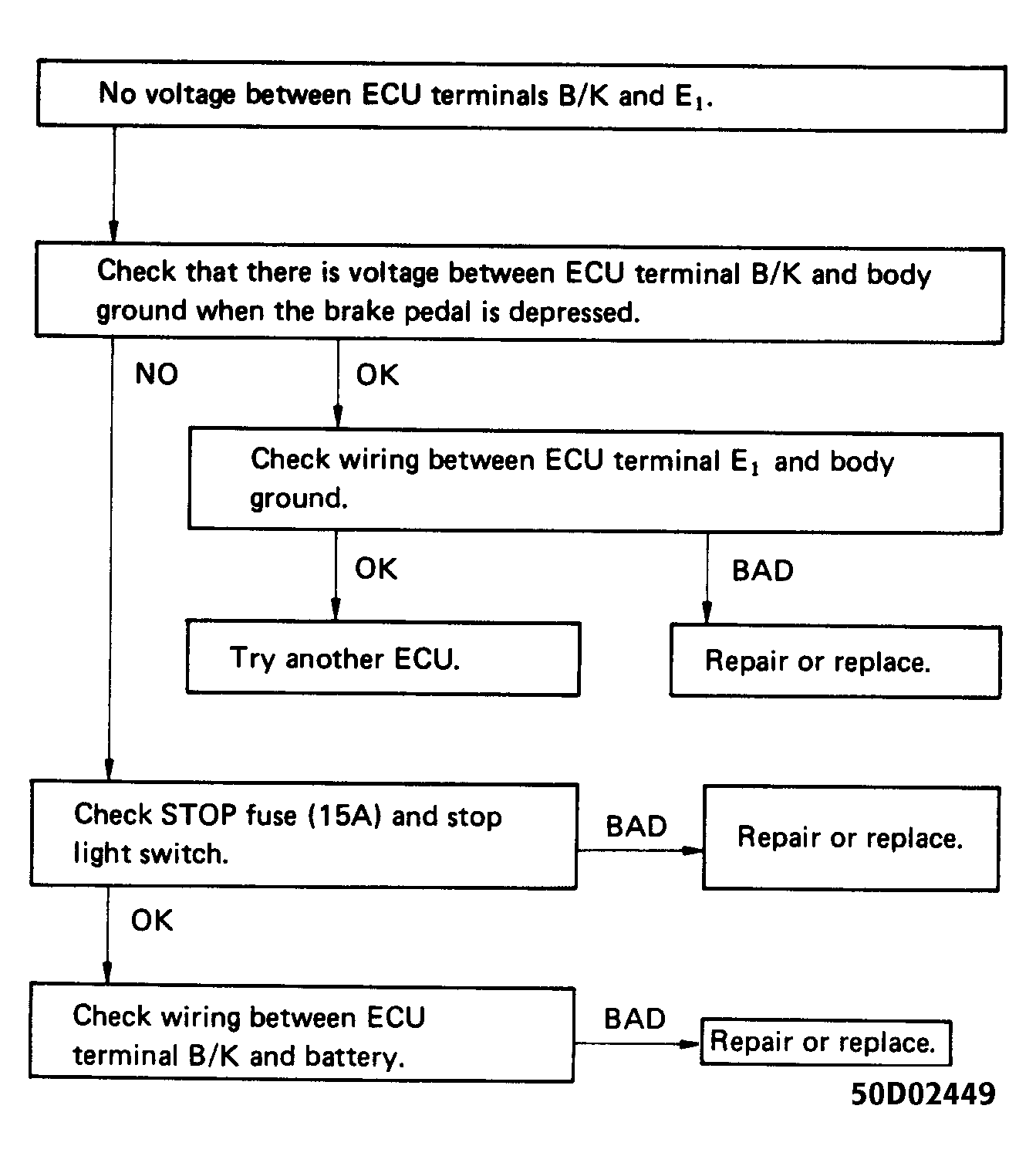

Fig 4: No. 13 Test, Stop Light Circuit Test (V6)
