No. 6 Test, Code 31, 32 (Code 2 On Turbo), Airflow Meter Signal

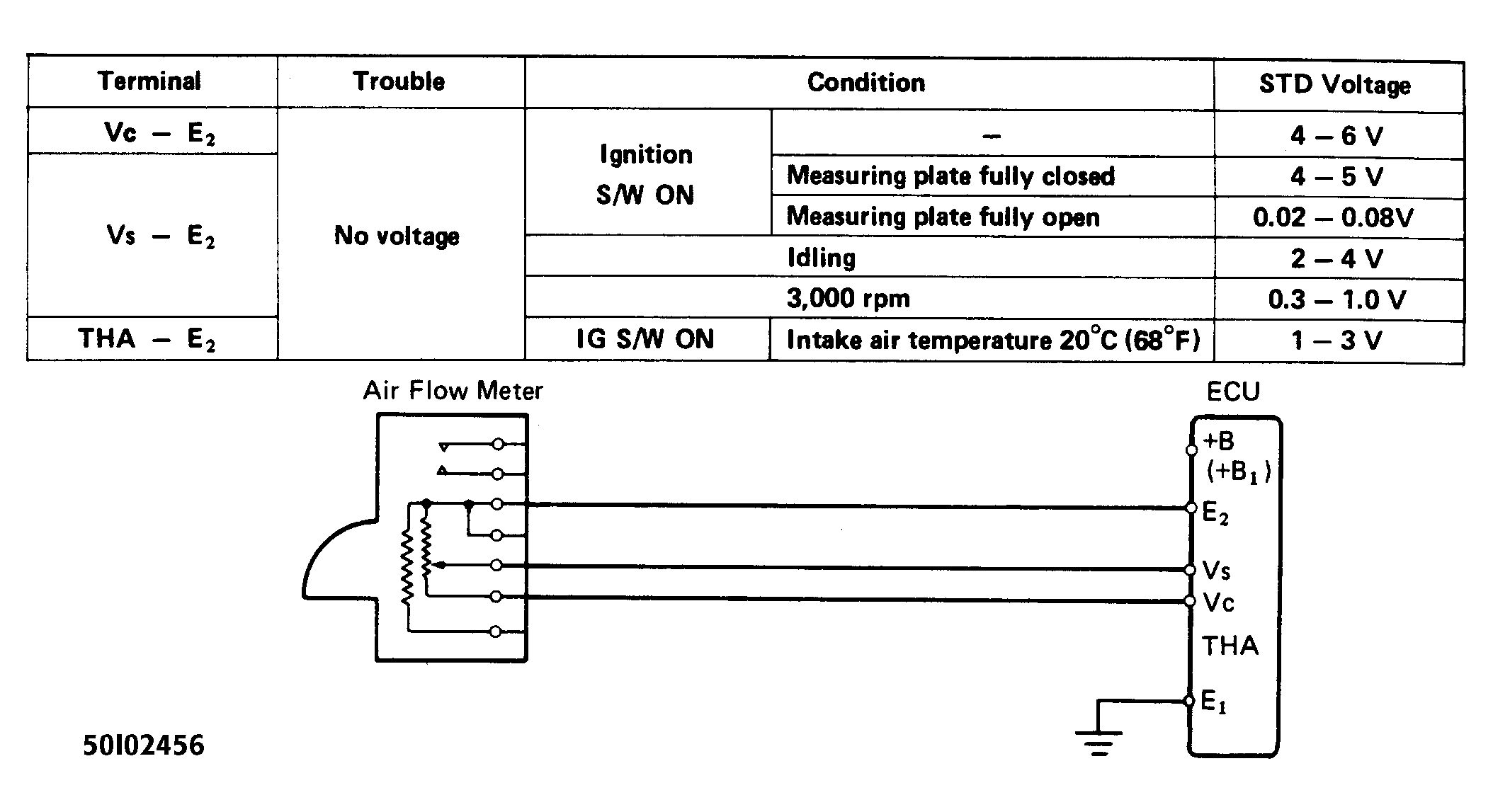

Fig 1: No. 6 Test Schematic (4-Cyl.), Code 31, 32 (Code 2 on Turbo), Airflow Meter Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

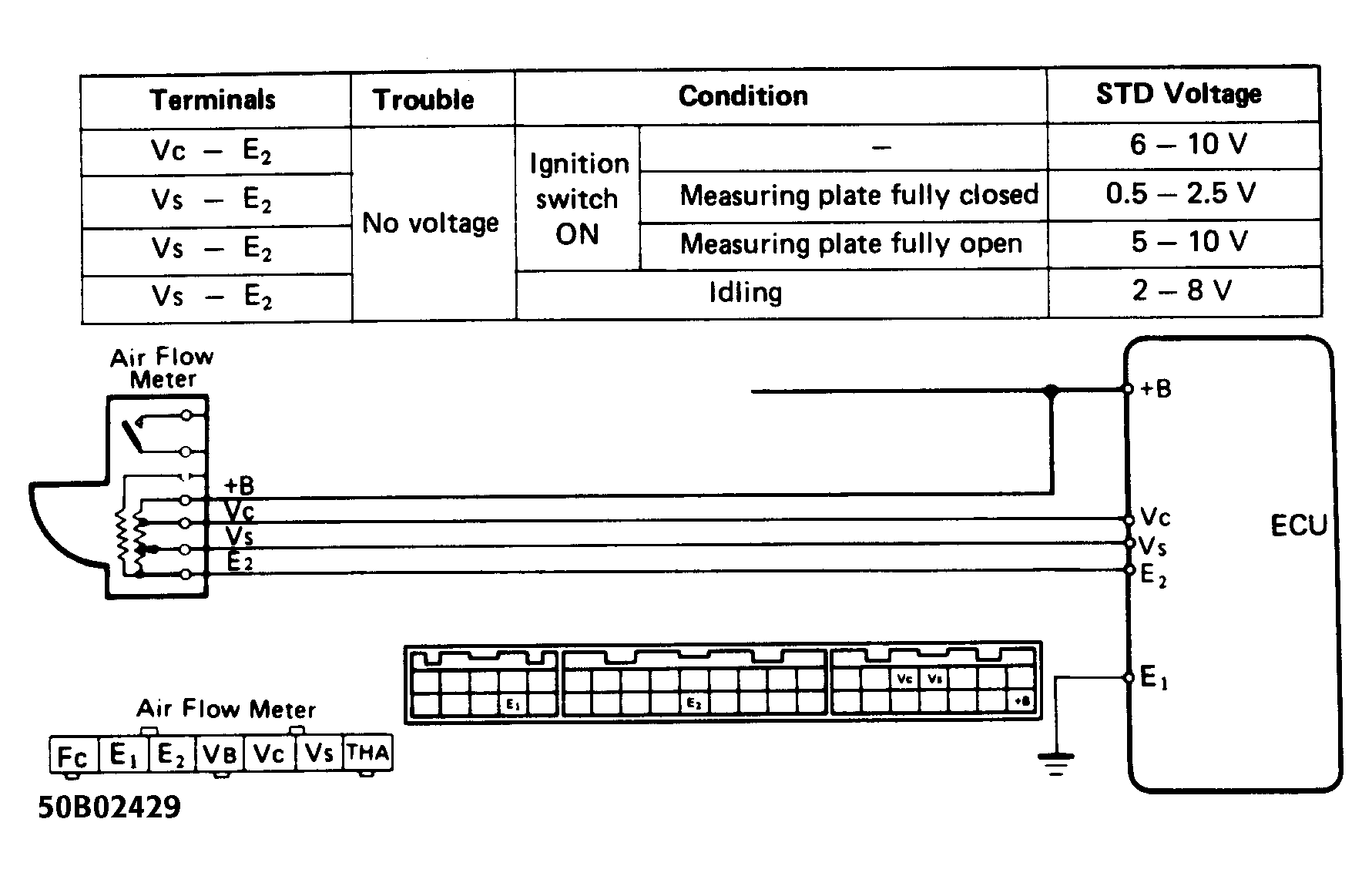

Fig 2: No. 6 Test Schematic (V6), Code 31, 32 (Code 2 on Turbo), Airflow Meter Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

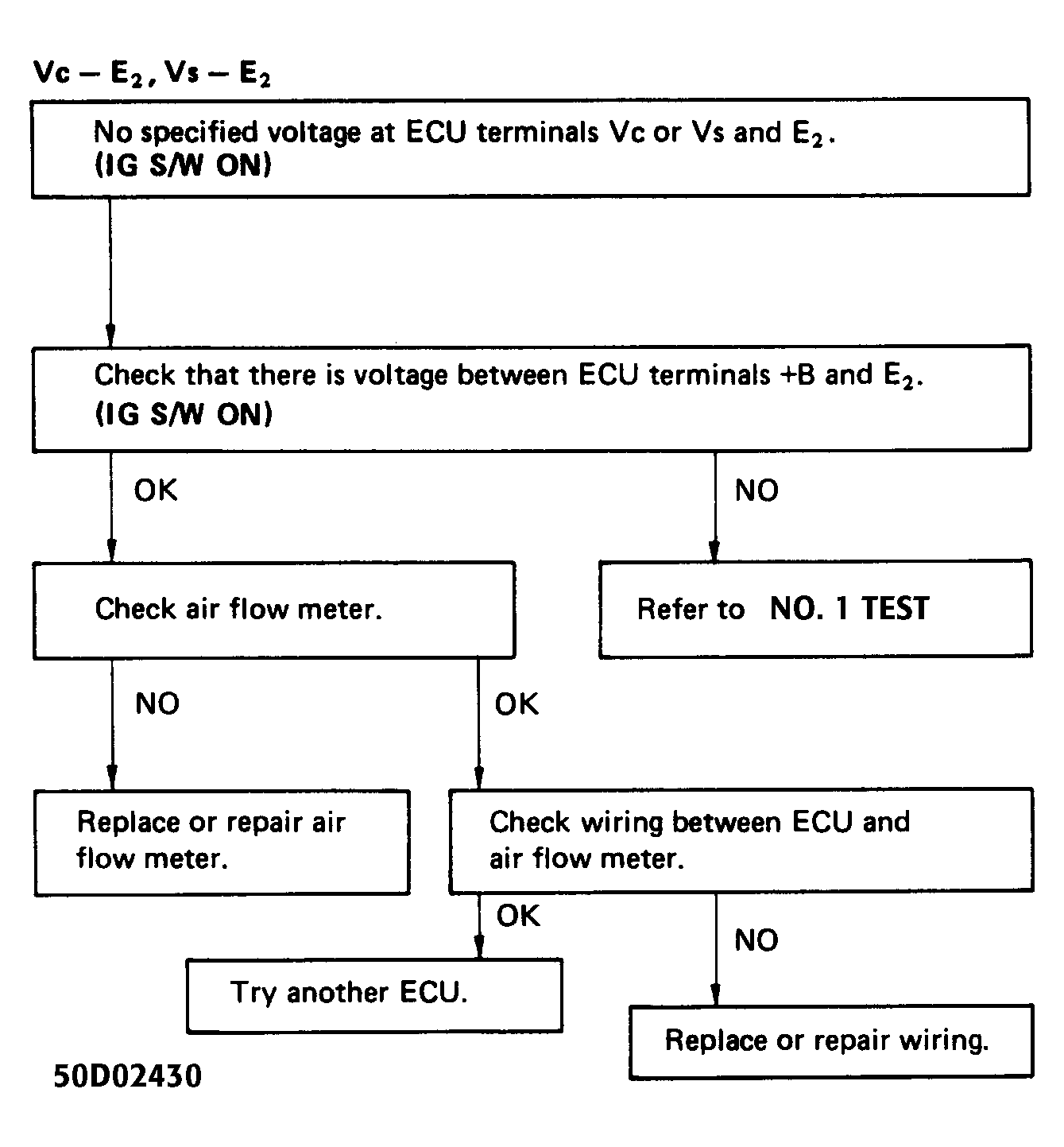

Fig 3: No. 6 Test Flow Chart (4-Cyl.), Code 31, 32 (Code 2 on Turbo), Airflow Meter Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: For airflow terminal identification see 4-Cyl. diagram in Fig 1.
