No 13 Test, "Check Engine" Light Circuit

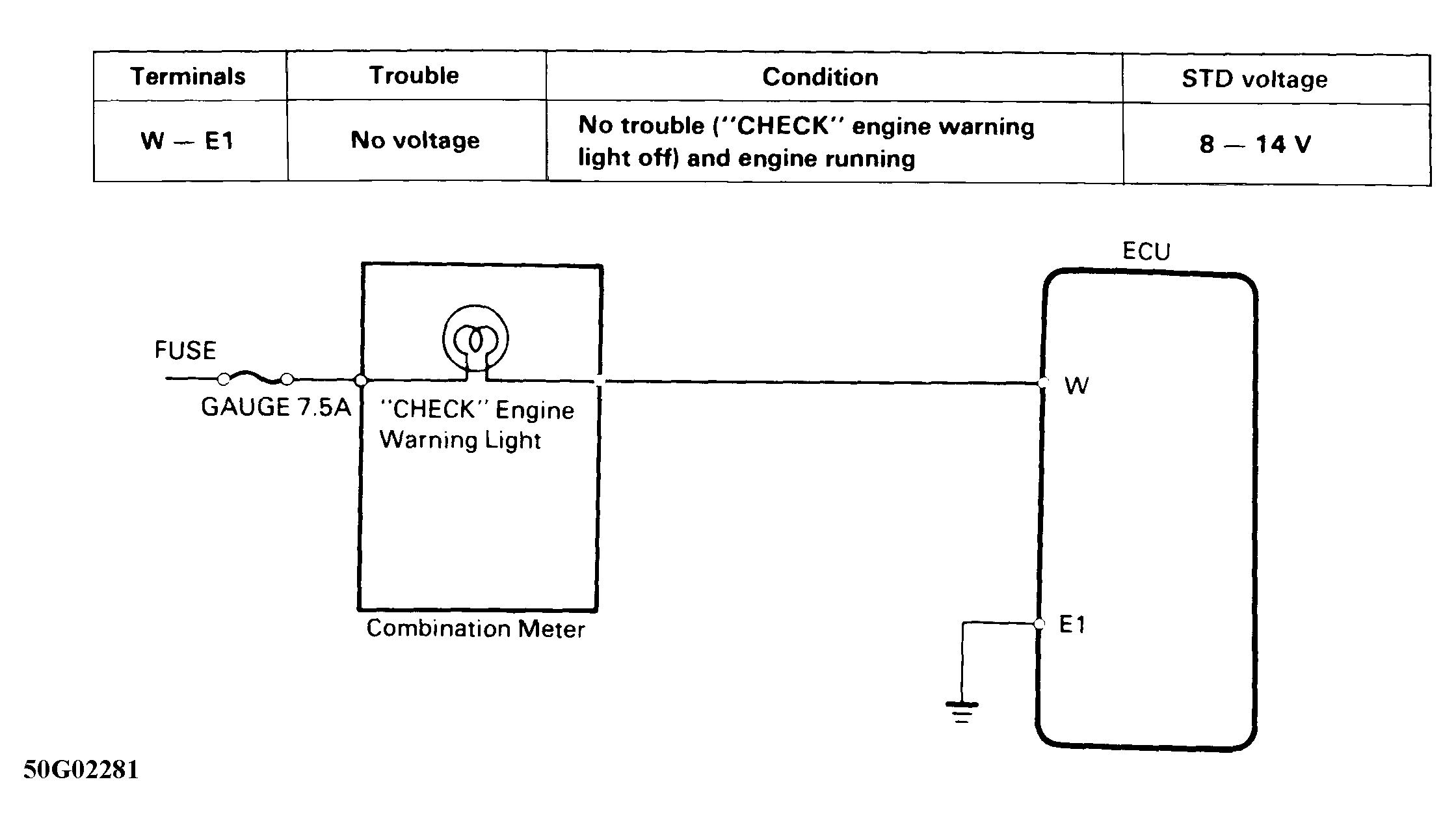

Fig 1: Test 13 Schematic, "CHECK ENGINE" Light Circuit
G50G02281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

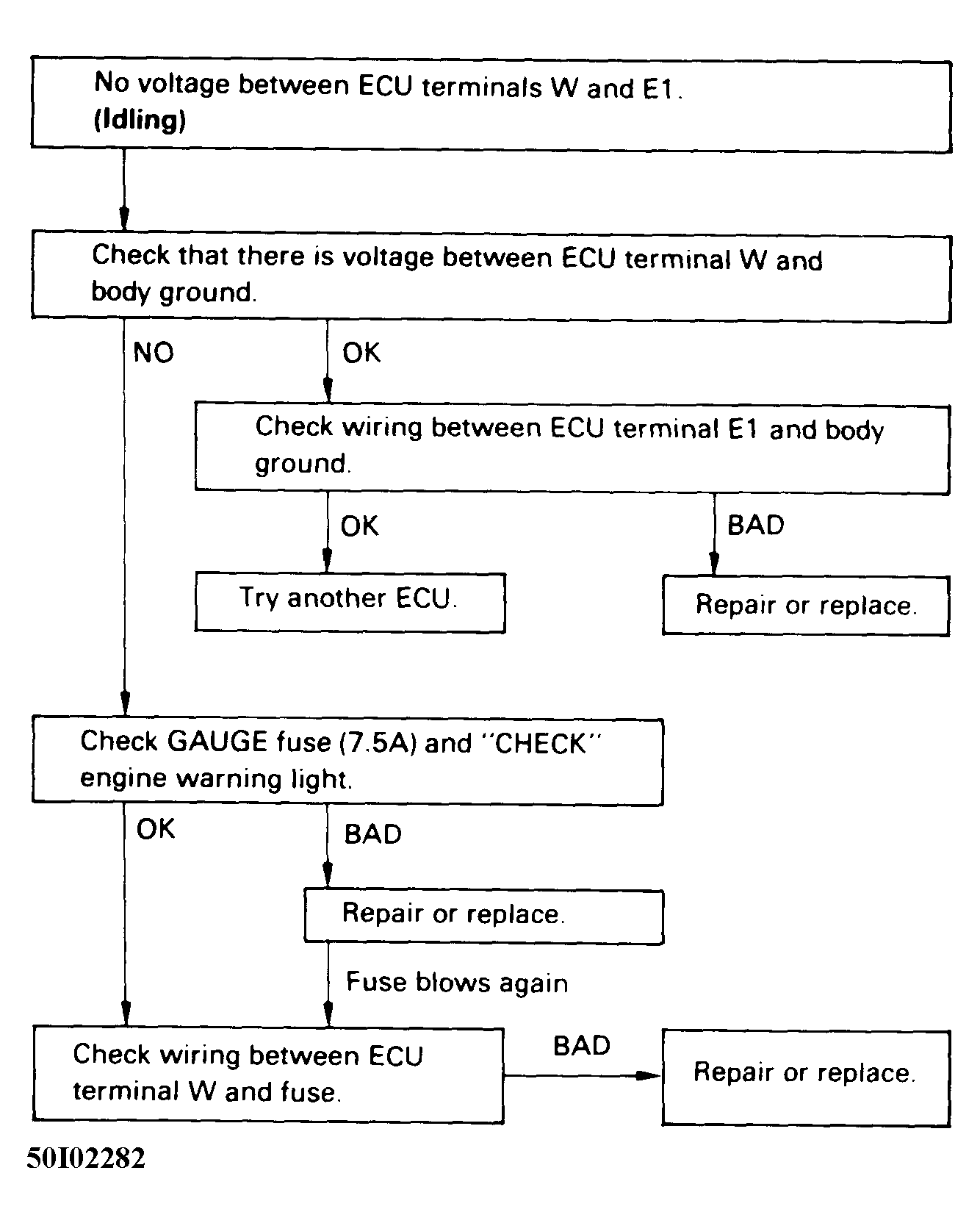

Fig 2: Test 13 Flow Chart, "CHECK ENGINE" Light Circuit
G50I02282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
