No. 10 Test, EGR System Circuit (CALIF.)

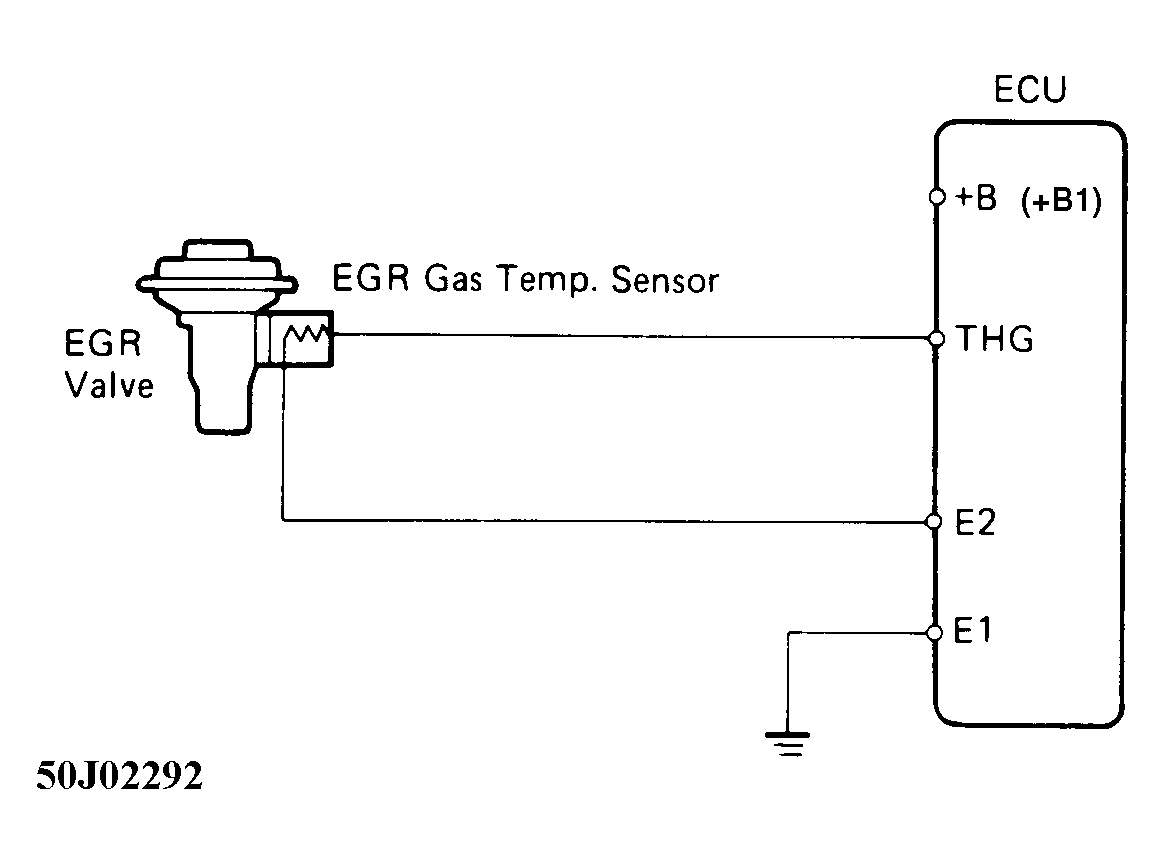

Fig 1: Test 10, Schematic, EGR System Circuit (Calif.)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

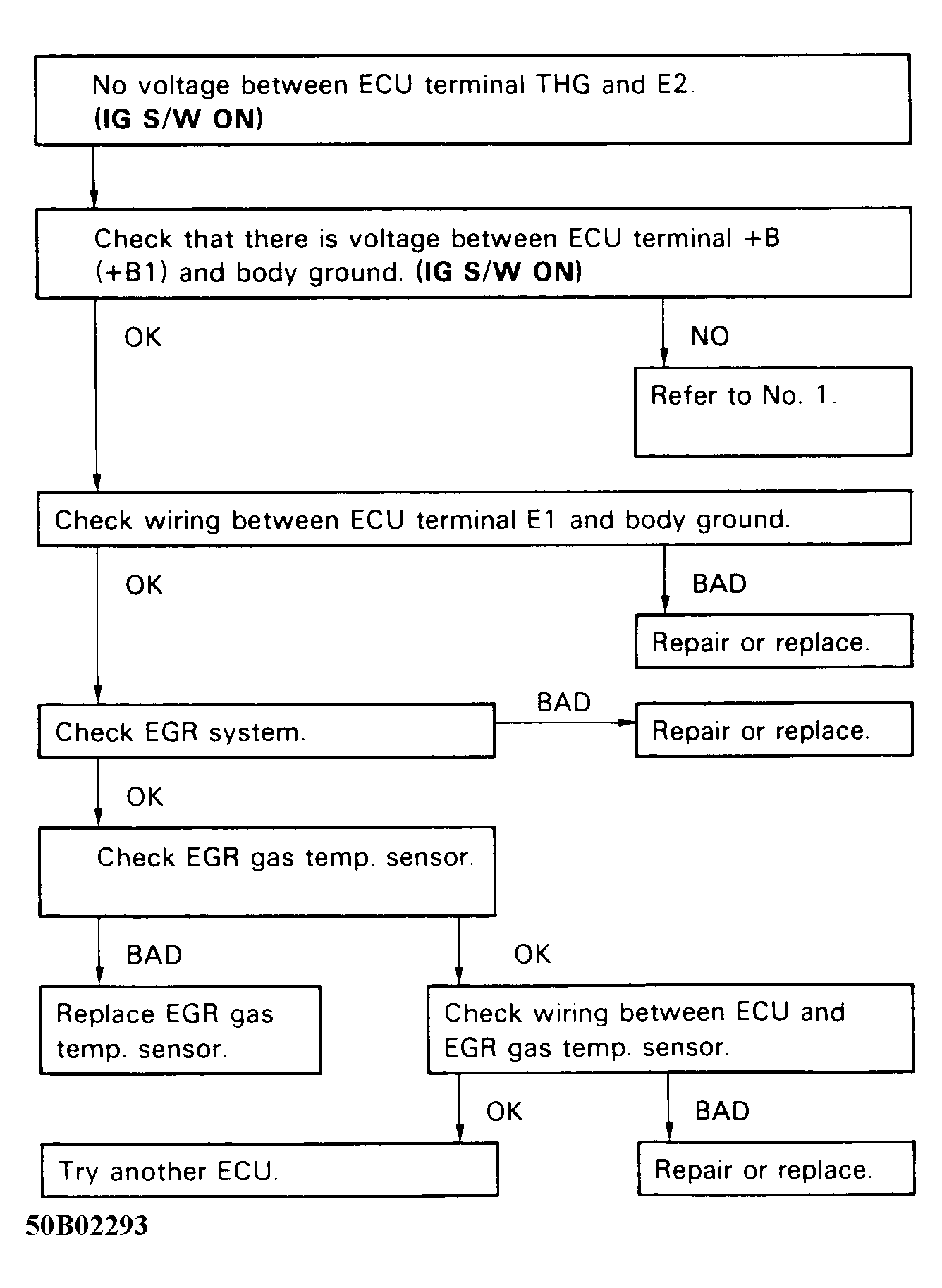

Fig 2: Test 10, Flow Chart, EGR System Circuit (Calif.)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

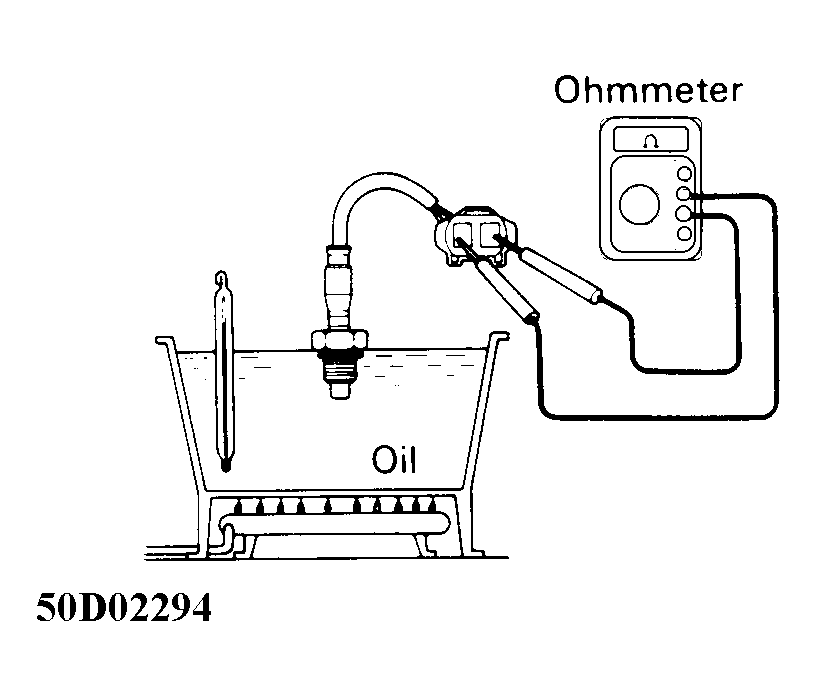

Fig 3: Test 10, EGR Gas Temp. Sens. Test (Calif.)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
