No. 11 Test, Ecu Power Source (4-CYL.)

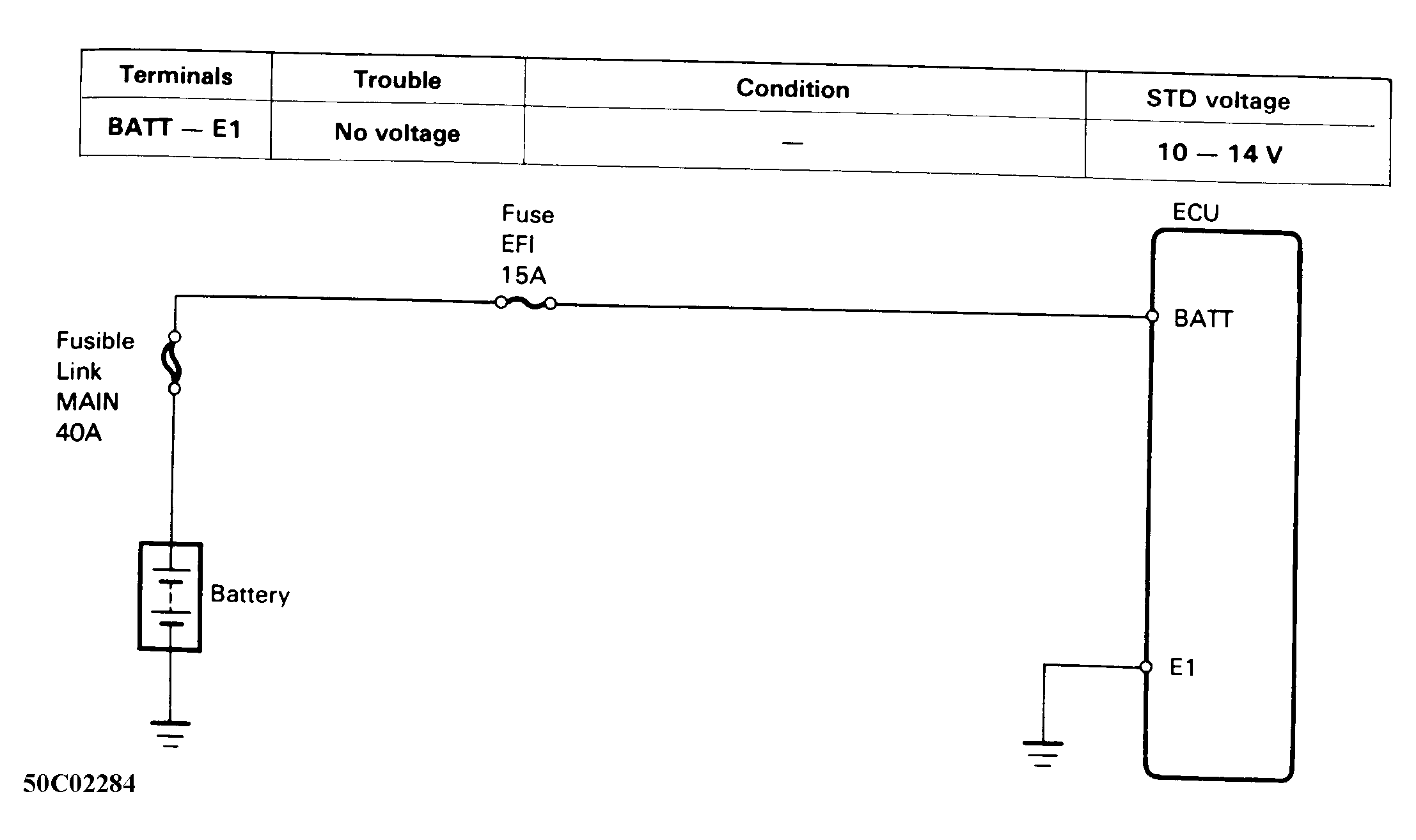

Fig 1: Test 11 Schematic, ECU Power Source (4-Cyl.)
G50C02284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

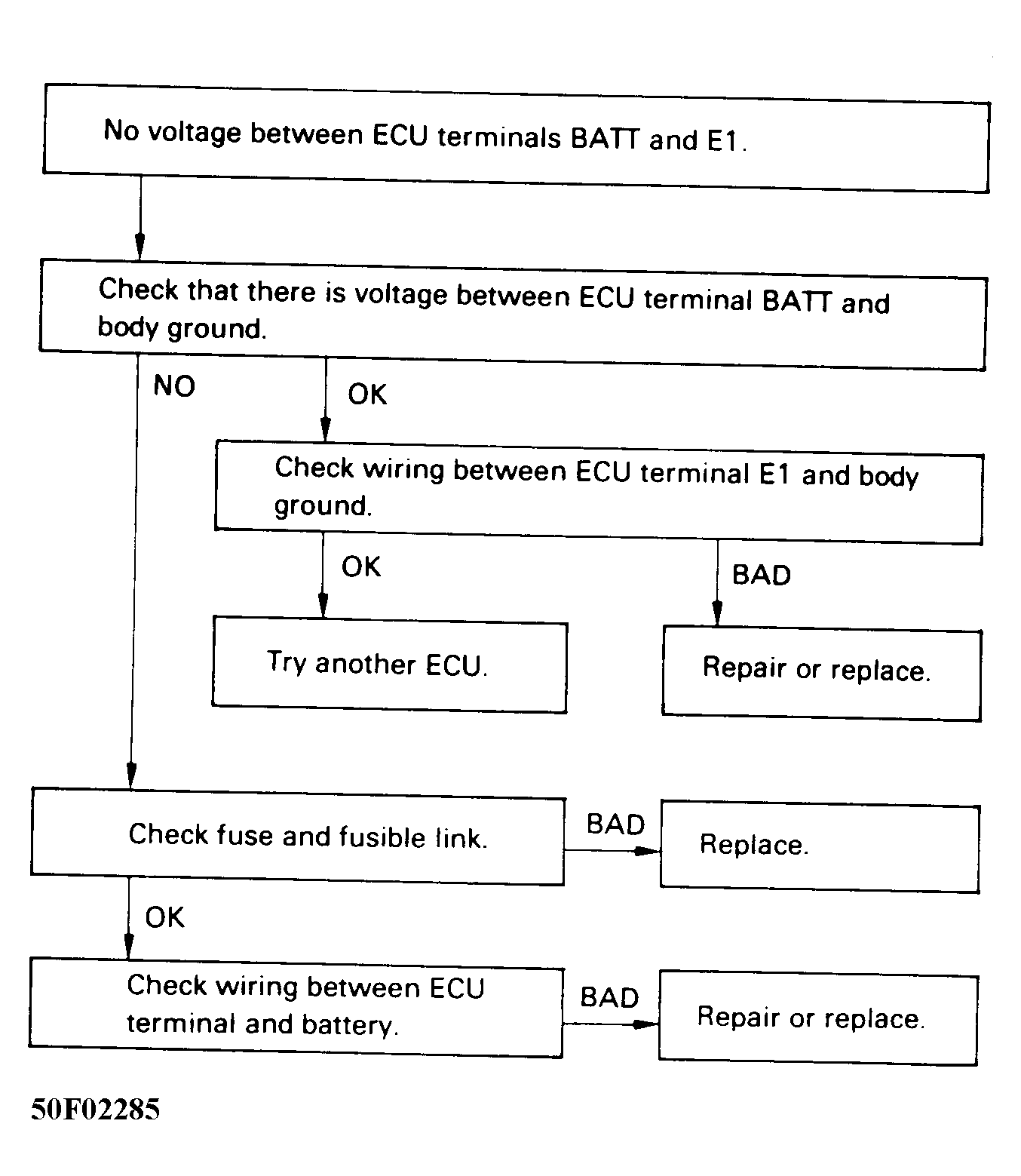

Fig 2: Test 11 Flow Chart, ECU Power Source (4-Cyl.)
G50F02285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
